Documentation for Standards for Technology in Automotive Retail
Definition Type: Element
Name: OperationReference
Namespace: http://www.starstandard.org/STAR/5
Type: star:OperationReferenceOAGIType
Containing Schema: Components.xsd
Abstract
Documentation:
Is a reference to an associated work-in-process operation.

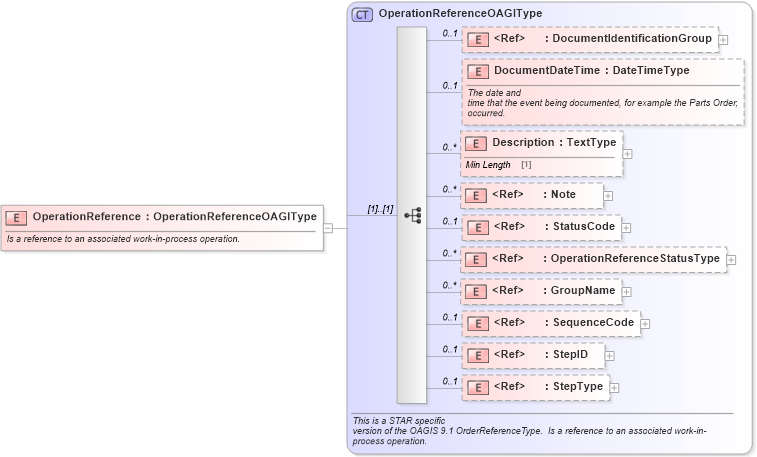

Collapse XSD Schema Diagram:
Drilldown into StepType in schema fields_xsd1 Drilldown into StepID in schema fields_xsd1 Drilldown into SequenceCode in schema fields_xsd1 Drilldown into GroupName in schema fields_xsd1 Drilldown into OperationReferenceStatusType in schema components_xsd Drilldown into StatusCode in schema fields_xsd1 Drilldown into Note in schema fields_xsd1 Drilldown into Description in schema components_xsd Drilldown into DocumentDateTime in schema components_xsd Drilldown into DocumentIdentificationGroup in schema components_xsd Drilldown into OperationReferenceOAGIType in schema components_xsdXSD Diagram of OperationReference in schema components_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:element name="OperationReference" type="OperationReferenceOAGIType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9">
                Is a reference to an associated work-in-process operation.
            </xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DocumentIdentificationGroup star:DocumentIdentificationGroup 0 1
DocumentDateTime star:DocumentDateTime 0 1
Description star:Description 0 unbounded
Note oagis:Note 0 unbounded
StatusCode oagis:StatusCode 0 1
OperationReferenceStatusType star:OperationReferenceStatusType 0 unbounded
GroupName oagis:GroupName 0 unbounded
SequenceCode oagis:SequenceCode 0 1
StepID oagis:StepID 0 1
StepType oagis:StepType 0 1
Collapse Derivation Tree:
