Documentation for Standards for Technology in Automotive Retail
Definition Type: ComplexType
Name: OrderCommissionType
Namespace: http://www.openapplications.org/oagis/9
Containing Schema: OrderManagementComponents.xsd
Abstract
Documentation:
Contains the relevant information about the salesperson and the associated commission information.

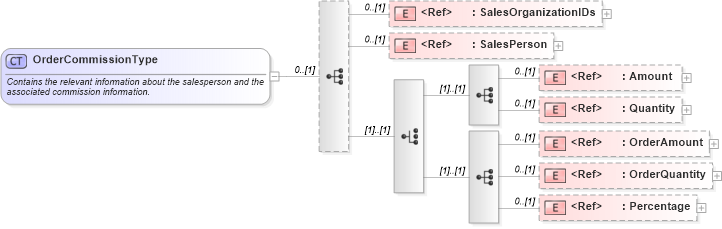

Collapse XSD Schema Diagram:
Drilldown into Percentage in schema fields_xsd1 Drilldown into OrderQuantity in schema fields_xsd1 Drilldown into OrderAmount in schema fields_xsd1 Drilldown into Quantity in schema fields_xsd1 Drilldown into Amount in schema fields_xsd1 Drilldown into SalesPerson in schema components_xsd1 Drilldown into SalesOrganizationIDs in schema components_xsd1XSD Diagram of OrderCommissionType in schema ordermanagementcomponents_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:complexType name="OrderCommissionType">
    <xsd:annotation>
        <xsd:documentation>Contains the relevant information about the salesperson and the associated commission information. </xsd:documentation>
    </xsd:annotation>
    <xsd:sequence minOccurs="0">
        <xsd:element ref="SalesOrganizationIDs" minOccurs="0" />
        <xsd:element ref="SalesPerson" minOccurs="0" />
        <xsd:choice>
            <xsd:sequence>
                <xsd:element ref="Amount" minOccurs="0" />
                <xsd:element ref="Quantity" minOccurs="0" />
            </xsd:sequence>
            <xsd:sequence>
                <xsd:element ref="OrderAmount" minOccurs="0" />
                <xsd:element ref="OrderQuantity" minOccurs="0" />
                <xsd:element ref="Percentage" minOccurs="0" />
            </xsd:sequence>
        </xsd:choice>
        <!-- <xsd:element ref="UserArea" minOccurs="0"/> -->
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
SalesOrganizationIDs oagis:SalesOrganizationIDs 0 (1)
SalesPerson oagis:SalesPerson 0 (1)
Amount oagis:Amount 0 (1)
Quantity oagis:Quantity 0 (1)
OrderAmount oagis:OrderAmount 0 (1)
OrderQuantity oagis:OrderQuantity 0 (1)
Percentage oagis:Percentage 0 (1)
Collapse Derivation Tree:
Collapse References:
oagis:OrderCommission
