Documentation for Standards for Technology in Automotive Retail
Definition Type: Element
Name: OrderedByOrderedByParty
Namespace: http://www.starstandard.org/STAR/5
Type: star:OrderedByPartyType
Containing Schema: VehicleOrder.xsd
Abstract
Documentation:
Business party who ordered the vehicle(s) This definition came from the VehicleOrderHeader Component

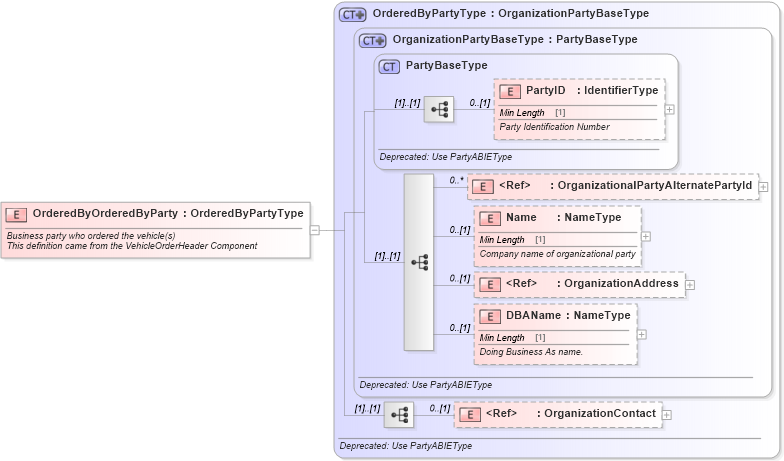

Collapse XSD Schema Diagram:
Drilldown into OrganizationContact in schema deprecatedcomponents_xsd Drilldown into DBAName in schema deprecatedcomponents_xsd Drilldown into OrganizationAddress in schema deprecatedcomponents_xsd Drilldown into Name in schema deprecatedcomponents_xsd Drilldown into OrganizationalPartyAlternatePartyId in schema deprecatedcomponents_xsd Drilldown into PartyID in schema deprecatedcomponents_xsd Drilldown into PartyBaseType in schema deprecatedcomponents_xsd Drilldown into OrganizationPartyBaseType in schema deprecatedcomponents_xsd Drilldown into OrderedByPartyType in schema deprecatedcomponents_xsdXSD Diagram of OrderedByOrderedByParty in schema vehicleorder_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:element name="OrderedByOrderedByParty" type="OrderedByPartyType">
    <xsd:annotation>
        <xsd:documentation xmlns="http://www.starstandards.org/STAR" source="http://www.starstandard.org/STAR/5">Business party who ordered the vehicle(s)</xsd:documentation>
        <xsd:documentation source="http://www.starstandard.org/STAR/5">This definition came from the VehicleOrderHeader Component</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
PartyID star:PartyID 0 (1)
OrganizationalPartyAlternatePartyId star:OrganizationalPartyAlternatePartyId 0 unbounded
Name star:Name 0 (1)
OrganizationAddress star:OrganizationAddress 0 (1)
DBAName star:DBAName 0 (1)
OrganizationContact star:OrganizationContact 0 (1)
Collapse Derivation Tree:
