Documentation for Standards for Technology in Automotive Retail
Definition Type: ComplexType
Name: OrganizationalOwnerRetrievalType
Namespace: http://www.starstandard.org/STAR/5
Containing Schema: VehicleServiceHistoryRetrieval.xsd
Abstract

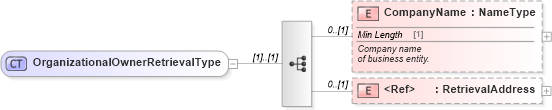

Collapse XSD Schema Diagram:
Drilldown into RetrievalAddress in schema vehicleservicehistoryretrieval_xsd Drilldown into CompanyName in schema vehicleservicehistoryretrieval_xsdXSD Diagram of OrganizationalOwnerRetrievalType in schema vehicleservicehistoryretrieval_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:complexType name="OrganizationalOwnerRetrievalType">
    <xsd:sequence>
        <xsd:element name="CompanyName" type="udt:NameType" minOccurs="0">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Company name
                of business entity.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="RetrievalAddress" minOccurs="0" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
CompanyName star:CompanyName 0 (1)
RetrievalAddress star:RetrievalAddress 0 (1)
Collapse Derivation Tree:
Collapse References:
star:OrganizationalOwnerRetrieval
