Documentation for Standards for Technology in Automotive Retail
Definition Type: ComplexType
Name: OrganizationalPartyAlternatePartyIdType
Namespace: http://www.starstandard.org/STAR/5
Type: star:AlternatePartyIdType
Containing Schema: DeprecatedComponents.xsd
Abstract
Documentation:
Deprecated

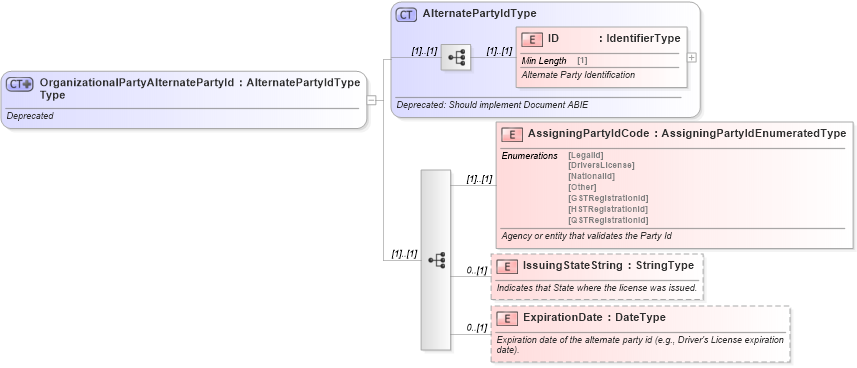

Collapse XSD Schema Diagram:
Drilldown into ExpirationDate in schema deprecatedcomponents_xsd Drilldown into IssuingStateString in schema deprecatedcomponents_xsd Drilldown into AssigningPartyIdCode in schema deprecatedcomponents_xsd Drilldown into ID in schema deprecatedcomponents_xsd Drilldown into AlternatePartyIdType in schema deprecatedcomponents_xsdXSD Diagram of OrganizationalPartyAlternatePartyIdType in schema deprecatedcomponents_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:complexType name="OrganizationalPartyAlternatePartyIdType">
    <xsd:annotation>
        <xsd:documentation>Deprecated</xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="AlternatePartyIdType">
            <xsd:sequence>
                <xsd:element name="AssigningPartyIdCode" type="scl:AssigningPartyIdEnumeratedType">
                    <xsd:annotation>
                        <xsd:documentation>
                            <ccts:Definition xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Agency or entity that validates the Party Id</ccts:Definition>
                        </xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element minOccurs="0" name="IssuingStateString" type="qdt:StringType">
                    <xsd:annotation>
                        <xsd:documentation>
                            <ccts:Definition xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Indicates that State where the license was issued.</ccts:Definition>
                        </xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element minOccurs="0" name="ExpirationDate" type="udt:DateType">
                    <xsd:annotation>
                        <xsd:documentation>
                            <ccts:Definition xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Expiration date of the alternate party id (e.g., Driver's License expiration
                           date).</ccts:Definition>
                        </xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ID star:ID (1) (1)
AssigningPartyIdCode star:AssigningPartyIdCode (1) (1)
IssuingStateString star:IssuingStateString 0 (1)
ExpirationDate star:ExpirationDate 0 (1)
Collapse Derivation Tree:
Collapse References:
star:OrganizationalPartyAlternatePartyId
