Documentation for Standards for Technology in Automotive Retail
Definition Type: ComplexType
Name: OrganizationApplicantContactContractsType
Namespace: http://www.starstandard.org/STAR/5
Containing Schema: DeprecatedComponents.xsd
Abstract
Documentation:
Deprecated: Use PartyABIEType

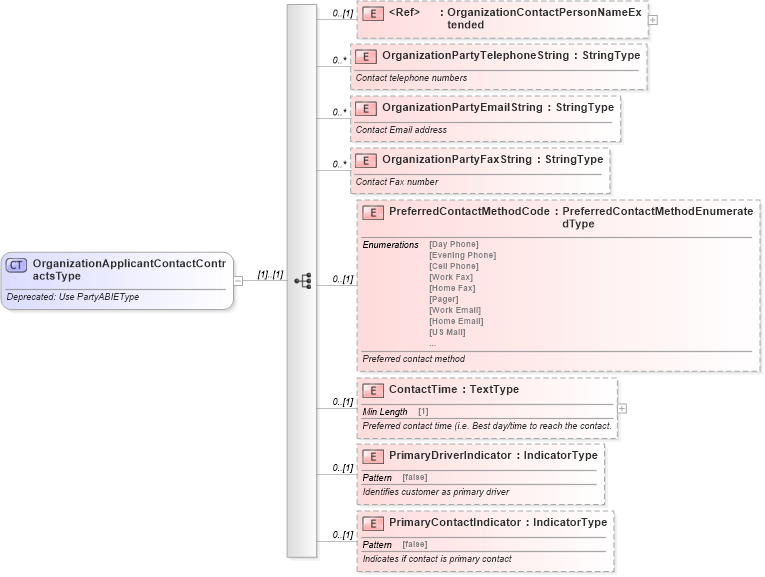

Collapse XSD Schema Diagram:
Drilldown into PrimaryContactIndicator in schema deprecatedcomponents_xsd Drilldown into PrimaryDriverIndicator in schema deprecatedcomponents_xsd Drilldown into ContactTime in schema deprecatedcomponents_xsd Drilldown into PreferredContactMethodCode in schema deprecatedcomponents_xsd Drilldown into OrganizationPartyFaxString in schema deprecatedcomponents_xsd Drilldown into OrganizationPartyEmailString in schema deprecatedcomponents_xsd Drilldown into OrganizationPartyTelephoneString in schema deprecatedcomponents_xsd Drilldown into OrganizationContactPersonNameExtended in schema deprecatedcomponents_xsdXSD Diagram of OrganizationApplicantContactContractsType in schema deprecatedcomponents_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:complexType name="OrganizationApplicantContactContractsType">
    <xsd:annotation>
        <xsd:documentation>Deprecated: Use PartyABIEType</xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element minOccurs="0" ref="OrganizationContactPersonNameExtended">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Definition xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Contact name</ccts:Definition>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="unbounded" minOccurs="0" name="OrganizationPartyTelephoneString" type="qdt:StringType">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Definition xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Contact telephone numbers</ccts:Definition>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="unbounded" minOccurs="0" name="OrganizationPartyEmailString" type="qdt:StringType">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Definition xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Contact Email address</ccts:Definition>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="unbounded" minOccurs="0" name="OrganizationPartyFaxString" type="qdt:StringType">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Definition xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Contact Fax number</ccts:Definition>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="PreferredContactMethodCode" type="scl:PreferredContactMethodEnumeratedType">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Definition xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Preferred contact method</ccts:Definition>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="ContactTime" type="udt:TextType">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Definition xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Preferred contact time (i.e. Best day/time to reach the contact.</ccts:Definition>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="PrimaryDriverIndicator" type="udt:IndicatorType">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Definition xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Identifies customer as primary driver</ccts:Definition>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="PrimaryContactIndicator" type="udt:IndicatorType">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Definition xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Indicates if contact is primary contact</ccts:Definition>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
OrganizationContactPersonNameExtended star:OrganizationContactPersonNameExtended 0 (1)
OrganizationPartyTelephoneString star:OrganizationPartyTelephoneString 0 unbounded
OrganizationPartyEmailString star:OrganizationPartyEmailString 0 unbounded
OrganizationPartyFaxString star:OrganizationPartyFaxString 0 unbounded
PreferredContactMethodCode star:PreferredContactMethodCode 0 (1)
ContactTime star:ContactTime 0 (1)
PrimaryDriverIndicator star:PrimaryDriverIndicator 0 (1)
PrimaryContactIndicator star:PrimaryContactIndicator 0 (1)
Collapse Derivation Tree:
Collapse References:
star:OrganizationApplicantContactContracts
