Definition Type: ComplexType
Name: OwnedVehicleDetailType
Namespace: http://www.starstandard.org/STAR/5
Containing Schema: Components.xsd
Abstract
Documentation:
Detailed information regarding a vehicle owned by an individual or organization.

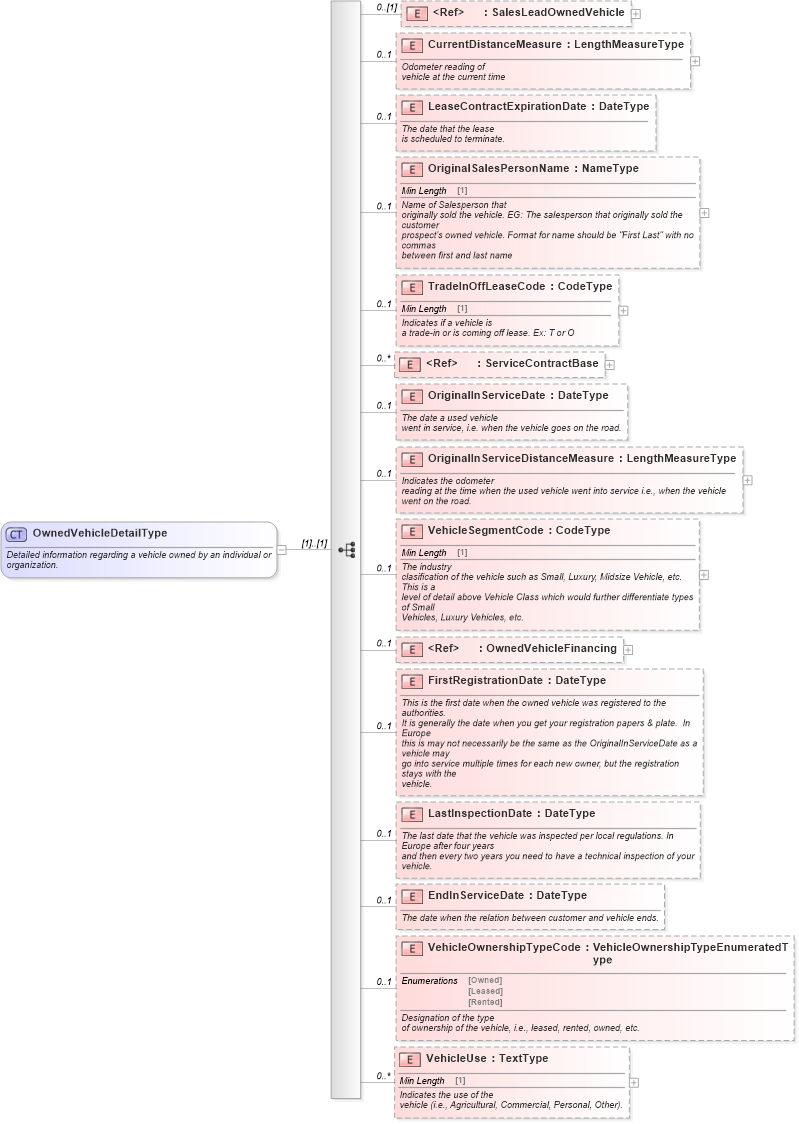

Collapse XSD Schema Diagram:
Drilldown into VehicleUse in schema components_xsd Drilldown into VehicleOwnershipTypeCode in schema components_xsd Drilldown into EndInServiceDate in schema components_xsd Drilldown into LastInspectionDate in schema components_xsd Drilldown into FirstRegistrationDate in schema components_xsd Drilldown into OwnedVehicleFinancing in schema components_xsd Drilldown into VehicleSegmentCode in schema components_xsd Drilldown into OriginalInServiceDistanceMeasure in schema components_xsd Drilldown into OriginalInServiceDate in schema components_xsd Drilldown into ServiceContractBase in schema components_xsd Drilldown into TradeInOffLeaseCode in schema components_xsd Drilldown into OriginalSalesPersonName in schema components_xsd Drilldown into LeaseContractExpirationDate in schema components_xsd Drilldown into CurrentDistanceMeasure in schema components_xsd Drilldown into SalesLeadOwnedVehicle in schema components_xsdXSD Diagram of OwnedVehicleDetailType in schema components_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:complexType name="OwnedVehicleDetailType">
    <xsd:annotation>
        <xsd:documentation>Detailed information regarding a vehicle owned by an individual or
                organization.</xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element minOccurs="0" ref="SalesLeadOwnedVehicle" />
        <xsd:element maxOccurs="1" minOccurs="0" name="CurrentDistanceMeasure" type="sqdt:LengthMeasureType">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Odometer reading of
                vehicle at the current time</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="1" minOccurs="0" name="LeaseContractExpirationDate" type="udt:DateType">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org/STAR/5">The date that the lease
                is scheduled to terminate.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="1" minOccurs="0" name="OriginalSalesPersonName" type="udt:NameType">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Name of Salesperson that
                originally sold the vehicle. EG: The salesperson that originally sold the customer
                prospect's owned vehicle. Format for name should be "First Last" with no commas
                between first and last name</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="1" minOccurs="0" name="TradeInOffLeaseCode" type="udt:CodeType">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Indicates if a vehicle is
                a trade-in or is coming off lease. Ex: T or O</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="unbounded" minOccurs="0" ref="ServiceContractBase" />
        <xsd:element maxOccurs="1" minOccurs="0" name="OriginalInServiceDate" type="udt:DateType">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org/STAR/5">The date a used vehicle
                went in service, i.e. when the vehicle goes on the road.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="1" minOccurs="0" name="OriginalInServiceDistanceMeasure" type="sqdt:LengthMeasureType">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Indicates the odometer
                reading at the time when the used vehicle went into service i.e., when the vehicle
                went on the road.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="1" minOccurs="0" name="VehicleSegmentCode" type="udt:CodeType">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org/STAR/5">The industry
                clasification of the vehicle such as Small, Luxury, Midsize Vehicle, etc. This is a
                level of detail above Vehicle Class which would further differentiate types of Small
                Vehicles, Luxury Vehicles, etc.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="1" minOccurs="0" ref="OwnedVehicleFinancing" />
        <xsd:element maxOccurs="1" minOccurs="0" name="FirstRegistrationDate" type="udt:DateType">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org/STAR/5">
                This is the first date when the owned vehicle was registered to the authorities.
                It is generally the date when you get your registration papers &amp; plate.  In Europe
                this is may not necessarily be the same as the OriginalInServiceDate as a vehicle may
                go into service multiple times for each new owner, but the registration stays with the
                vehicle.
            </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="1" minOccurs="0" name="LastInspectionDate" type="udt:DateType">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org/STAR/5">
               The last date that the vehicle was inspected per local regulations. In Europe after four years
               and then every two years you need to have a technical inspection of your vehicle.
            </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="1" minOccurs="0" name="EndInServiceDate" type="udt:DateType">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org/STAR/5">
                The date when the relation between customer and vehicle ends.
            </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="1" minOccurs="0" name="VehicleOwnershipTypeCode" type="scl:VehicleOwnershipTypeEnumeratedType">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Designation of the type
                of ownership of the vehicle, i.e., leased, rented, owned, etc.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="unbounded" minOccurs="0" name="VehicleUse" type="udt:TextType">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Indicates the use of the
                vehicle (i.e., Agricultural, Commercial, Personal, Other).</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
SalesLeadOwnedVehicle star:SalesLeadOwnedVehicle 0 (1)
CurrentDistanceMeasure star:CurrentDistanceMeasure 0 1
LeaseContractExpirationDate star:LeaseContractExpirationDate 0 1
OriginalSalesPersonName star:OriginalSalesPersonName 0 1
TradeInOffLeaseCode star:TradeInOffLeaseCode 0 1
ServiceContractBase star:ServiceContractBase 0 unbounded
OriginalInServiceDate star:OriginalInServiceDate 0 1
OriginalInServiceDistanceMeasure star:OriginalInServiceDistanceMeasure 0 1
VehicleSegmentCode star:VehicleSegmentCode 0 1
OwnedVehicleFinancing star:OwnedVehicleFinancing 0 1
FirstRegistrationDate star:FirstRegistrationDate 0 1
LastInspectionDate star:LastInspectionDate 0 1
EndInServiceDate star:EndInServiceDate 0 1
VehicleOwnershipTypeCode star:VehicleOwnershipTypeCode 0 1
VehicleUse star:VehicleUse 0 unbounded
Collapse Derivation Tree:
Collapse References:
star:OwnedVehicleDetail
