Definition Type: ComplexType
Name: PartMasterHeaderType
Namespace: http://www.starstandard.org/STAR/5
Type: star:HeaderBaseType
Containing Schema: PartsMaster.xsd
Abstract
Documentation:
.

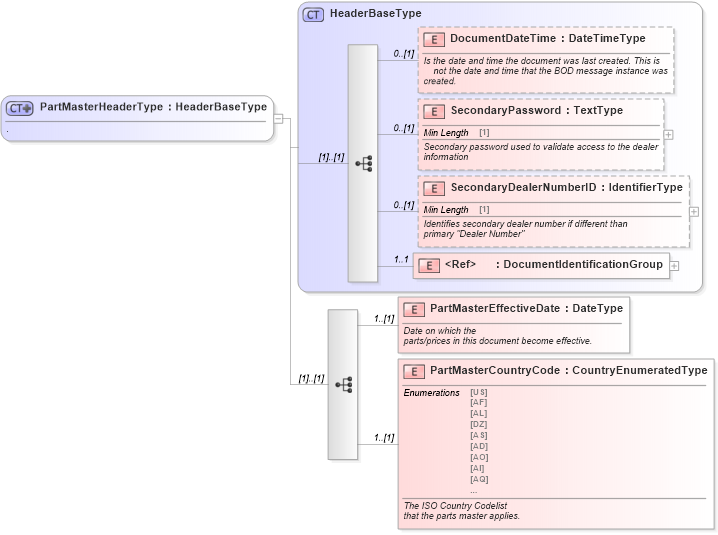

Collapse XSD Schema Diagram:
Drilldown into PartMasterCountryCode in schema partsmaster_xsd Drilldown into PartMasterEffectiveDate in schema partsmaster_xsd Drilldown into DocumentIdentificationGroup in schema components_xsd Drilldown into SecondaryDealerNumberID in schema components_xsd Drilldown into SecondaryPassword in schema components_xsd Drilldown into DocumentDateTime in schema components_xsd Drilldown into HeaderBaseType in schema components_xsdXSD Diagram of PartMasterHeaderType in schema partsmaster_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:complexType name="PartMasterHeaderType">
    <xsd:annotation xmlns="http://www.starstandards.org/STAR">
        <xsd:documentation source="http://www.starstandard.org/STAR/5">.</xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="HeaderBaseType">
            <xsd:sequence>
                <!--  <xsd:element ref="DocumentID" minOccurs="0" /> -->
                <xsd:element name="PartMasterEffectiveDate" type="udt:DateType" minOccurs="1">
                    <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">Date on which the
                parts/prices in this document become effective.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="PartMasterCountryCode" type="scl:CountryEnumeratedType" minOccurs="1">
                    <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">The ISO Country Codelist
                that the parts master applies.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DocumentDateTime star:DocumentDateTime 0 (1)
SecondaryPassword star:SecondaryPassword 0 (1)
SecondaryDealerNumberID star:SecondaryDealerNumberID 0 (1)
DocumentIdentificationGroup star:DocumentIdentificationGroup 1 1
PartMasterEffectiveDate star:PartMasterEffectiveDate 1 (1)
PartMasterCountryCode star:PartMasterCountryCode 1 (1)
Collapse Derivation Tree:
Collapse References:
star:PartMasterHeader
