Documentation for Standards for Technology in Automotive Retail
Definition Type: ComplexType
Name: PartsInventoryHeaderType
Namespace: http://www.starstandard.org/STAR/5
Type: star:HeaderBaseType
Containing Schema: PartsInventory.xsd
Abstract
Documentation:
.

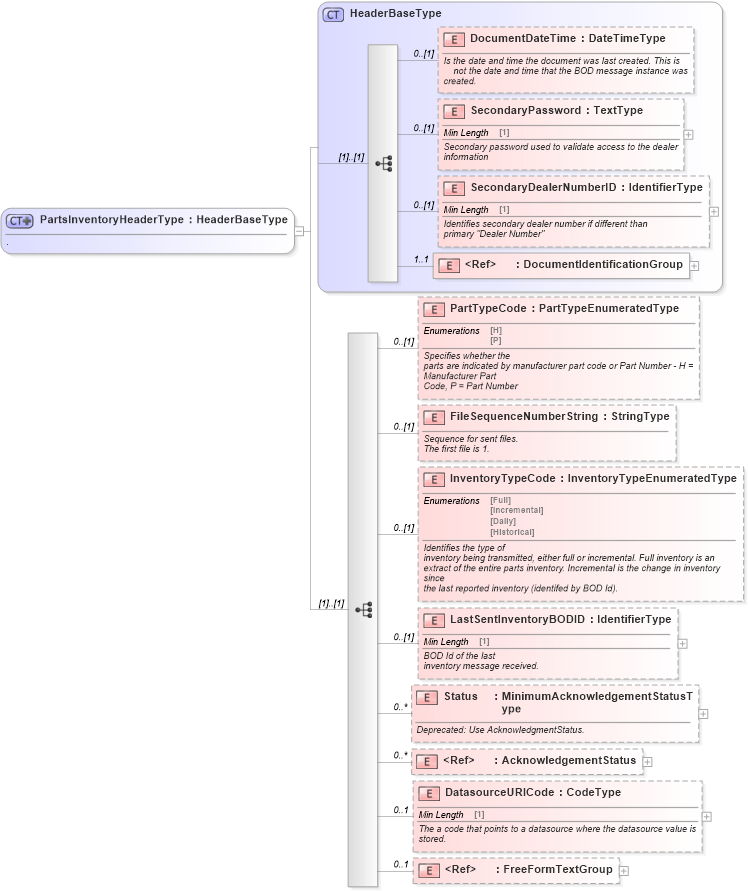

Collapse XSD Schema Diagram:
Drilldown into FreeFormTextGroup in schema components_xsd Drilldown into DatasourceURICode in schema partsinventory_xsd Drilldown into AcknowledgementStatus in schema components_xsd Drilldown into Status in schema partsinventory_xsd Drilldown into LastSentInventoryBODID in schema partsinventory_xsd Drilldown into InventoryTypeCode in schema partsinventory_xsd Drilldown into FileSequenceNumberString in schema partsinventory_xsd Drilldown into PartTypeCode in schema partsinventory_xsd Drilldown into DocumentIdentificationGroup in schema components_xsd Drilldown into SecondaryDealerNumberID in schema components_xsd Drilldown into SecondaryPassword in schema components_xsd Drilldown into DocumentDateTime in schema components_xsd Drilldown into HeaderBaseType in schema components_xsdXSD Diagram of PartsInventoryHeaderType in schema partsinventory_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:complexType name="PartsInventoryHeaderType">
    <xsd:annotation xmlns="http://www.starstandards.org/STAR">
        <xsd:documentation source="http://www.starstandard.org/STAR/5">.</xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="HeaderBaseType">
            <xsd:sequence>
                <xsd:element name="PartTypeCode" type="scl:PartTypeEnumeratedType" minOccurs="0">
                    <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">Specifies whether the
                parts are indicated by manufacturer part code or Part Number - H = Manufacturer Part
                Code, P = Part Number</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="FileSequenceNumberString" type="qdt:StringType" minOccurs="0">
                    <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">Sequence for sent files.
                The first file is 1.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="InventoryTypeCode" type="scl:InventoryTypeEnumeratedType" minOccurs="0">
                    <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">Identifies the type of
                inventory being transmitted, either full or incremental. Full inventory is an
                extract of the entire parts inventory. Incremental is the change in inventory since
                the last reported inventory (identifed by BOD Id).</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="LastSentInventoryBODID" type="udt:IdentifierType" minOccurs="0">
                    <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">BOD Id of the last
                inventory message received.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="Status" type="MinimumAcknowledgementStatusType" minOccurs="0" maxOccurs="unbounded">
                    <xsd:annotation>
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">
                                Deprecated: Use AcknowledgmentStatus.
                            </xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element ref="AcknowledgementStatus" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element name="DatasourceURICode" type="udt:CodeType" minOccurs="0" maxOccurs="1">
                    <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">The a code that points to a datasource where the datasource value is stored.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element ref="FreeFormTextGroup" minOccurs="0" maxOccurs="1" />
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DocumentDateTime star:DocumentDateTime 0 (1)
SecondaryPassword star:SecondaryPassword 0 (1)
SecondaryDealerNumberID star:SecondaryDealerNumberID 0 (1)
DocumentIdentificationGroup star:DocumentIdentificationGroup 1 1
PartTypeCode star:PartTypeCode 0 (1)
FileSequenceNumberString star:FileSequenceNumberString 0 (1)
InventoryTypeCode star:InventoryTypeCode 0 (1)
LastSentInventoryBODID star:LastSentInventoryBODID 0 (1)
Status star:Status 0 unbounded
AcknowledgementStatus star:AcknowledgementStatus 0 unbounded
DatasourceURICode star:DatasourceURICode 0 1
FreeFormTextGroup star:FreeFormTextGroup 0 1
Collapse Derivation Tree:
Collapse References:
star:PartsInventoryHeader
