Definition Type: Element
Name: PartsLocator
Namespace: http://www.starstandard.org/STAR/5
Type: star:PartsLocatorType
Containing Schema: PartsLocator.xsd
Abstract
Documentation:
For each Parts Locator represented in the Data Area of the PartsLocator BOD, there must be one occurrence of the PartsLocator component.
Collapse XSD Schema Diagram:

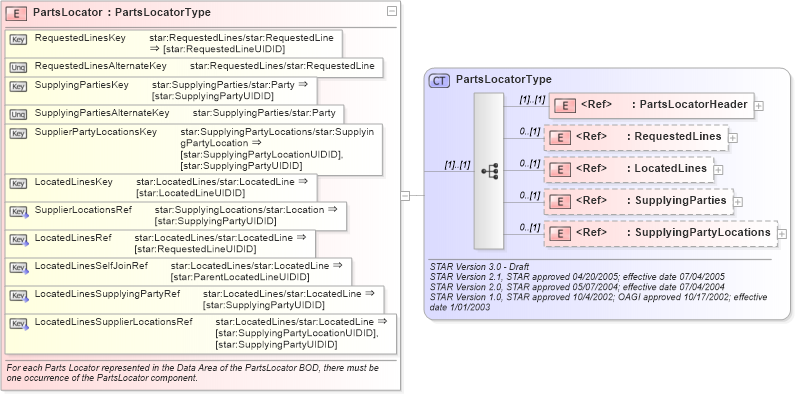

Drilldown into SupplyingPartyLocations in schema partslocator_xsd Drilldown into SupplyingParties in schema partslocator_xsd Drilldown into LocatedLines in schema partslocator_xsd Drilldown into RequestedLines in schema partslocator_xsd Drilldown into PartsLocatorHeader in schema partslocator_xsd Drilldown into PartsLocatorType in schema partslocator_xsdXSD Diagram of PartsLocator in schema partslocator_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:element name="PartsLocator" type="PartsLocatorType">
    <xsd:annotation>
        <xsd:documentation source="http://www.starstandard.org/STAR/5">
                For each Parts Locator represented in the Data Area of the PartsLocator BOD, there must be one occurrence of the PartsLocator component.
            </xsd:documentation>
    </xsd:annotation>
    <xsd:key name="RequestedLinesKey">
        <xsd:selector xpath="star:RequestedLines/star:RequestedLine" />
        <xsd:field xpath="star:RequestedLineUIDID" />
    </xsd:key>
    <xsd:unique name="RequestedLinesAlternateKey">
        <xsd:selector xpath="star:RequestedLines/star:RequestedLine" />
        <xsd:field xpath="star:LineNumber" />
    </xsd:unique>
    <xsd:key name="SupplyingPartiesKey">
        <xsd:selector xpath="star:SupplyingParties/star:Party" />
        <xsd:field xpath="star:SupplyingPartyUIDID" />
    </xsd:key>
    <xsd:unique name="SupplyingPartiesAlternateKey">
        <xsd:selector xpath="star:SupplyingParties/star:Party" />
        <xsd:field xpath="star:PartyId" />
    </xsd:unique>
    <xsd:key name="SupplierPartyLocationsKey">
        <xsd:selector xpath="star:SupplyingPartyLocations/star:SupplyingPartyLocation" />
        <xsd:field xpath="star:SupplyingPartyLocationUIDID" />
        <xsd:field xpath="star:SupplyingPartyUIDID" />
    </xsd:key>
    <xsd:key name="LocatedLinesKey">
        <xsd:selector xpath="star:LocatedLines/star:LocatedLine" />
        <xsd:field xpath="star:LocatedLineUIDID" />
    </xsd:key>
    <xsd:keyref name="SupplierLocationsRef" refer="SupplyingPartiesKey">
        <xsd:selector xpath="star:SupplyingLocations/star:Location" />
        <xsd:field xpath="star:SupplyingPartyUIDID" />
    </xsd:keyref>
    <xsd:keyref name="LocatedLinesRef" refer="RequestedLinesKey">
        <xsd:selector xpath="star:LocatedLines/star:LocatedLine" />
        <xsd:field xpath="star:RequestedLineUIDID" />
    </xsd:keyref>
    <xsd:keyref name="LocatedLinesSelfJoinRef" refer="LocatedLinesKey">
        <xsd:selector xpath="star:LocatedLines/star:LocatedLine" />
        <xsd:field xpath="star:ParentLocatedLineUIDID" />
    </xsd:keyref>
    <xsd:keyref name="LocatedLinesSupplyingPartyRef" refer="SupplyingPartiesKey">
        <xsd:selector xpath="star:LocatedLines/star:LocatedLine" />
        <xsd:field xpath="star:SupplyingPartyUIDID" />
    </xsd:keyref>
    <xsd:keyref name="LocatedLinesSupplierLocationsRef" refer="SupplierPartyLocationsKey">
        <xsd:selector xpath="star:LocatedLines/star:LocatedLine" />
        <xsd:field xpath="star:SupplyingPartyLocationUIDID" />
        <xsd:field xpath="star:SupplyingPartyUIDID" />
    </xsd:keyref>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
PartsLocatorHeader star:PartsLocatorHeader (1) (1)
RequestedLines star:RequestedLines 0 (1)
LocatedLines star:LocatedLines 0 (1)
SupplyingParties star:SupplyingParties 0 (1)
SupplyingPartyLocations star:SupplyingPartyLocations 0 (1)
