Documentation for Standards for Technology in Automotive Retail
Definition Type: Element
Name: PartsLocatorHeaderBase
Namespace: http://www.starstandard.org/STAR/5
Type: star:PartsLocatorHeaderBaseType
Containing Schema: Components.xsd
Abstract

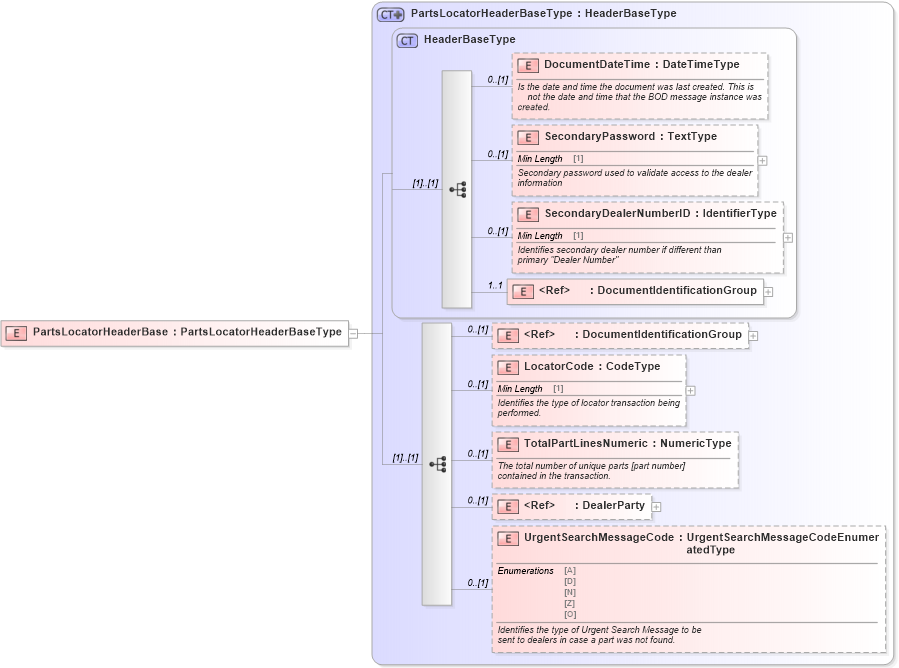

Collapse XSD Schema Diagram:
Drilldown into UrgentSearchMessageCode in schema components_xsd Drilldown into DealerParty in schema components_xsd Drilldown into TotalPartLinesNumeric in schema components_xsd Drilldown into LocatorCode in schema components_xsd Drilldown into DocumentIdentificationGroup in schema components_xsd Drilldown into DocumentIdentificationGroup in schema components_xsd Drilldown into SecondaryDealerNumberID in schema components_xsd Drilldown into SecondaryPassword in schema components_xsd Drilldown into DocumentDateTime in schema components_xsd Drilldown into HeaderBaseType in schema components_xsd Drilldown into PartsLocatorHeaderBaseType in schema components_xsdXSD Diagram of PartsLocatorHeaderBase in schema components_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:element name="PartsLocatorHeaderBase" type="PartsLocatorHeaderBaseType">
    <xsd:annotation>
        <xsd:documentation>
        </xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DocumentDateTime star:DocumentDateTime 0 (1)
SecondaryPassword star:SecondaryPassword 0 (1)
SecondaryDealerNumberID star:SecondaryDealerNumberID 0 (1)
DocumentIdentificationGroup star:DocumentIdentificationGroup 1 1
DocumentIdentificationGroup star:DocumentIdentificationGroup 0 (1)
LocatorCode star:LocatorCode 0 (1)
TotalPartLinesNumeric star:TotalPartLinesNumeric 0 (1)
DealerParty star:DealerParty 0 (1)
UrgentSearchMessageCode star:UrgentSearchMessageCode 0 (1)
Collapse Derivation Tree:
