Documentation for Standards for Technology in Automotive Retail
Definition Type: Element
Name: PartsProductItem
Namespace: http://www.starstandard.org/STAR/5
Type: star:PartsProductItemType
Containing Schema: Components.xsd
Abstract
Documentation:
The business information common to all parts.

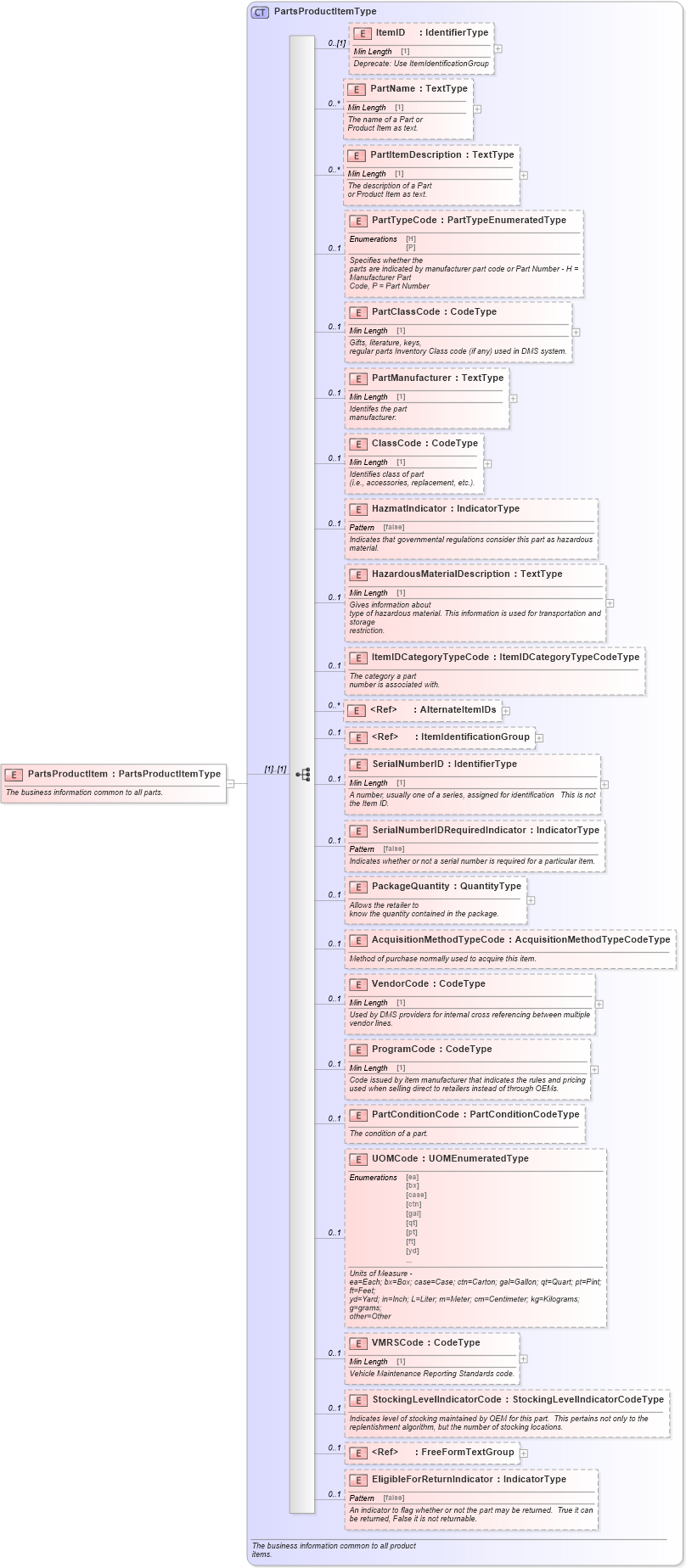

Collapse XSD Schema Diagram:
Drilldown into EligibleForReturnIndicator in schema components_xsd Drilldown into FreeFormTextGroup in schema components_xsd Drilldown into StockingLevelIndicatorCode in schema components_xsd Drilldown into VMRSCode in schema components_xsd Drilldown into UOMCode in schema components_xsd Drilldown into PartConditionCode in schema components_xsd Drilldown into ProgramCode in schema components_xsd Drilldown into VendorCode in schema components_xsd Drilldown into AcquisitionMethodTypeCode in schema components_xsd Drilldown into PackageQuantity in schema components_xsd Drilldown into SerialNumberIDRequiredIndicator in schema components_xsd Drilldown into SerialNumberID in schema components_xsd Drilldown into ItemIdentificationGroup in schema components_xsd Drilldown into AlternateItemIDs in schema components_xsd Drilldown into ItemIDCategoryTypeCode in schema components_xsd Drilldown into HazardousMaterialDescription in schema components_xsd Drilldown into HazmatIndicator in schema components_xsd Drilldown into ClassCode in schema components_xsd Drilldown into PartManufacturer in schema components_xsd Drilldown into PartClassCode in schema components_xsd Drilldown into PartTypeCode in schema components_xsd Drilldown into PartItemDescription in schema components_xsd Drilldown into PartName in schema components_xsd Drilldown into ItemID in schema components_xsd Drilldown into PartsProductItemType in schema components_xsdXSD Diagram of PartsProductItem in schema components_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:element name="PartsProductItem" type="PartsProductItemType">
    <xsd:annotation>
        <xsd:documentation>The business information common to all parts.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ItemID star:ItemID 0 (1)
PartName star:PartName 0 unbounded
PartItemDescription star:PartItemDescription 0 unbounded
PartTypeCode star:PartTypeCode 0 1
PartClassCode star:PartClassCode 0 1
PartManufacturer star:PartManufacturer 0 1
ClassCode star:ClassCode 0 1
HazmatIndicator star:HazmatIndicator 0 1
HazardousMaterialDescription star:HazardousMaterialDescription 0 1
ItemIDCategoryTypeCode star:ItemIDCategoryTypeCode 0 1
AlternateItemIDs star:AlternateItemIDs 0 unbounded
ItemIdentificationGroup star:ItemIdentificationGroup 0 1
SerialNumberID star:SerialNumberID 0 1
SerialNumberIDRequiredIndicator star:SerialNumberIDRequiredIndicator 0 1
PackageQuantity star:PackageQuantity 0 1
AcquisitionMethodTypeCode star:AcquisitionMethodTypeCode 0 1
VendorCode star:VendorCode 0 1
ProgramCode star:ProgramCode 0 1
PartConditionCode star:PartConditionCode 0 1
UOMCode star:UOMCode 0 1
VMRSCode star:VMRSCode 0 1
StockingLevelIndicatorCode star:StockingLevelIndicatorCode 0 1
FreeFormTextGroup star:FreeFormTextGroup 0 1
EligibleForReturnIndicator star:EligibleForReturnIndicator 0 1
Collapse Derivation Tree:
