Definition Type: ComplexType
Name: PartsReturnHeaderType
Namespace: http://www.starstandard.org/STAR/5
Type: star:HeaderBaseType
Containing Schema: PartsReturn.xsd
Abstract
Documentation:
.

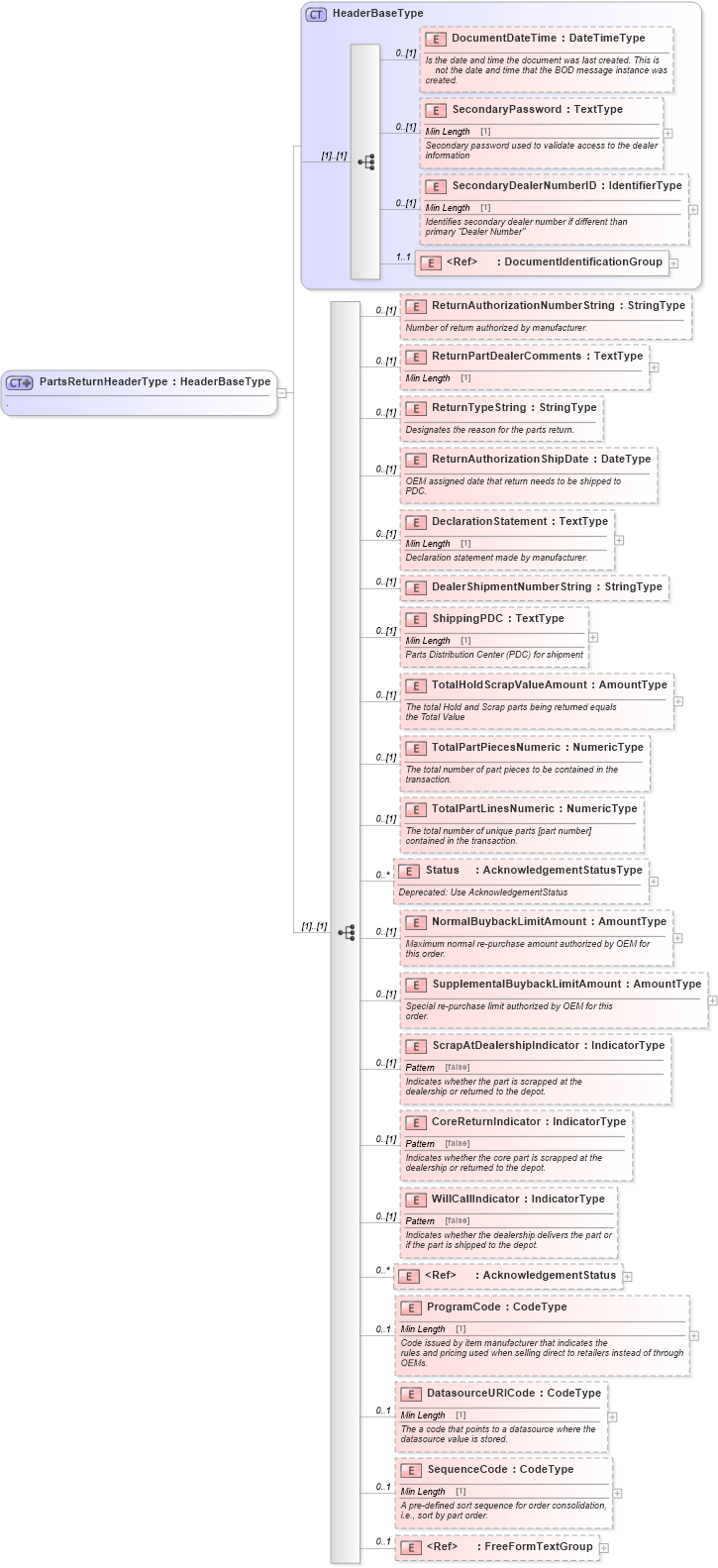

Collapse XSD Schema Diagram:
Drilldown into FreeFormTextGroup in schema components_xsd Drilldown into SequenceCode in schema partsreturn_xsd Drilldown into DatasourceURICode in schema partsreturn_xsd Drilldown into ProgramCode in schema partsreturn_xsd Drilldown into AcknowledgementStatus in schema components_xsd Drilldown into WillCallIndicator in schema partsreturn_xsd Drilldown into CoreReturnIndicator in schema partsreturn_xsd Drilldown into ScrapAtDealershipIndicator in schema partsreturn_xsd Drilldown into SupplementalBuybackLimitAmount in schema partsreturn_xsd Drilldown into NormalBuybackLimitAmount in schema partsreturn_xsd Drilldown into Status in schema partsreturn_xsd Drilldown into TotalPartLinesNumeric in schema partsreturn_xsd Drilldown into TotalPartPiecesNumeric in schema partsreturn_xsd Drilldown into TotalHoldScrapValueAmount in schema partsreturn_xsd Drilldown into ShippingPDC in schema partsreturn_xsd Drilldown into DealerShipmentNumberString in schema partsreturn_xsd Drilldown into DeclarationStatement in schema partsreturn_xsd Drilldown into ReturnAuthorizationShipDate in schema partsreturn_xsd Drilldown into ReturnTypeString in schema partsreturn_xsd Drilldown into ReturnPartDealerComments in schema partsreturn_xsd Drilldown into ReturnAuthorizationNumberString in schema partsreturn_xsd Drilldown into DocumentIdentificationGroup in schema components_xsd Drilldown into SecondaryDealerNumberID in schema components_xsd Drilldown into SecondaryPassword in schema components_xsd Drilldown into DocumentDateTime in schema components_xsd Drilldown into HeaderBaseType in schema components_xsdXSD Diagram of PartsReturnHeaderType in schema partsreturn_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:complexType name="PartsReturnHeaderType">
    <xsd:annotation xmlns="http://www.starstandards.org/STAR">
        <xsd:documentation source="http://www.starstandard.org/STAR/5">.</xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="HeaderBaseType">
            <xsd:sequence>
                <!--    <xsd:element ref="DocumentID" minOccurs="0" /> -->
                <xsd:element name="ReturnAuthorizationNumberString" type="qdt:StringType" minOccurs="0">
                    <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">Number of return authorized by manufacturer.
                     </xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="ReturnPartDealerComments" type="udt:TextType" minOccurs="0">
                    <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                        <xsd:documentation source="http://www.starstandard.org/STAR/5" />
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="ReturnTypeString" type="qdt:StringType" minOccurs="0">
                    <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">Designates the reason for the parts return.
                     </xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="ReturnAuthorizationShipDate" type="udt:DateType" minOccurs="0">
                    <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">OEM assigned date that return needs to be shipped to
                        PDC.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="DeclarationStatement" type="udt:TextType" minOccurs="0">
                    <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">Declaration statement made by manufacturer.
                     </xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="DealerShipmentNumberString" type="qdt:StringType" minOccurs="0">
                    <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                        <xsd:documentation source="http://www.starstandard.org/STAR/5" />
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="ShippingPDC" type="udt:TextType" minOccurs="0">
                    <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">Parts Distribution Center (PDC) for shipment
                     </xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="TotalHoldScrapValueAmount" type="udt:AmountType" minOccurs="0">
                    <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">The total Hold and Scrap parts being returned equals
                        the Total Value</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="TotalPartPiecesNumeric" type="udt:NumericType" minOccurs="0">
                    <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">The total number of part pieces to be contained in the
                        transaction.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="TotalPartLinesNumeric" type="udt:NumericType" minOccurs="0">
                    <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">The total number of unique parts [part number]
                        contained in the transaction.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="Status" type="AcknowledgementStatusType" minOccurs="0" maxOccurs="unbounded">
                    <xsd:annotation>
                        <xsd:documentation source="http://www.starstandard.org/STAR/5"> Deprecated: Use AcknowledgementStatus
                     </xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="NormalBuybackLimitAmount" type="udt:AmountType" minOccurs="0">
                    <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">Maximum normal re-purchase amount authorized by OEM for
                        this order.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="SupplementalBuybackLimitAmount" type="udt:AmountType" minOccurs="0">
                    <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">Special re-purchase limit authorized by OEM for this
                        order.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="ScrapAtDealershipIndicator" type="udt:IndicatorType" minOccurs="0">
                    <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">Indicates whether the part is scrapped at the
                        dealership or returned to the depot.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="CoreReturnIndicator" type="udt:IndicatorType" minOccurs="0">
                    <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">Indicates whether the core part is scrapped at the
                        dealership or returned to the depot.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="WillCallIndicator" type="udt:IndicatorType" minOccurs="0">
                    <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">Indicates whether the dealership delivers the part or
                        if the part is shipped to the depot.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element ref="AcknowledgementStatus" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element name="ProgramCode" type="udt:CodeType" minOccurs="0" maxOccurs="1">
                    <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">Code issued by item manufacturer that indicates the
                        rules and pricing used when selling direct to retailers instead of through OEMs.
                     </xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="DatasourceURICode" type="udt:CodeType" minOccurs="0" maxOccurs="1">
                    <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">The a code that points to a datasource where the
                        datasource value is stored.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="SequenceCode" type="udt:CodeType" minOccurs="0" maxOccurs="1">
                    <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">A pre-defined sort sequence for order consolidation,
                        i.e., sort by part order.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element ref="FreeFormTextGroup" minOccurs="0" maxOccurs="1" />
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DocumentDateTime star:DocumentDateTime 0 (1)
SecondaryPassword star:SecondaryPassword 0 (1)
SecondaryDealerNumberID star:SecondaryDealerNumberID 0 (1)
DocumentIdentificationGroup star:DocumentIdentificationGroup 1 1
ReturnAuthorizationNumberString star:ReturnAuthorizationNumberString 0 (1)
ReturnPartDealerComments star:ReturnPartDealerComments 0 (1)
ReturnTypeString star:ReturnTypeString 0 (1)
ReturnAuthorizationShipDate star:ReturnAuthorizationShipDate 0 (1)
DeclarationStatement star:DeclarationStatement 0 (1)
DealerShipmentNumberString star:DealerShipmentNumberString 0 (1)
ShippingPDC star:ShippingPDC 0 (1)
TotalHoldScrapValueAmount star:TotalHoldScrapValueAmount 0 (1)
TotalPartPiecesNumeric star:TotalPartPiecesNumeric 0 (1)
TotalPartLinesNumeric star:TotalPartLinesNumeric 0 (1)
Status star:Status 0 unbounded
NormalBuybackLimitAmount star:NormalBuybackLimitAmount 0 (1)
SupplementalBuybackLimitAmount star:SupplementalBuybackLimitAmount 0 (1)
ScrapAtDealershipIndicator star:ScrapAtDealershipIndicator 0 (1)
CoreReturnIndicator star:CoreReturnIndicator 0 (1)
WillCallIndicator star:WillCallIndicator 0 (1)
AcknowledgementStatus star:AcknowledgementStatus 0 unbounded
ProgramCode star:ProgramCode 0 1
DatasourceURICode star:DatasourceURICode 0 1
SequenceCode star:SequenceCode 0 1
FreeFormTextGroup star:FreeFormTextGroup 0 1
Collapse Derivation Tree:
Collapse References:
star:PartsReturnHeader
