Docs for schema item PartyABIEType in Standards for Technology in Automotive Retail

Documentation for Standards for Technology in Automotive Retail

Definition Type:	ComplexType
Name:	PartyABIEType
Namespace:	http://www.starstandard.org/STAR/5
Containing Schema:	Components.xsd
Abstract
Documentation:	This is the base Party component based off the Uncefact Core Component.

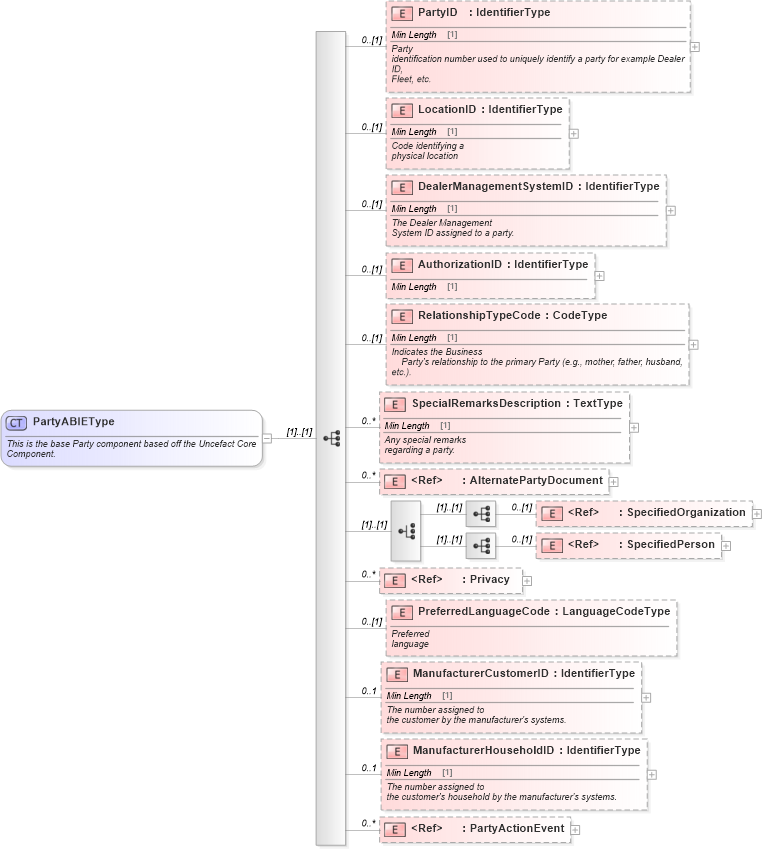

XSD Schema Diagram:

XSD Diagram of PartyABIEType in schema components_xsd (Standards for Technology in Automotive Retail)

XSD Schema Code:

<xsd:complexType name="PartyABIEType">
    <xsd:annotation>
        <xsd:documentation>This is the base Party component based off the Uncefact Core
                Component.</xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element minOccurs="0" name="PartyID" type="udt:IdentifierType">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Party
                identification number used to uniquely identify a party for example Dealer ID,
                Fleet, etc.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="LocationID" type="udt:IdentifierType">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Code identifying a
                physical location</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="DealerManagementSystemID" type="udt:IdentifierType">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org/STAR/5">The Dealer Management
                System ID assigned to a party.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="AuthorizationID" type="udt:IdentifierType">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org/STAR/5" />
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="RelationshipTypeCode" type="udt:CodeType">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Indicates the Business
                Party's relationship to the primary Party (e.g., mother, father, husband,
            etc.).</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="unbounded" minOccurs="0" name="SpecialRemarksDescription" type="udt:TextType">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Any special remarks
                regarding a party.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="unbounded" minOccurs="0" ref="AlternatePartyDocument" />
        <xsd:choice>
            <xsd:sequence>
                <xsd:element minOccurs="0" ref="SpecifiedOrganization" />
            </xsd:sequence>
            <xsd:sequence>
                <xsd:element minOccurs="0" ref="SpecifiedPerson" />
            </xsd:sequence>
        </xsd:choice>
        <xsd:element maxOccurs="unbounded" minOccurs="0" ref="Privacy" />
        <xsd:element minOccurs="0" name="PreferredLanguageCode" type="sqdt:LanguageCodeType">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Preferred
            language</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="1" minOccurs="0" name="ManufacturerCustomerID" type="udt:IdentifierType">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org/STAR/5">The number assigned to
                the customer by the manufacturer's systems.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="1" minOccurs="0" name="ManufacturerHouseholdID" type="udt:IdentifierType">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org/STAR/5">The number assigned to
                the customer's household by the manufacturer's systems.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="unbounded" minOccurs="0" ref="PartyActionEvent" />
    </xsd:sequence>
</xsd:complexType>

Child Elements:

Name	Type	Min Occurs	Max Occurs
PartyID	star:PartyID	0	(1)
LocationID	star:LocationID	0	(1)
DealerManagementSystemID	star:DealerManagementSystemID	0	(1)
AuthorizationID	star:AuthorizationID	0	(1)
RelationshipTypeCode	star:RelationshipTypeCode	0	(1)
SpecialRemarksDescription	star:SpecialRemarksDescription	0	unbounded
AlternatePartyDocument	star:AlternatePartyDocument	0	unbounded
SpecifiedOrganization	star:SpecifiedOrganization	0	(1)
SpecifiedPerson	star:SpecifiedPerson	0	(1)
Privacy	star:Privacy	0	unbounded
PreferredLanguageCode	star:PreferredLanguageCode	0	(1)
ManufacturerCustomerID	star:ManufacturerCustomerID	0	1
ManufacturerHouseholdID	star:ManufacturerHouseholdID	0	1
PartyActionEvent	star:PartyActionEvent	0	unbounded
