Definition Type: ComplexType
Name: PaymentAuthorizationType
Namespace: http://www.openapplications.org/oagis/9
Type: oagis:PaymentAuthorizationABIEType
Containing Schema: Components.xsd
Abstract

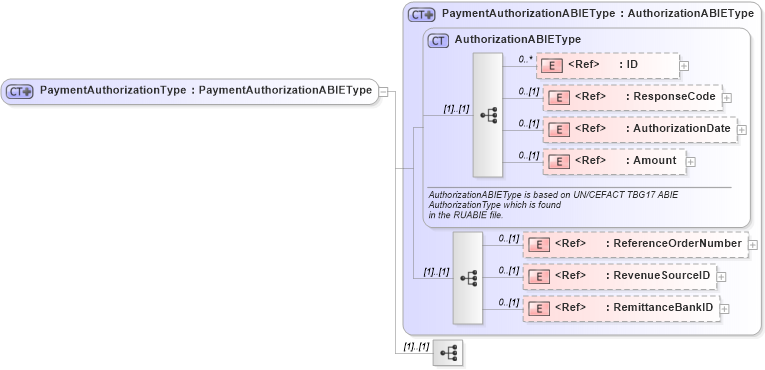

Collapse XSD Schema Diagram:
Drilldown into RemittanceBankID in schema fields_xsd1 Drilldown into RevenueSourceID in schema fields_xsd1 Drilldown into ReferenceOrderNumber in schema fields_xsd1 Drilldown into Amount in schema fields_xsd1 Drilldown into AuthorizationDate in schema fields_xsd1 Drilldown into ResponseCode in schema fields_xsd1 Drilldown into ID in schema fields_xsd1 Drilldown into AuthorizationABIEType in schema components_xsd1 Drilldown into PaymentAuthorizationABIEType in schema components_xsd1XSD Diagram of PaymentAuthorizationType in schema components_xsd1 (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:complexType name="PaymentAuthorizationType">
    <xsd:complexContent>
        <xsd:extension base="PaymentAuthorizationABIEType">
            <xsd:sequence>
                <!-- <xsd:element ref="UserArea" minOccurs="0" /> -->
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ID oagis:ID 0 unbounded
ResponseCode oagis:ResponseCode 0 (1)
AuthorizationDate oagis:AuthorizationDate 0 (1)
Amount oagis:Amount 0 (1)
ReferenceOrderNumber oagis:ReferenceOrderNumber 0 (1)
RevenueSourceID oagis:RevenueSourceID 0 (1)
RemittanceBankID oagis:RemittanceBankID 0 (1)
Collapse Derivation Tree:
Collapse References:
oagis:PaymentAuthorization
