Definition Type: Element
Name: PaymentTerm
Namespace: http://www.openapplications.org/oagis/9
Type: oagis:PaymentTermType
Containing Schema: Components.xsd
Abstract
Documentation:
Identifies the payment term for an Order or Invoice. Supports the abiility to specify an absolute due date, a number of days from a start daye, a percent discount or an absolute discount. A common term like "Net30Days" is explicitly code as either a calculated DueDateTime or a PaymentTermsDateTime and NumberOfDays.

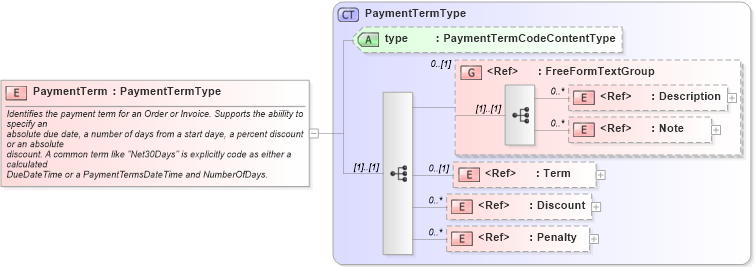

Collapse XSD Schema Diagram:
Drilldown into Penalty in schema components_xsd1 Drilldown into Discount in schema components_xsd1 Drilldown into Term in schema components_xsd1 Drilldown into Note in schema fields_xsd1 Drilldown into Description in schema fields_xsd1 Drilldown into FreeFormTextGroup in schema meta_xsd1 Drilldown into type in schema components_xsd1 Drilldown into PaymentTermType in schema components_xsd1XSD Diagram of PaymentTerm in schema components_xsd1 (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:element name="PaymentTerm" type="PaymentTermType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9">
            Identifies the payment term for an Order or Invoice. Supports the abiility to specify an
            absolute due date, a number of days from a start daye, a percent discount or an absolute
            discount. A common term like "Net30Days" is explicitly code as either a calculated
            DueDateTime or a PaymentTermsDateTime and NumberOfDays.
         </xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Description oagis:Description 0 unbounded
Note oagis:Note 0 unbounded
Term oagis:Term 0 (1)
Discount oagis:Discount 0 unbounded
Penalty oagis:Penalty 0 unbounded
<xs:group> oagis:FreeFormTextGroup 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
type oagis:type Optional
Collapse Derivation Tree:
