Documentation for Standards for Technology in Automotive Retail
Definition Type: ComplexType
Name: PayrollDeductionType
Namespace: http://www.starstandard.org/STAR/5
Containing Schema: Components.xsd
Abstract

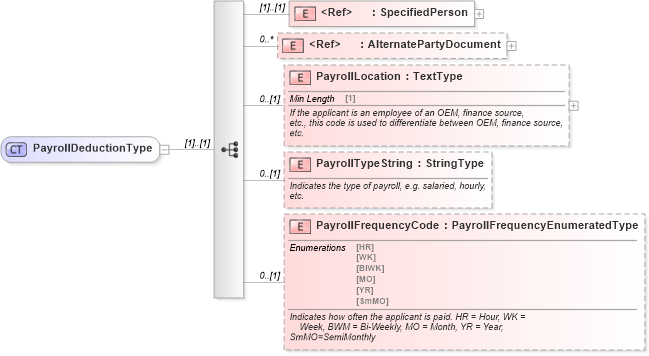

Collapse XSD Schema Diagram:
Drilldown into PayrollFrequencyCode in schema components_xsd Drilldown into PayrollTypeString in schema components_xsd Drilldown into PayrollLocation in schema components_xsd Drilldown into AlternatePartyDocument in schema components_xsd Drilldown into SpecifiedPerson in schema components_xsdXSD Diagram of PayrollDeductionType in schema components_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:complexType name="PayrollDeductionType">
    <xsd:sequence>
        <xsd:element ref="SpecifiedPerson">
            <xsd:annotation>
                <xsd:documentation>
                        This component is used to communicate the
                            personâ??s name information
                            associated with the application.
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="unbounded" minOccurs="0" ref="AlternatePartyDocument">
            <xsd:annotation>
                <xsd:documentation>
                        This component represents identification information for
                            the business party.
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="PayrollLocation" type="udt:TextType">
            <xsd:annotation>
                <xsd:documentation>
                        If the applicant is an employee of an OEM, finance source,
                            etc., this code is used to differentiate between OEM, finance source,
                            etc.
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="PayrollTypeString" type="qdt:StringType">
            <xsd:annotation>
                <xsd:documentation>
                        Indicates the type of payroll, e.g. salaried, hourly,
                        etc.
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="PayrollFrequencyCode" type="scl:PayrollFrequencyEnumeratedType">
            <xsd:annotation>
                <xsd:documentation>
                        Indicates how often the applicant is paid. HR = Hour, WK =
                            Week, BWM = Bi-Weekly, MO = Month, YR = Year,
                        SmMO=SemiMonthly
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
SpecifiedPerson star:SpecifiedPerson (1) (1)
AlternatePartyDocument star:AlternatePartyDocument 0 unbounded
PayrollLocation star:PayrollLocation 0 (1)
PayrollTypeString star:PayrollTypeString 0 (1)
PayrollFrequencyCode star:PayrollFrequencyCode 0 (1)
Collapse Derivation Tree:
Collapse References:
star:PayrollDeduction
