Definition Type: Element
Name: Person
Namespace: http://www.openapplications.org/oagis/9/reusableaggregatecorecomponentSchemaModule/0.1
Type: rcm:PersonType
Containing Schema: ReusableAggregateCoreComponent.xsd
MinOccurs 0
MaxOccurs unbounded
Abstract

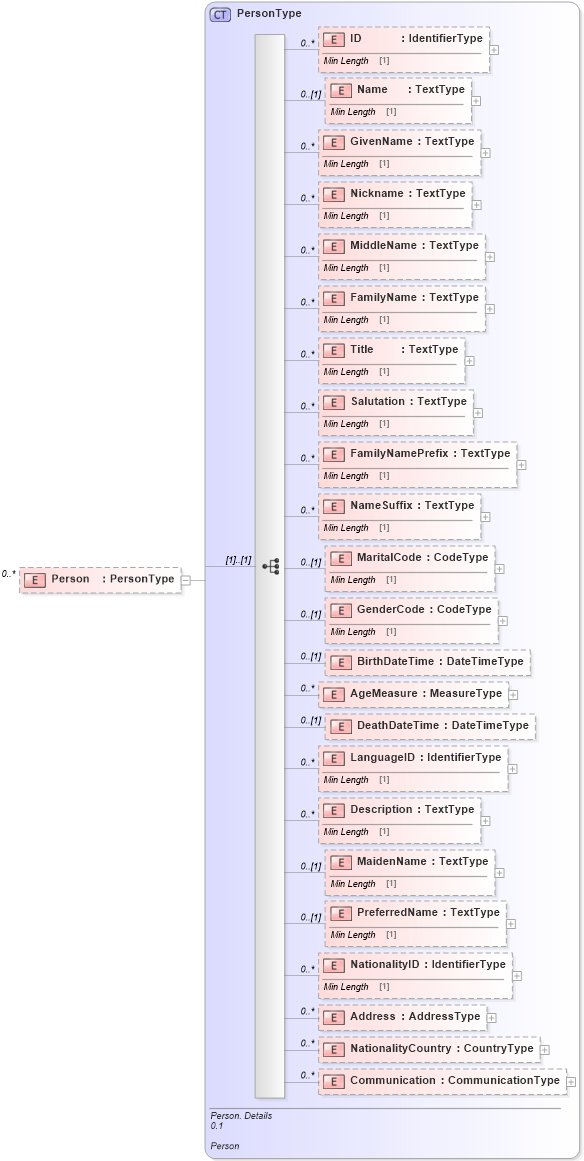

Collapse XSD Schema Diagram:
Drilldown into Communication in schema reusableaggregatecorecomponent_xsd Drilldown into NationalityCountry in schema reusableaggregatecorecomponent_xsd Drilldown into Address in schema reusableaggregatecorecomponent_xsd Drilldown into NationalityID in schema reusableaggregatecorecomponent_xsd Drilldown into PreferredName in schema reusableaggregatecorecomponent_xsd Drilldown into MaidenName in schema reusableaggregatecorecomponent_xsd Drilldown into Description in schema reusableaggregatecorecomponent_xsd Drilldown into LanguageID in schema reusableaggregatecorecomponent_xsd Drilldown into DeathDateTime in schema reusableaggregatecorecomponent_xsd Drilldown into AgeMeasure in schema reusableaggregatecorecomponent_xsd Drilldown into BirthDateTime in schema reusableaggregatecorecomponent_xsd Drilldown into GenderCode in schema reusableaggregatecorecomponent_xsd Drilldown into MaritalCode in schema reusableaggregatecorecomponent_xsd Drilldown into NameSuffix in schema reusableaggregatecorecomponent_xsd Drilldown into FamilyNamePrefix in schema reusableaggregatecorecomponent_xsd Drilldown into Salutation in schema reusableaggregatecorecomponent_xsd Drilldown into Title in schema reusableaggregatecorecomponent_xsd Drilldown into FamilyName in schema reusableaggregatecorecomponent_xsd Drilldown into MiddleName in schema reusableaggregatecorecomponent_xsd Drilldown into Nickname in schema reusableaggregatecorecomponent_xsd Drilldown into GivenName in schema reusableaggregatecorecomponent_xsd Drilldown into Name in schema reusableaggregatecorecomponent_xsd Drilldown into ID in schema reusableaggregatecorecomponent_xsd Drilldown into PersonType in schema reusableaggregatecorecomponent_xsdXSD Diagram of Person in schema reusableaggregatecorecomponent_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:element name="Person" type="rcm:PersonType" minOccurs="0" maxOccurs="unbounded" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ID rcm:ID 0 unbounded
Name rcm:Name 0 (1)
GivenName rcm:GivenName 0 unbounded
Nickname rcm:Nickname 0 unbounded
MiddleName rcm:MiddleName 0 unbounded
FamilyName rcm:FamilyName 0 unbounded
Title rcm:Title 0 unbounded
Salutation rcm:Salutation 0 unbounded
FamilyNamePrefix rcm:FamilyNamePrefix 0 unbounded
NameSuffix rcm:NameSuffix 0 unbounded
MaritalCode rcm:MaritalCode 0 (1)
GenderCode rcm:GenderCode 0 (1)
BirthDateTime rcm:BirthDateTime 0 (1)
AgeMeasure rcm:AgeMeasure 0 unbounded
DeathDateTime rcm:DeathDateTime 0 (1)
LanguageID rcm:LanguageID 0 unbounded
Description rcm:Description 0 unbounded
MaidenName rcm:MaidenName 0 (1)
PreferredName rcm:PreferredName 0 (1)
NationalityID rcm:NationalityID 0 unbounded
Address rcm:Address 0 unbounded
NationalityCountry rcm:NationalityCountry 0 unbounded
Communication rcm:Communication 0 unbounded
Collapse Derivation Tree:
