Documentation for Standards for Technology in Automotive Retail
Definition Type: Element
Name: Post
Namespace: http://www.starstandard.org/STAR/5
Type: oagis:PostType
Containing Schema: Meta.xsd
Abstract
Documentation:
The Post verb is used to describe specific processing in a more fine grained manner beyond add, change or delete processing. An example is Post JOURNAL, where information is posted to a general ledger set of financial records. The business use of the word is used instead of the data processing term for the sake of clarity. The OAGIS Meta Data documentation has more information in regards to this verbs usage and structure.

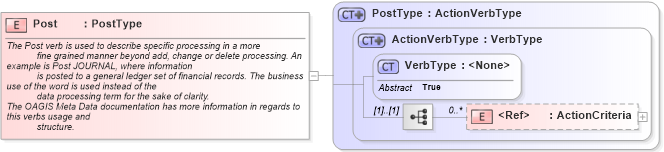

Collapse XSD Schema Diagram:
Drilldown into ActionCriteria in schema meta_xsd1 Drilldown into VerbType in schema meta_xsd1 Drilldown into ActionVerbType in schema meta_xsd1 Drilldown into PostType in schema meta_xsd1XSD Diagram of Post in schema meta_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:element name="Post" type="oagis:PostType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9.0">The Post verb is used to describe specific processing in a more
            fine grained manner beyond add, change or delete processing. An example is Post JOURNAL, where information
            is posted to a general ledger set of financial records. The business use of the word is used instead of the
            data processing term for the sake of clarity.</xsd:documentation>
        <xsd:documentation>The OAGIS Meta Data documentation has more information in regards to this verbs usage and
            structure.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ActionCriteria oagis:ActionCriteria 0 unbounded
Collapse Derivation Tree:
