Documentation for Standards for Technology in Automotive Retail
Definition Type: Element
Name: Process
Namespace: http://www.starstandard.org/STAR/5
Type: oagis:ProcessType
Containing Schema: Meta.xsd
Abstract
Documentation:
The Process verb is used to request processing of the associated noun by the receiving application or business to party. In a typical external exchange scenario a Process BOD is considered to be a legally binding message. For example, if a customer sends a ProcessPurchaseOrder BOD to a supplier and the supplier acknowledges with a positive AcknowledgePurchaseOrder, then the customer is obligated to fulfill the agreement, unless of course other BODs are allowed to cancel or change the original order. The OAGIS Meta Data documentation has more information in regards to this verbs usage and structure.
Collapse XSD Schema Diagram:

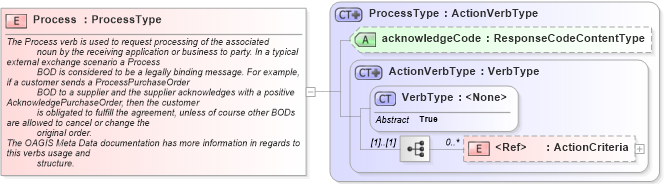

Drilldown into ActionCriteria in schema meta_xsd1 Drilldown into VerbType in schema meta_xsd1 Drilldown into ActionVerbType in schema meta_xsd1 Drilldown into acknowledgeCode in schema meta_xsd1 Drilldown into ProcessType in schema meta_xsd1XSD Diagram of Process in schema meta_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:element name="Process" type="oagis:ProcessType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9.0">The Process verb is used to request processing of the associated
            noun by the receiving application or business to party. In a typical external exchange scenario a Process
            BOD is considered to be a legally binding message. For example, if a customer sends a ProcessPurchaseOrder
            BOD to a supplier and the supplier acknowledges with a positive AcknowledgePurchaseOrder, then the customer
            is obligated to fulfill the agreement, unless of course other BODs are allowed to cancel or change the
            original order.</xsd:documentation>
        <xsd:documentation>The OAGIS Meta Data documentation has more information in regards to this verbs usage and
            structure.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ActionCriteria oagis:ActionCriteria 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
acknowledgeCode oagis:acknowledgeCode Optional
Collapse Derivation Tree:
