Definition Type: ComplexType
Name: ProfessionalSkillType
Namespace: http://www.openapplications.org/oagis/9
Containing Schema: Components.xsd
Abstract

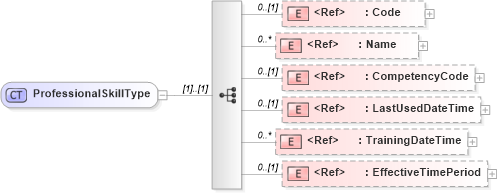

Collapse XSD Schema Diagram:
Drilldown into EffectiveTimePeriod in schema components_xsd1 Drilldown into TrainingDateTime in schema fields_xsd1 Drilldown into LastUsedDateTime in schema fields_xsd1 Drilldown into CompetencyCode in schema fields_xsd1 Drilldown into Name in schema fields_xsd1 Drilldown into Code in schema fields_xsd1XSD Diagram of ProfessionalSkillType in schema components_xsd1 (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:complexType name="ProfessionalSkillType">
    <xsd:sequence>
        <xsd:element minOccurs="0" ref="Code" />
        <xsd:element maxOccurs="unbounded" minOccurs="0" ref="Name" />
        <xsd:element minOccurs="0" ref="CompetencyCode" />
        <xsd:element minOccurs="0" ref="LastUsedDateTime" />
        <xsd:element maxOccurs="unbounded" minOccurs="0" ref="TrainingDateTime" />
        <xsd:element minOccurs="0" ref="EffectiveTimePeriod" />
        <!-- <xsd:element ref="UserArea" minOccurs="0" /> -->
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Code oagis:Code 0 (1)
Name oagis:Name 0 unbounded
CompetencyCode oagis:CompetencyCode 0 (1)
LastUsedDateTime oagis:LastUsedDateTime 0 (1)
TrainingDateTime oagis:TrainingDateTime 0 unbounded
EffectiveTimePeriod oagis:EffectiveTimePeriod 0 (1)
Collapse Derivation Tree:
Collapse References:
oagis:Skill
