Documentation for Standards for Technology in Automotive Retail
Definition Type: Element
Name: ProjectReference
Namespace: http://www.openapplications.org/oagis/9
Type: oagis:ProjectReferenceType
Containing Schema: Components.xsd
Abstract
Documentation:
Identifies a project that is associated with the given component.

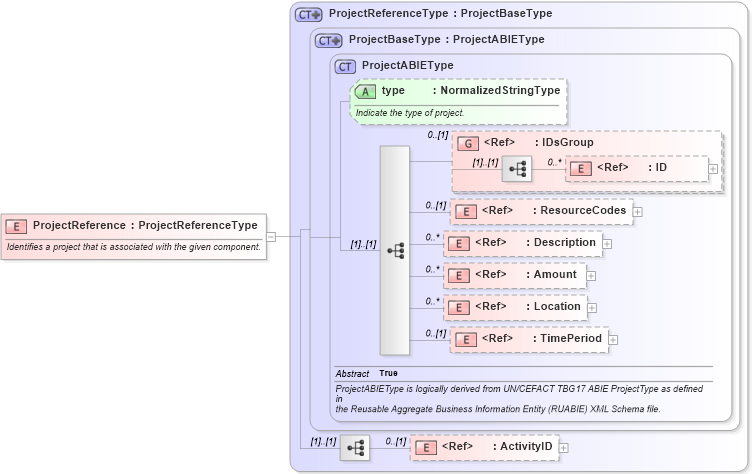

Collapse XSD Schema Diagram:
Drilldown into ActivityID in schema fields_xsd1 Drilldown into TimePeriod in schema components_xsd1 Drilldown into Location in schema components_xsd1 Drilldown into Amount in schema fields_xsd1 Drilldown into Description in schema fields_xsd1 Drilldown into ResourceCodes in schema components_xsd1 Drilldown into ID in schema fields_xsd1 Drilldown into IDsGroup in schema components_xsd1 Drilldown into type in schema components_xsd1 Drilldown into ProjectABIEType in schema components_xsd1 Drilldown into ProjectBaseType in schema components_xsd1 Drilldown into ProjectReferenceType in schema components_xsd1XSD Diagram of ProjectReference in schema components_xsd1 (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:element name="ProjectReference" type="ProjectReferenceType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9">
            Identifies a project that is associated with the given component.
         </xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ID oagis:ID 0 unbounded
ResourceCodes oagis:ResourceCodes 0 (1)
Description oagis:Description 0 unbounded
Amount oagis:Amount 0 unbounded
Location oagis:Location 0 unbounded
TimePeriod oagis:TimePeriod 0 (1)
ActivityID oagis:ActivityID 0 (1)
<xs:group> oagis:IDsGroup 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
type oagis:type (Optional)
Collapse Derivation Tree:
