Documentation for Standards for Technology in Automotive Retail
Definition Type: Element
Name: ProximityMeasureGroup
Namespace: http://www.starstandard.org/STAR/5
Type: star:ProximityMeasureGroupType
Containing Schema: Components.xsd
Abstract
Documentation:
The ProximityMeasure component is used to identify the measure of relative distance and how that distance is being measured, i.e., driving distance, direct distance, etc.
Collapse XSD Schema Diagram:

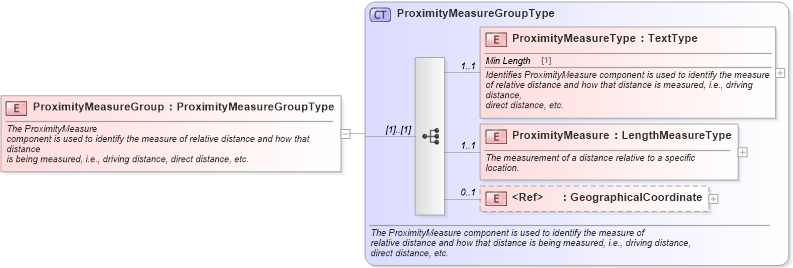

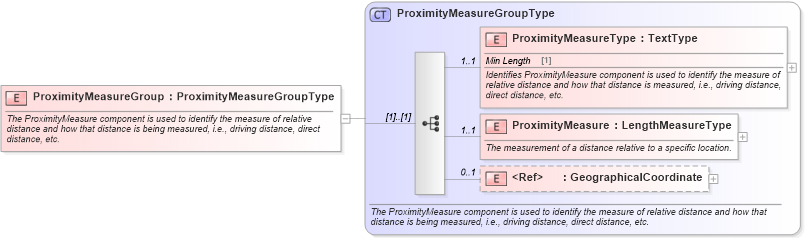

Drilldown into GeographicalCoordinate in schema components_xsd Drilldown into ProximityMeasure in schema components_xsd Drilldown into ProximityMeasureType in schema components_xsd Drilldown into ProximityMeasureGroupType in schema components_xsdXSD Diagram of ProximityMeasureGroup in schema components_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:element name="ProximityMeasureGroup" type="ProximityMeasureGroupType">
    <xsd:annotation>
        <xsd:documentation source="http://www.starstandard.org/STAR/5"> The ProximityMeasure
                component is used to identify the measure of relative distance and how that distance
                is being measured, i.e., driving distance, direct distance, etc.
            </xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ProximityMeasureType star:ProximityMeasureType 1 1
ProximityMeasure star:ProximityMeasure 1 1
GeographicalCoordinate star:GeographicalCoordinate 0 1
Collapse Derivation Tree:
