Documentation for Standards for Technology in Automotive Retail
Definition Type: ComplexType
Name: QualificationTermType
Namespace: http://www.openapplications.org/oagis/9
Containing Schema: OrderManagementComponents.xsd
Abstract

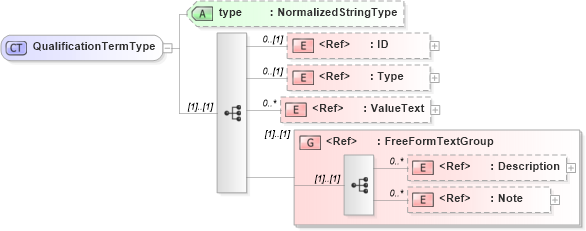

Collapse XSD Schema Diagram:
Drilldown into Note in schema fields_xsd1 Drilldown into Description in schema fields_xsd1 Drilldown into FreeFormTextGroup in schema meta_xsd1 Drilldown into ValueText in schema fields_xsd1 Drilldown into Type in schema fields_xsd1 Drilldown into ID in schema fields_xsd1 Drilldown into type in schema ordermanagementcomponents_xsdXSD Diagram of QualificationTermType in schema ordermanagementcomponents_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:complexType name="QualificationTermType">
    <xsd:sequence>
        <xsd:element ref="ID" minOccurs="0" />
        <xsd:element ref="Type" minOccurs="0" />
        <xsd:element ref="ValueText" minOccurs="0" maxOccurs="unbounded" />
        <xsd:group ref="FreeFormTextGroup" />
        <!-- <xsd:element ref="UserArea" minOccurs="0"/> -->
    </xsd:sequence>
    <xsd:attribute name="type" type="NormalizedStringType" use="optional" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ID oagis:ID 0 (1)
Type oagis:Type 0 (1)
ValueText oagis:ValueText 0 unbounded
Description oagis:Description 0 unbounded
Note oagis:Note 0 unbounded
<xs:group> oagis:FreeFormTextGroup (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
type oagis:type Optional
Collapse Derivation Tree:
Collapse References:
oagis:QualificationTerm
