Definition Type: ComplexType
Name: RepairOrderVehicleLineItemType
Namespace: http://www.starstandard.org/STAR/5
Containing Schema: IPWarrantyClaim.xsd
Abstract
Documentation:
.

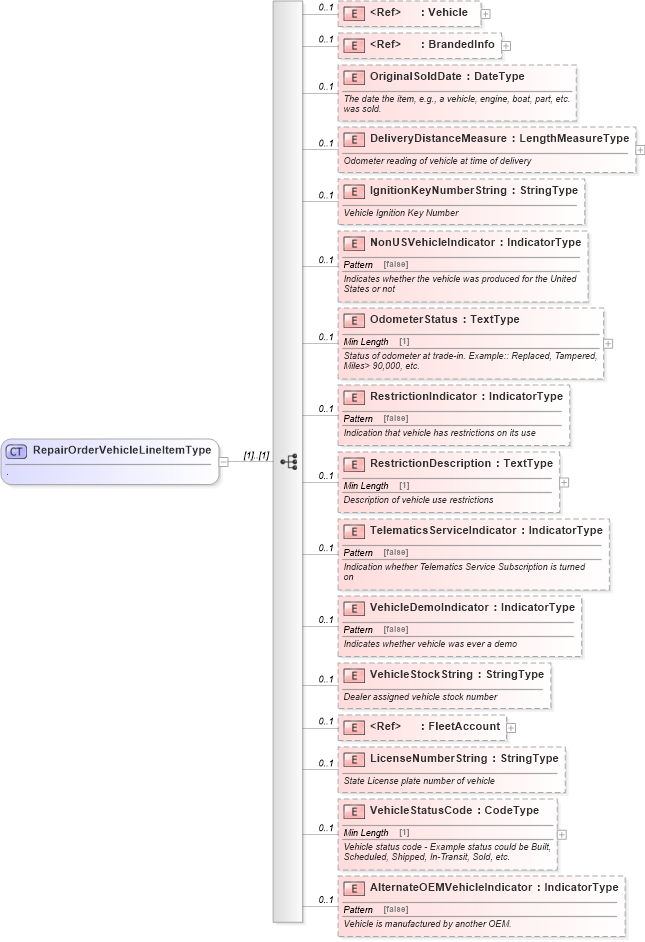

Collapse XSD Schema Diagram:
Drilldown into AlternateOEMVehicleIndicator in schema ipwarrantyclaim_xsd Drilldown into VehicleStatusCode in schema ipwarrantyclaim_xsd Drilldown into LicenseNumberString in schema ipwarrantyclaim_xsd Drilldown into FleetAccount in schema components_xsd Drilldown into VehicleStockString in schema ipwarrantyclaim_xsd Drilldown into VehicleDemoIndicator in schema ipwarrantyclaim_xsd Drilldown into TelematicsServiceIndicator in schema ipwarrantyclaim_xsd Drilldown into RestrictionDescription in schema ipwarrantyclaim_xsd Drilldown into RestrictionIndicator in schema ipwarrantyclaim_xsd Drilldown into OdometerStatus in schema ipwarrantyclaim_xsd Drilldown into NonUSVehicleIndicator in schema ipwarrantyclaim_xsd Drilldown into IgnitionKeyNumberString in schema ipwarrantyclaim_xsd Drilldown into DeliveryDistanceMeasure in schema ipwarrantyclaim_xsd Drilldown into OriginalSoldDate in schema ipwarrantyclaim_xsd Drilldown into BrandedInfo in schema components_xsd Drilldown into Vehicle in schema components_xsdXSD Diagram of RepairOrderVehicleLineItemType in schema ipwarrantyclaim_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:complexType name="RepairOrderVehicleLineItemType">
    <xsd:annotation>
        <xsd:documentation source="http://www.starstandard.org/STAR/5">.</xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element ref="Vehicle" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="BrandedInfo" minOccurs="0" maxOccurs="1" />
        <xsd:element name="OriginalSoldDate" type="udt:DateType" minOccurs="0" maxOccurs="1">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">The date the item, e.g., a vehicle, engine, boat, part, etc.
                  was sold.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="DeliveryDistanceMeasure" type="sqdt:LengthMeasureType" minOccurs="0" maxOccurs="1">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Odometer reading of vehicle at time of delivery
               </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="IgnitionKeyNumberString" type="qdt:StringType" minOccurs="0" maxOccurs="1">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Vehicle Ignition Key Number</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="NonUSVehicleIndicator" type="udt:IndicatorType" minOccurs="0" maxOccurs="1">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Indicates whether the vehicle was produced for the United
                  States or not</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="OdometerStatus" type="udt:TextType" minOccurs="0" maxOccurs="1">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Status of odometer at trade-in. Example:: Replaced, Tampered,
                  Miles&gt; 90,000, etc.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="RestrictionIndicator" type="udt:IndicatorType" minOccurs="0" maxOccurs="1">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Indication that vehicle has restrictions on its use
               </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="RestrictionDescription" type="udt:TextType" minOccurs="0" maxOccurs="1">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Description of vehicle use restrictions</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="TelematicsServiceIndicator" type="udt:IndicatorType" minOccurs="0" maxOccurs="1">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Indication whether Telematics Service Subscription is turned
                  on</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="VehicleDemoIndicator" type="udt:IndicatorType" minOccurs="0" maxOccurs="1">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Indicates whether vehicle was ever a demo</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="VehicleStockString" type="qdt:StringType" minOccurs="0" maxOccurs="1">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Dealer assigned vehicle stock number</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="FleetAccount" minOccurs="0" maxOccurs="1" />
        <xsd:element name="LicenseNumberString" type="qdt:StringType" minOccurs="0" maxOccurs="1">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">State License plate number of vehicle</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="VehicleStatusCode" type="udt:CodeType" minOccurs="0" maxOccurs="1">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Vehicle status code - Example status could be Built,
                  Scheduled, Shipped, In-Transit, Sold, etc.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="AlternateOEMVehicleIndicator" type="udt:IndicatorType" minOccurs="0" maxOccurs="1">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation>Vehicle is manufactured by another OEM.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Vehicle star:Vehicle 0 1
BrandedInfo star:BrandedInfo 0 1
OriginalSoldDate star:OriginalSoldDate 0 1
DeliveryDistanceMeasure star:DeliveryDistanceMeasure 0 1
IgnitionKeyNumberString star:IgnitionKeyNumberString 0 1
NonUSVehicleIndicator star:NonUSVehicleIndicator 0 1
OdometerStatus star:OdometerStatus 0 1
RestrictionIndicator star:RestrictionIndicator 0 1
RestrictionDescription star:RestrictionDescription 0 1
TelematicsServiceIndicator star:TelematicsServiceIndicator 0 1
VehicleDemoIndicator star:VehicleDemoIndicator 0 1
VehicleStockString star:VehicleStockString 0 1
FleetAccount star:FleetAccount 0 1
LicenseNumberString star:LicenseNumberString 0 1
VehicleStatusCode star:VehicleStatusCode 0 1
AlternateOEMVehicleIndicator star:AlternateOEMVehicleIndicator 0 1
Collapse Derivation Tree:
Collapse References:
star:RepairOrderVehicleLineItem
