Documentation for Standards for Technology in Automotive Retail
Definition Type: ComplexType
Name: ReplacementSerialNumbersType
Namespace: http://www.starstandard.org/STAR/5
Containing Schema: Components.xsd
Abstract

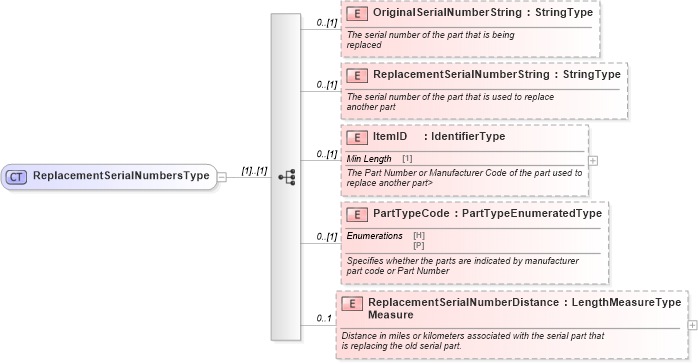

Collapse XSD Schema Diagram:
Drilldown into ReplacementSerialNumberDistanceMeasure in schema components_xsd Drilldown into PartTypeCode in schema components_xsd Drilldown into ItemID in schema components_xsd Drilldown into ReplacementSerialNumberString in schema components_xsd Drilldown into OriginalSerialNumberString in schema components_xsdXSD Diagram of ReplacementSerialNumbersType in schema components_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:complexType name="ReplacementSerialNumbersType">
    <xsd:sequence>
        <xsd:element minOccurs="0" name="OriginalSerialNumberString" type="qdt:StringType">
            <xsd:annotation>
                <xsd:documentation>
                        The serial number of the part that is being
                        replaced
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="ReplacementSerialNumberString" type="qdt:StringType">
            <xsd:annotation>
                <xsd:documentation>
                        The serial number of the part that is used to replace
                            another part
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="ItemID" type="udt:IdentifierType">
            <xsd:annotation>
                <xsd:documentation>
                        The Part Number or Manufacturer Code of the part used to
                            replace another part&gt;
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="PartTypeCode" type="scl:PartTypeEnumeratedType">
            <xsd:annotation>
                <xsd:documentation>
                        Specifies whether the parts are indicated by manufacturer
                            part code or Part Number
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="1" minOccurs="0" name="ReplacementSerialNumberDistanceMeasure" type="sqdt:LengthMeasureType">
            <xsd:annotation>
                <xsd:documentation> Distance in miles or kilometers associated with the serial part that
                is replacing the old serial part. </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
OriginalSerialNumberString star:OriginalSerialNumberString 0 (1)
ReplacementSerialNumberString star:ReplacementSerialNumberString 0 (1)
ItemID star:ItemID 0 (1)
PartTypeCode star:PartTypeCode 0 (1)
ReplacementSerialNumberDistanceMeasure star:ReplacementSerialNumberDistanceMeasure 0 1
Collapse Derivation Tree:
Collapse References:
star:ReplacementSerialNumbers
