Definition Type: ComplexType
Name: SalesLeadDetailType
Namespace: http://www.starstandard.org/STAR/5
Containing Schema: SalesLead.xsd
Abstract
Collapse XSD Schema Diagram:

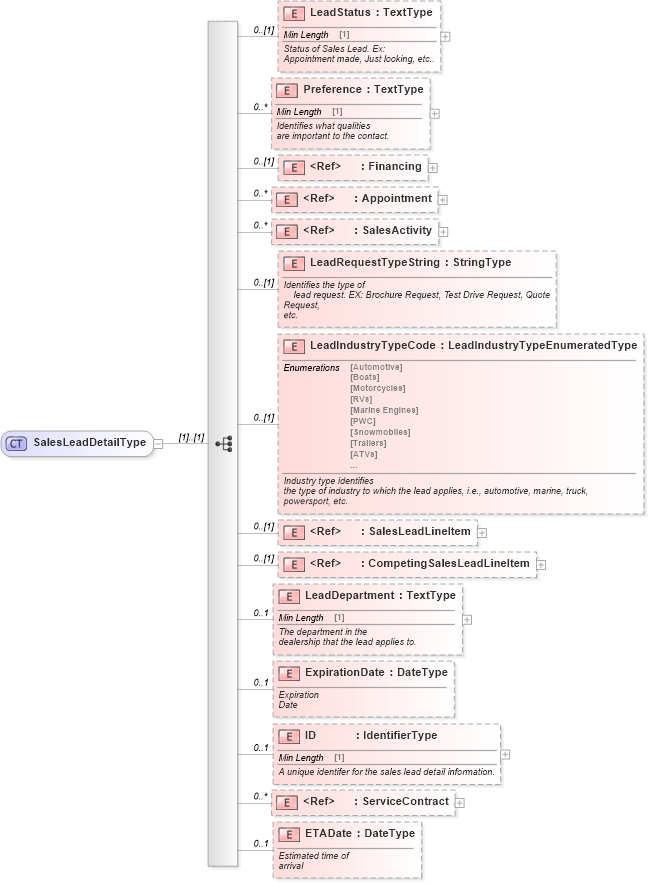

Drilldown into ETADate in schema saleslead_xsd Drilldown into ServiceContract in schema components_xsd Drilldown into ID in schema saleslead_xsd Drilldown into ExpirationDate in schema saleslead_xsd Drilldown into LeadDepartment in schema saleslead_xsd Drilldown into CompetingSalesLeadLineItem in schema saleslead_xsd Drilldown into SalesLeadLineItem in schema saleslead_xsd Drilldown into LeadIndustryTypeCode in schema saleslead_xsd Drilldown into LeadRequestTypeString in schema saleslead_xsd Drilldown into SalesActivity in schema components_xsd Drilldown into Appointment in schema components_xsd Drilldown into Financing in schema components_xsd Drilldown into Preference in schema saleslead_xsd Drilldown into LeadStatus in schema saleslead_xsdXSD Diagram of SalesLeadDetailType in schema saleslead_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:complexType name="SalesLeadDetailType">
    <xsd:sequence>
        <xsd:element name="LeadStatus" type="udt:TextType" minOccurs="0">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Status of Sales Lead. Ex:
                Appointment made, Just looking, etc..</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="Preference" type="udt:TextType" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Identifies what qualities
                are important to the contact.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="Financing" minOccurs="0" />
        <xsd:element ref="Appointment" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="SalesActivity" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element name="LeadRequestTypeString" type="qdt:StringType" minOccurs="0">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Identifies the type of
                lead request. EX: Brochure Request, Test Drive Request, Quote Request,
            etc.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="LeadIndustryTypeCode" type="scl:LeadIndustryTypeEnumeratedType" minOccurs="0">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Industry type identifies
                the type of industry to which the lead applies, i.e., automotive, marine, truck,
                powersport, etc.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="SalesLeadLineItem" minOccurs="0" />
        <xsd:element ref="CompetingSalesLeadLineItem" minOccurs="0" />
        <xsd:element name="LeadDepartment" type="udt:TextType" minOccurs="0" maxOccurs="1">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">The department in the
                dealership that the lead applies to.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="ExpirationDate" type="udt:DateType" minOccurs="0" maxOccurs="1">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Expiration
            Date</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="ID" type="udt:IdentifierType" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org/STAR/5">
                        A unique identifer for the sales lead detail information.
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="ServiceContract" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element name="ETADate" type="udt:DateType" minOccurs="0" maxOccurs="1">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Estimated time of
            arrival</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
LeadStatus star:LeadStatus 0 (1)
Preference star:Preference 0 unbounded
Financing star:Financing 0 (1)
Appointment star:Appointment 0 unbounded
SalesActivity star:SalesActivity 0 unbounded
LeadRequestTypeString star:LeadRequestTypeString 0 (1)
LeadIndustryTypeCode star:LeadIndustryTypeCode 0 (1)
SalesLeadLineItem star:SalesLeadLineItem 0 (1)
CompetingSalesLeadLineItem star:CompetingSalesLeadLineItem 0 (1)
LeadDepartment star:LeadDepartment 0 1
ExpirationDate star:ExpirationDate 0 1
ID star:ID 0 1
ServiceContract star:ServiceContract 0 unbounded
ETADate star:ETADate 0 1
Collapse Derivation Tree:
Collapse References:
star:SalesLeadDetail
