Documentation for Standards for Technology in Automotive Retail
Definition Type: Element
Name: SeriesName
Namespace: http://www.starstandard.org/STAR/5
Type: udt:CodeType
Containing Schema: Components.xsd
MinOccurs 0
MaxOccurs 1
Abstract
Documentation:
The name corresponding to the SeriesCode (i.e., trim level). This is different from Make and Model. Example, Limited Edition

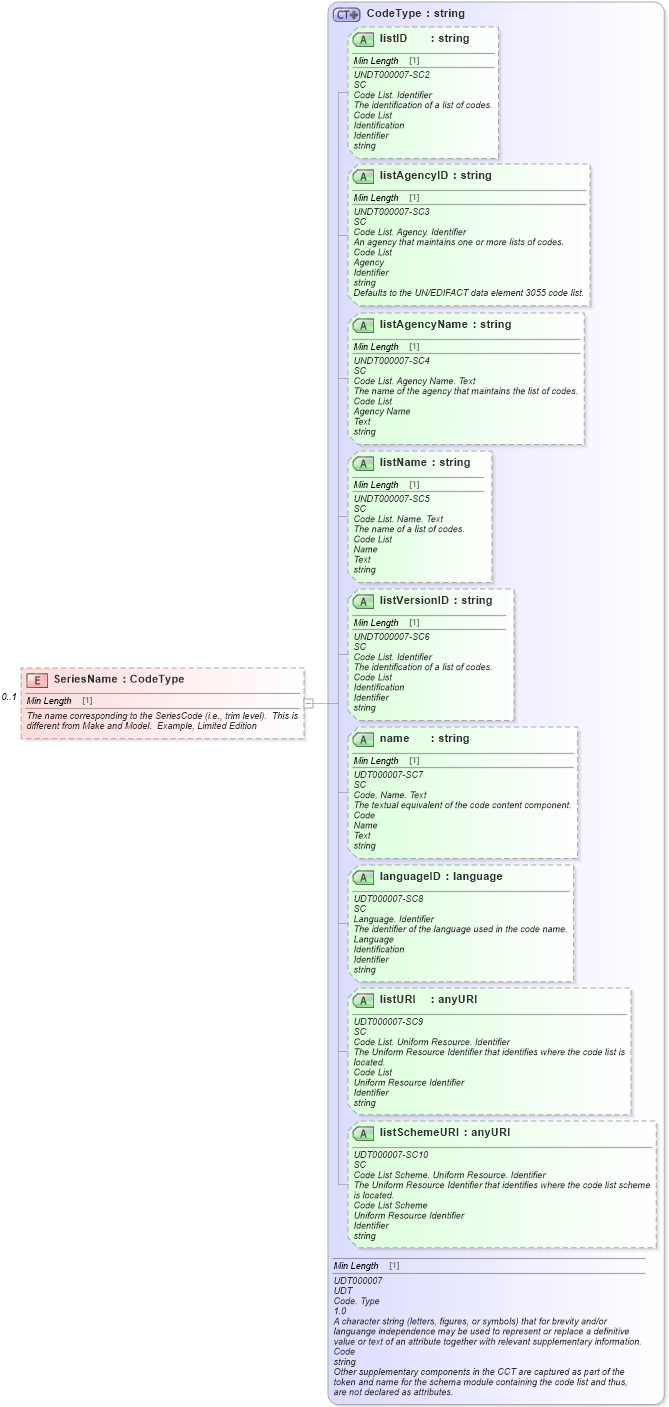

Collapse XSD Schema Diagram:
Drilldown into listSchemeURI in schema unqualifieddatatypes_xsd Drilldown into listURI in schema unqualifieddatatypes_xsd Drilldown into languageID in schema unqualifieddatatypes_xsd Drilldown into name in schema unqualifieddatatypes_xsd Drilldown into listVersionID in schema unqualifieddatatypes_xsd Drilldown into listName in schema unqualifieddatatypes_xsd Drilldown into listAgencyName in schema unqualifieddatatypes_xsd Drilldown into listAgencyID in schema unqualifieddatatypes_xsd Drilldown into listID in schema unqualifieddatatypes_xsd Drilldown into CodeType in schema unqualifieddatatypes_xsdXSD Diagram of SeriesName in schema components_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:element maxOccurs="1" minOccurs="0" name="SeriesName" type="udt:CodeType">
    <xsd:annotation>
        <xsd:documentation>The name corresponding to the SeriesCode (i.e., trim level).  This is different from Make and Model.  Example, Limited Edition</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Attributes:
Name Type Default Value Use
listID udt:listID Optional
listAgencyID udt:listAgencyID Optional
listAgencyName udt:listAgencyName Optional
listName udt:listName Optional
listVersionID udt:listVersionID Optional
name udt:name Optional
languageID udt:languageID Optional
listURI udt:listURI Optional
listSchemeURI udt:listSchemeURI Optional
Collapse Derivation Tree:
