Documentation for Standards for Technology in Automotive Retail
Definition Type: ComplexType
Name: ServiceAdvisoryReceiptAcknowledgmentDetailType
Namespace: http://www.starstandard.org/STAR/5
Containing Schema: ServiceAdvisoryReceiptAcknowledgment.xsd
Abstract

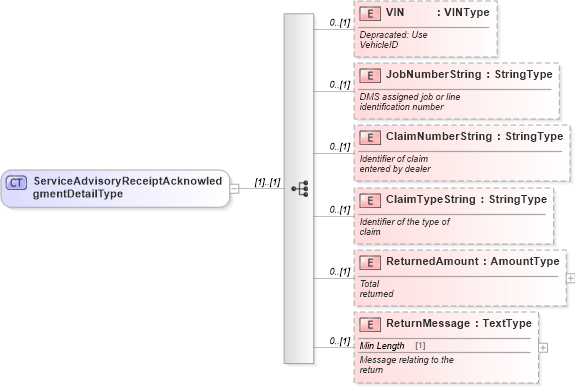

Collapse XSD Schema Diagram:
Drilldown into ReturnMessage in schema serviceadvisoryreceiptacknowledgment_xsd Drilldown into ReturnedAmount in schema serviceadvisoryreceiptacknowledgment_xsd Drilldown into ClaimTypeString in schema serviceadvisoryreceiptacknowledgment_xsd Drilldown into ClaimNumberString in schema serviceadvisoryreceiptacknowledgment_xsd Drilldown into JobNumberString in schema serviceadvisoryreceiptacknowledgment_xsd Drilldown into VIN in schema serviceadvisoryreceiptacknowledgment_xsdXSD Diagram of ServiceAdvisoryReceiptAcknowledgmentDetailType in schema serviceadvisoryreceiptacknowledgment_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:complexType name="ServiceAdvisoryReceiptAcknowledgmentDetailType">
    <xsd:sequence>
        <!--<xsd:element ref="DocumentID" minOccurs="0" />-->
        <xsd:element name="VIN" type="sqdt:VINType" minOccurs="0">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Depracated: Use
            VehicleID</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="JobNumberString" type="qdt:StringType" minOccurs="0">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">DMS assigned job or line
                identification number</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="ClaimNumberString" type="qdt:StringType" minOccurs="0">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Identifier of claim
                entered by dealer</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="ClaimTypeString" type="qdt:StringType" minOccurs="0">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Identifier of the type of
                claim</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="ReturnedAmount" type="udt:AmountType" minOccurs="0">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Total
            returned</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="ReturnMessage" type="udt:TextType" minOccurs="0">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Message relating to the
                return</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
VIN star:VIN 0 (1)
JobNumberString star:JobNumberString 0 (1)
ClaimNumberString star:ClaimNumberString 0 (1)
ClaimTypeString star:ClaimTypeString 0 (1)
ReturnedAmount star:ReturnedAmount 0 (1)
ReturnMessage star:ReturnMessage 0 (1)
Collapse Derivation Tree:
Collapse References:
star:ServiceAdvisoryReceiptAcknowledgmentDetail
