Definition Type: ComplexType
Name: ServiceAppointmentExtendedType
Namespace: http://www.starstandard.org/STAR/5
Type: star:ServiceAppointmentBaseType
Containing Schema: Components.xsd
Abstract

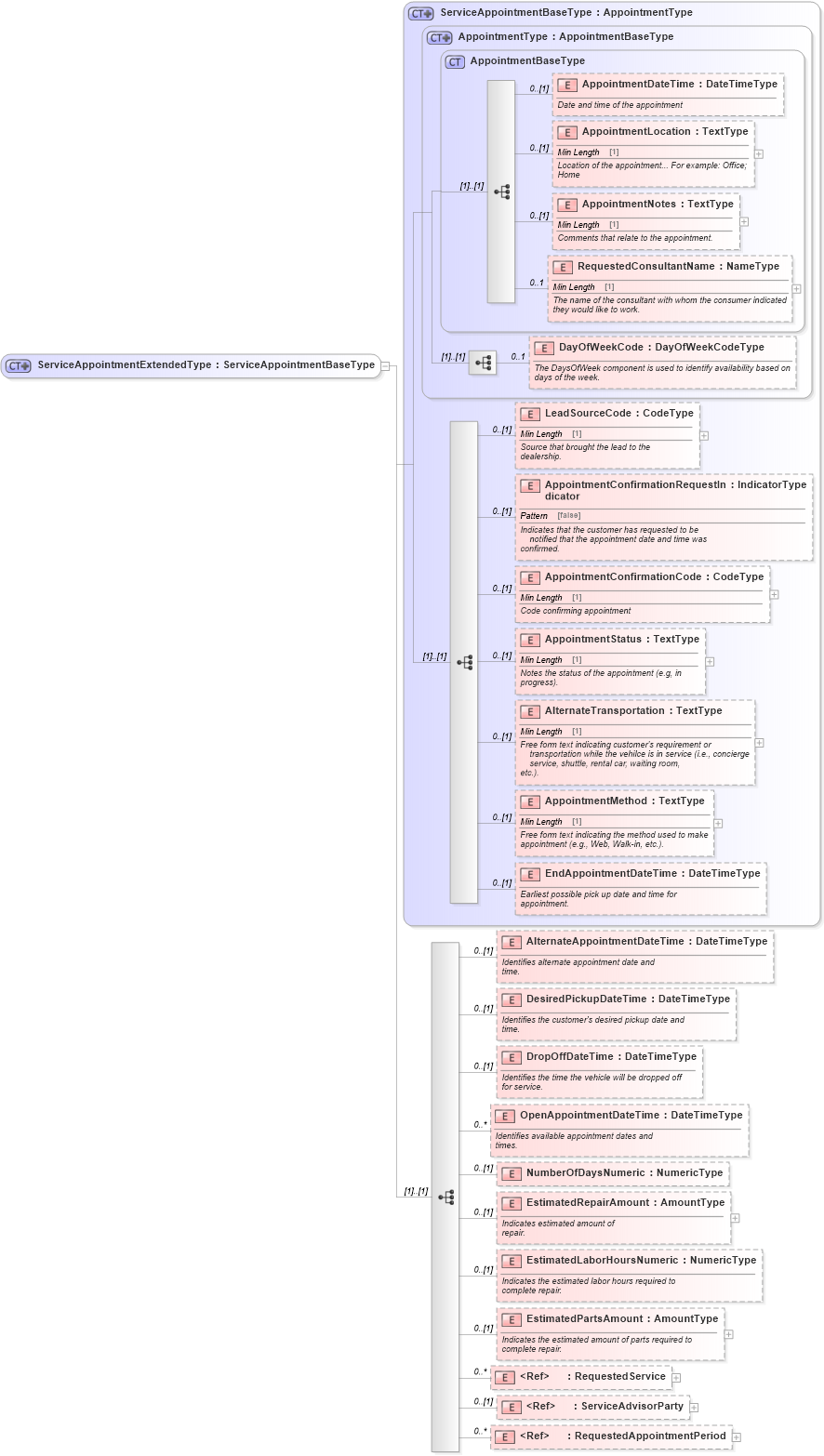

Collapse XSD Schema Diagram:
Drilldown into RequestedAppointmentPeriod in schema components_xsd Drilldown into ServiceAdvisorParty in schema components_xsd Drilldown into RequestedService in schema components_xsd Drilldown into EstimatedPartsAmount in schema components_xsd Drilldown into EstimatedLaborHoursNumeric in schema components_xsd Drilldown into EstimatedRepairAmount in schema components_xsd Drilldown into NumberOfDaysNumeric in schema components_xsd Drilldown into OpenAppointmentDateTime in schema components_xsd Drilldown into DropOffDateTime in schema components_xsd Drilldown into DesiredPickupDateTime in schema components_xsd Drilldown into AlternateAppointmentDateTime in schema components_xsd Drilldown into EndAppointmentDateTime in schema components_xsd Drilldown into AppointmentMethod in schema components_xsd Drilldown into AlternateTransportation in schema components_xsd Drilldown into AppointmentStatus in schema components_xsd Drilldown into AppointmentConfirmationCode in schema components_xsd Drilldown into AppointmentConfirmationRequestIndicator in schema components_xsd Drilldown into LeadSourceCode in schema components_xsd Drilldown into DayOfWeekCode in schema components_xsd Drilldown into RequestedConsultantName in schema components_xsd Drilldown into AppointmentNotes in schema components_xsd Drilldown into AppointmentLocation in schema components_xsd Drilldown into AppointmentDateTime in schema components_xsd Drilldown into AppointmentBaseType in schema components_xsd Drilldown into AppointmentType in schema components_xsd Drilldown into ServiceAppointmentBaseType in schema components_xsdXSD Diagram of ServiceAppointmentExtendedType in schema components_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:complexType name="ServiceAppointmentExtendedType">
    <xsd:complexContent>
        <xsd:extension base="ServiceAppointmentBaseType">
            <xsd:sequence>
                <xsd:element minOccurs="0" name="AlternateAppointmentDateTime" type="udt:DateTimeType">
                    <xsd:annotation>
                        <xsd:documentation>
                                Identifies alternate appointment date and
                                time.
                            </xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element minOccurs="0" name="DesiredPickupDateTime" type="udt:DateTimeType">
                    <xsd:annotation>
                        <xsd:documentation>
                                Identifies the customer's desired pickup date and
                                    time.
                            </xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element minOccurs="0" name="DropOffDateTime" type="udt:DateTimeType">
                    <xsd:annotation>
                        <xsd:documentation>
                                Identifies the time the vehicle will be dropped off
                                    for service.
                            </xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element maxOccurs="unbounded" minOccurs="0" name="OpenAppointmentDateTime" type="udt:DateTimeType">
                    <xsd:annotation>
                        <xsd:documentation>
                                Identifies available appointment dates and
                                times.
                            </xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element minOccurs="0" name="NumberOfDaysNumeric" type="udt:NumericType">
                    <xsd:annotation>
                        <xsd:documentation>
                        </xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element minOccurs="0" name="EstimatedRepairAmount" type="udt:AmountType">
                    <xsd:annotation>
                        <xsd:documentation>
                                Indicates estimated amount of
                                repair.
                            </xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element minOccurs="0" name="EstimatedLaborHoursNumeric" type="udt:NumericType">
                    <xsd:annotation>
                        <xsd:documentation>
                                Indicates the estimated labor hours required to
                                    complete repair.
                            </xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element minOccurs="0" name="EstimatedPartsAmount" type="udt:AmountType">
                    <xsd:annotation>
                        <xsd:documentation>
                                Indicates the estimated amount of parts required to
                                    complete repair.
                            </xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element maxOccurs="unbounded" minOccurs="0" ref="RequestedService">
                    <xsd:annotation>
                        <xsd:documentation>
                                Communicates the type of service to be performed
                                    during the service appointment.
                            </xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element minOccurs="0" ref="ServiceAdvisorParty">
                    <xsd:annotation>
                        <xsd:documentation>
                                Represents the Service Advisor for the Service
                                    Appointment
                            </xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element maxOccurs="unbounded" minOccurs="0" ref="RequestedAppointmentPeriod" />
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
AppointmentDateTime star:AppointmentDateTime 0 (1)
AppointmentLocation star:AppointmentLocation 0 (1)
AppointmentNotes star:AppointmentNotes 0 (1)
RequestedConsultantName star:RequestedConsultantName 0 1
DayOfWeekCode star:DayOfWeekCode 0 1
LeadSourceCode star:LeadSourceCode 0 (1)
AppointmentConfirmationRequestIndicator star:AppointmentConfirmationRequestIndicator 0 (1)
AppointmentConfirmationCode star:AppointmentConfirmationCode 0 (1)
AppointmentStatus star:AppointmentStatus 0 (1)
AlternateTransportation star:AlternateTransportation 0 (1)
AppointmentMethod star:AppointmentMethod 0 (1)
EndAppointmentDateTime star:EndAppointmentDateTime 0 (1)
AlternateAppointmentDateTime star:AlternateAppointmentDateTime 0 (1)
DesiredPickupDateTime star:DesiredPickupDateTime 0 (1)
DropOffDateTime star:DropOffDateTime 0 (1)
OpenAppointmentDateTime star:OpenAppointmentDateTime 0 unbounded
NumberOfDaysNumeric star:NumberOfDaysNumeric 0 (1)
EstimatedRepairAmount star:EstimatedRepairAmount 0 (1)
EstimatedLaborHoursNumeric star:EstimatedLaborHoursNumeric 0 (1)
EstimatedPartsAmount star:EstimatedPartsAmount 0 (1)
RequestedService star:RequestedService 0 unbounded
ServiceAdvisorParty star:ServiceAdvisorParty 0 (1)
RequestedAppointmentPeriod star:RequestedAppointmentPeriod 0 unbounded
Collapse Derivation Tree:
Collapse References:
star:Appointment, star:ServiceAppointmentExtended
