Definition Type: Element
Name: ServiceAppointmentVehicleLineItem
Namespace: http://www.starstandard.org/STAR/5
Type: star:ServiceAppointmentVehicleLineItemType
Containing Schema: ServiceAppointment.xsd
Abstract
Documentation:
Detail information regarding a vehicle for a particular service appointment.

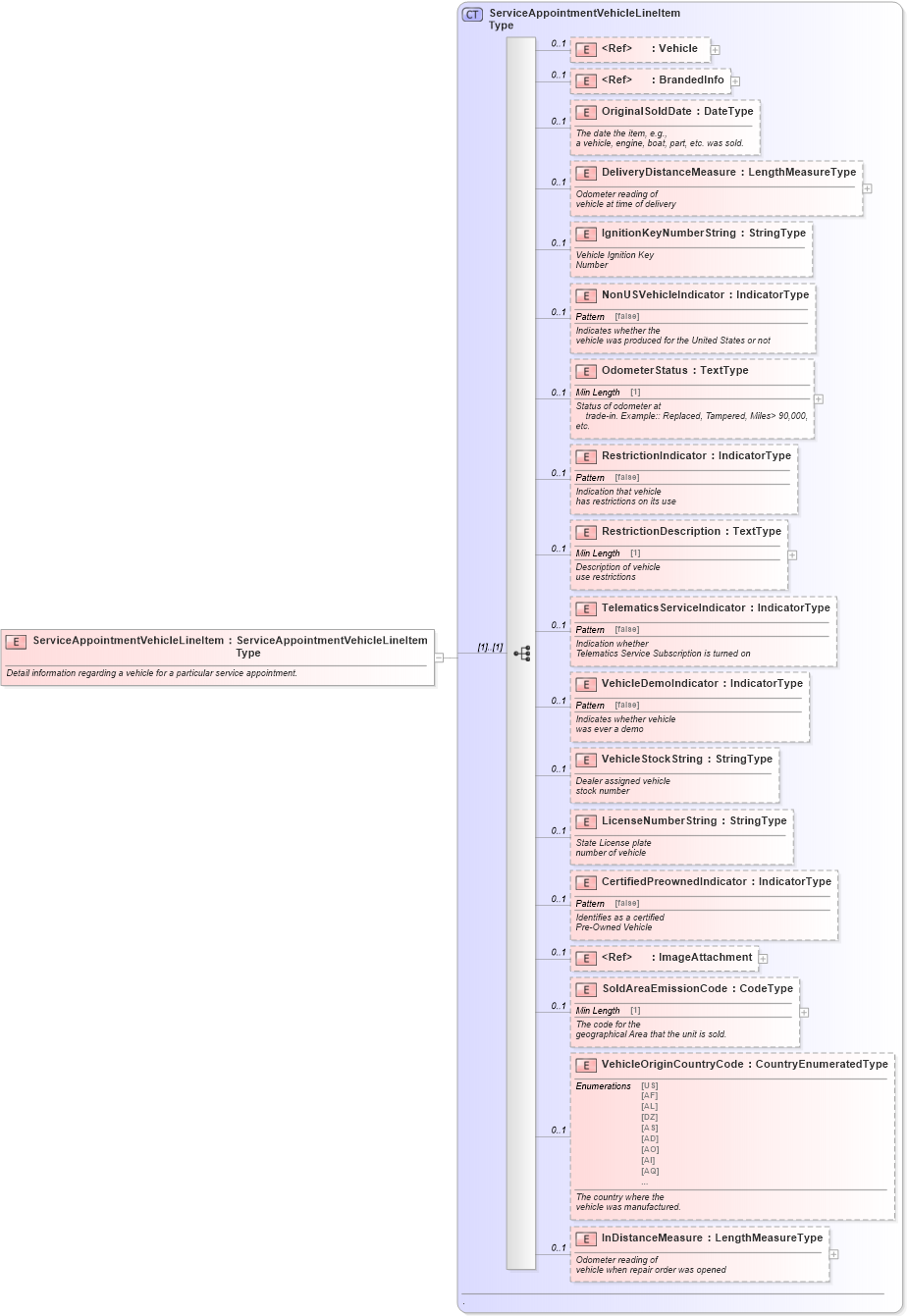

Collapse XSD Schema Diagram:
Drilldown into InDistanceMeasure in schema serviceappointment_xsd Drilldown into VehicleOriginCountryCode in schema serviceappointment_xsd Drilldown into SoldAreaEmissionCode in schema serviceappointment_xsd Drilldown into ImageAttachment in schema components_xsd Drilldown into CertifiedPreownedIndicator in schema serviceappointment_xsd Drilldown into LicenseNumberString in schema serviceappointment_xsd Drilldown into VehicleStockString in schema serviceappointment_xsd Drilldown into VehicleDemoIndicator in schema serviceappointment_xsd Drilldown into TelematicsServiceIndicator in schema serviceappointment_xsd Drilldown into RestrictionDescription in schema serviceappointment_xsd Drilldown into RestrictionIndicator in schema serviceappointment_xsd Drilldown into OdometerStatus in schema serviceappointment_xsd Drilldown into NonUSVehicleIndicator in schema serviceappointment_xsd Drilldown into IgnitionKeyNumberString in schema serviceappointment_xsd Drilldown into DeliveryDistanceMeasure in schema serviceappointment_xsd Drilldown into OriginalSoldDate in schema serviceappointment_xsd Drilldown into BrandedInfo in schema components_xsd Drilldown into Vehicle in schema components_xsd Drilldown into ServiceAppointmentVehicleLineItemType in schema serviceappointment_xsdXSD Diagram of ServiceAppointmentVehicleLineItem in schema serviceappointment_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:element name="ServiceAppointmentVehicleLineItem" type="ServiceAppointmentVehicleLineItemType">
    <xsd:annotation>
        <xsd:documentation source="http://www.starstandard.org/STAR/5">
                Detail information regarding a vehicle for a particular service appointment.
            </xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Vehicle star:Vehicle 0 1
BrandedInfo star:BrandedInfo 0 1
OriginalSoldDate star:OriginalSoldDate 0 1
DeliveryDistanceMeasure star:DeliveryDistanceMeasure 0 1
IgnitionKeyNumberString star:IgnitionKeyNumberString 0 1
NonUSVehicleIndicator star:NonUSVehicleIndicator 0 1
OdometerStatus star:OdometerStatus 0 1
RestrictionIndicator star:RestrictionIndicator 0 1
RestrictionDescription star:RestrictionDescription 0 1
TelematicsServiceIndicator star:TelematicsServiceIndicator 0 1
VehicleDemoIndicator star:VehicleDemoIndicator 0 1
VehicleStockString star:VehicleStockString 0 1
LicenseNumberString star:LicenseNumberString 0 1
CertifiedPreownedIndicator star:CertifiedPreownedIndicator 0 1
ImageAttachment star:ImageAttachment 0 1
SoldAreaEmissionCode star:SoldAreaEmissionCode 0 1
VehicleOriginCountryCode star:VehicleOriginCountryCode 0 1
InDistanceMeasure star:InDistanceMeasure 0 1
Collapse Derivation Tree:
