Definition Type: ComplexType
Name: ServiceContractStatusType
Namespace: http://www.starstandard.org/STAR/5
Containing Schema: Components.xsd
Abstract

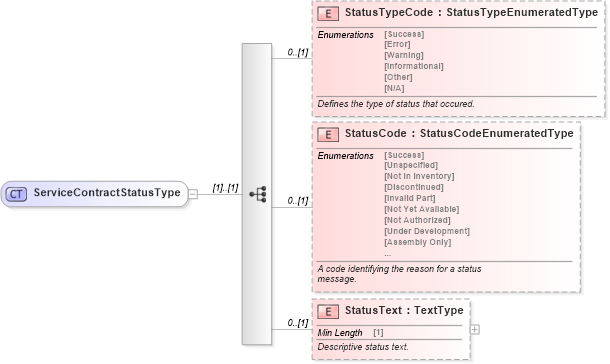

Collapse XSD Schema Diagram:
Drilldown into StatusText in schema components_xsd Drilldown into StatusCode in schema components_xsd Drilldown into StatusTypeCode in schema components_xsdXSD Diagram of ServiceContractStatusType in schema components_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:complexType name="ServiceContractStatusType">
    <xsd:sequence>
        <xsd:element minOccurs="0" name="StatusTypeCode" type="scl:StatusTypeEnumeratedType">
            <xsd:annotation>
                <xsd:documentation>
                        Defines the type of status that occured.
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="StatusCode" type="scl:StatusCodeEnumeratedType">
            <xsd:annotation>
                <xsd:documentation>
                        A code identifying the reason for a status
                        message.
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="StatusText" type="udt:TextType">
            <xsd:annotation>
                <xsd:documentation>
                        Descriptive status text.
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
StatusTypeCode star:StatusTypeCode 0 (1)
StatusCode star:StatusCode 0 (1)
StatusText star:StatusText 0 (1)
Collapse Derivation Tree:
Collapse References:
star:RepairOrderStatus, star:RepairOrderStatusServiceContractStatusstar:ServiceContractStatus,
