Definition Type: ComplexType
Name: ServiceProcessingAdvisoryHeaderType
Namespace: http://www.starstandard.org/STAR/5
Type: star:HeaderBaseType
Containing Schema: ServiceProcessingAdvisory.xsd
Abstract
Documentation:
.

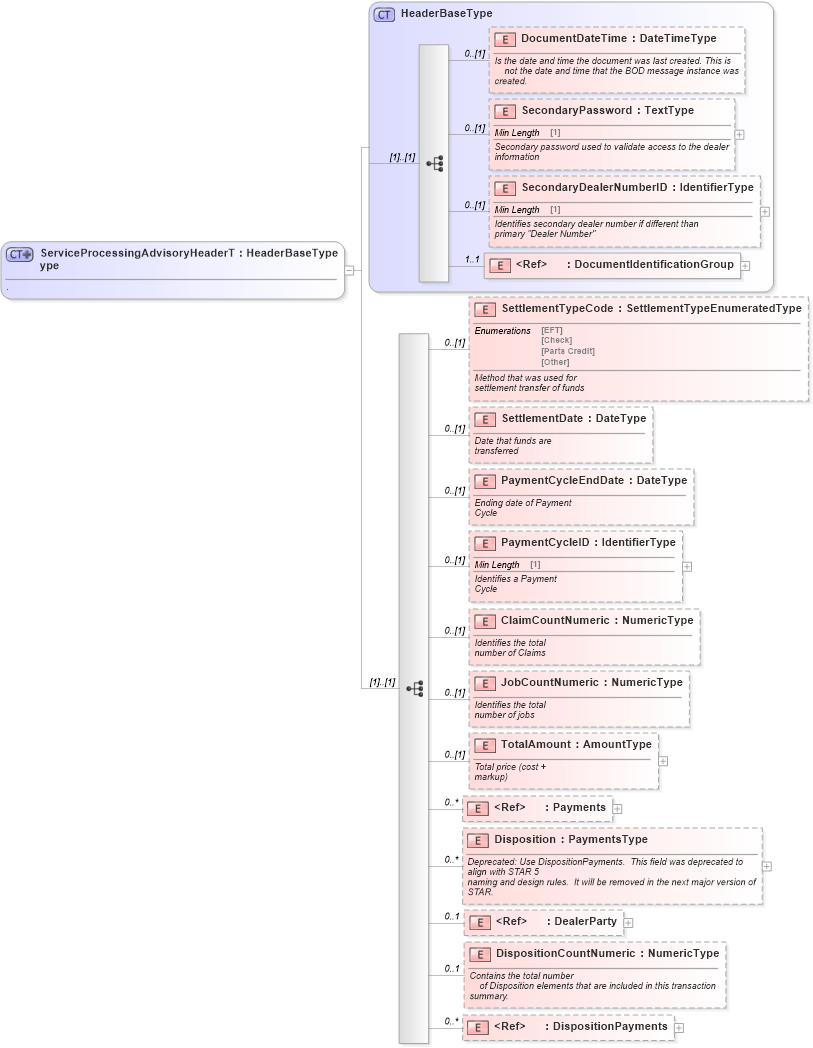

Collapse XSD Schema Diagram:
Drilldown into DispositionPayments in schema serviceprocessingadvisory_xsd Drilldown into DispositionCountNumeric in schema serviceprocessingadvisory_xsd Drilldown into DealerParty in schema components_xsd Drilldown into Disposition in schema serviceprocessingadvisory_xsd Drilldown into Payments in schema components_xsd Drilldown into TotalAmount in schema serviceprocessingadvisory_xsd Drilldown into JobCountNumeric in schema serviceprocessingadvisory_xsd Drilldown into ClaimCountNumeric in schema serviceprocessingadvisory_xsd Drilldown into PaymentCycleID in schema serviceprocessingadvisory_xsd Drilldown into PaymentCycleEndDate in schema serviceprocessingadvisory_xsd Drilldown into SettlementDate in schema serviceprocessingadvisory_xsd Drilldown into SettlementTypeCode in schema serviceprocessingadvisory_xsd Drilldown into DocumentIdentificationGroup in schema components_xsd Drilldown into SecondaryDealerNumberID in schema components_xsd Drilldown into SecondaryPassword in schema components_xsd Drilldown into DocumentDateTime in schema components_xsd Drilldown into HeaderBaseType in schema components_xsdXSD Diagram of ServiceProcessingAdvisoryHeaderType in schema serviceprocessingadvisory_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:complexType name="ServiceProcessingAdvisoryHeaderType">
    <xsd:annotation xmlns="http://www.starstandards.org/STAR">
        <xsd:documentation source="http://www.starstandard.org/STAR/5">.</xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="HeaderBaseType">
            <xsd:sequence>
                <!--<xsd:element ref="DocumentID" minOccurs="0" />-->
                <xsd:element name="SettlementTypeCode" type="scl:SettlementTypeEnumeratedType" minOccurs="0">
                    <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">Method that was used for
                settlement transfer of funds</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="SettlementDate" type="udt:DateType" minOccurs="0">
                    <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">Date that funds are
                transferred</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="PaymentCycleEndDate" type="udt:DateType" minOccurs="0">
                    <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">Ending date of Payment
                Cycle</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="PaymentCycleID" type="udt:IdentifierType" minOccurs="0">
                    <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">Identifies a Payment
                Cycle</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="ClaimCountNumeric" type="udt:NumericType" minOccurs="0">
                    <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">Identifies the total
                number of Claims</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="JobCountNumeric" type="udt:NumericType" minOccurs="0">
                    <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">Identifies the total
                number of jobs</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="TotalAmount" type="udt:AmountType" minOccurs="0">
                    <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">Total price (cost +
                markup)</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element ref="Payments" minOccurs="0" maxOccurs="unbounded">
                    <xsd:annotation>
                        <xsd:documentation>
                                Contains Information for request that was   submitted. This component may contain
                                additional sub-components with detail on request for payment.
                            </xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="Disposition" type="PaymentsType" minOccurs="0" maxOccurs="unbounded">
                    <xsd:annotation>
                        <xsd:documentation>
                                Deprecated: Use DispositionPayments.  This field was deprecated to align with STAR 5
                                naming and design rules.  It will be removed in the next major version of STAR.
                            </xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element ref="DealerParty" minOccurs="0" maxOccurs="1" />
                <xsd:element name="DispositionCountNumeric" type="udt:NumericType" minOccurs="0" maxOccurs="1">
                    <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">Contains the total number
                of Disposition elements that are included in this transaction
            summary.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element ref="DispositionPayments" minOccurs="0" maxOccurs="unbounded" />
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DocumentDateTime star:DocumentDateTime 0 (1)
SecondaryPassword star:SecondaryPassword 0 (1)
SecondaryDealerNumberID star:SecondaryDealerNumberID 0 (1)
DocumentIdentificationGroup star:DocumentIdentificationGroup 1 1
SettlementTypeCode star:SettlementTypeCode 0 (1)
SettlementDate star:SettlementDate 0 (1)
PaymentCycleEndDate star:PaymentCycleEndDate 0 (1)
PaymentCycleID star:PaymentCycleID 0 (1)
ClaimCountNumeric star:ClaimCountNumeric 0 (1)
JobCountNumeric star:JobCountNumeric 0 (1)
TotalAmount star:TotalAmount 0 (1)
Payments star:Payments 0 unbounded
Disposition star:Disposition 0 unbounded
DealerParty star:DealerParty 0 1
DispositionCountNumeric star:DispositionCountNumeric 0 1
DispositionPayments star:DispositionPayments 0 unbounded
Collapse Derivation Tree:
Collapse References:
star:ServiceProcessingAdvisoryHeader
