Definition Type: Element
Name: ShipmentCarrierDetail
Namespace: http://www.starstandard.org/STAR/5
Type: star:ShipmentCarrierDetailType
Containing Schema: Components.xsd
Abstract
Documentation:
The ShipmentCarrierDetail component is used to describe the shipment carrier to be used for a shipment and the method by which the shipment will be made.

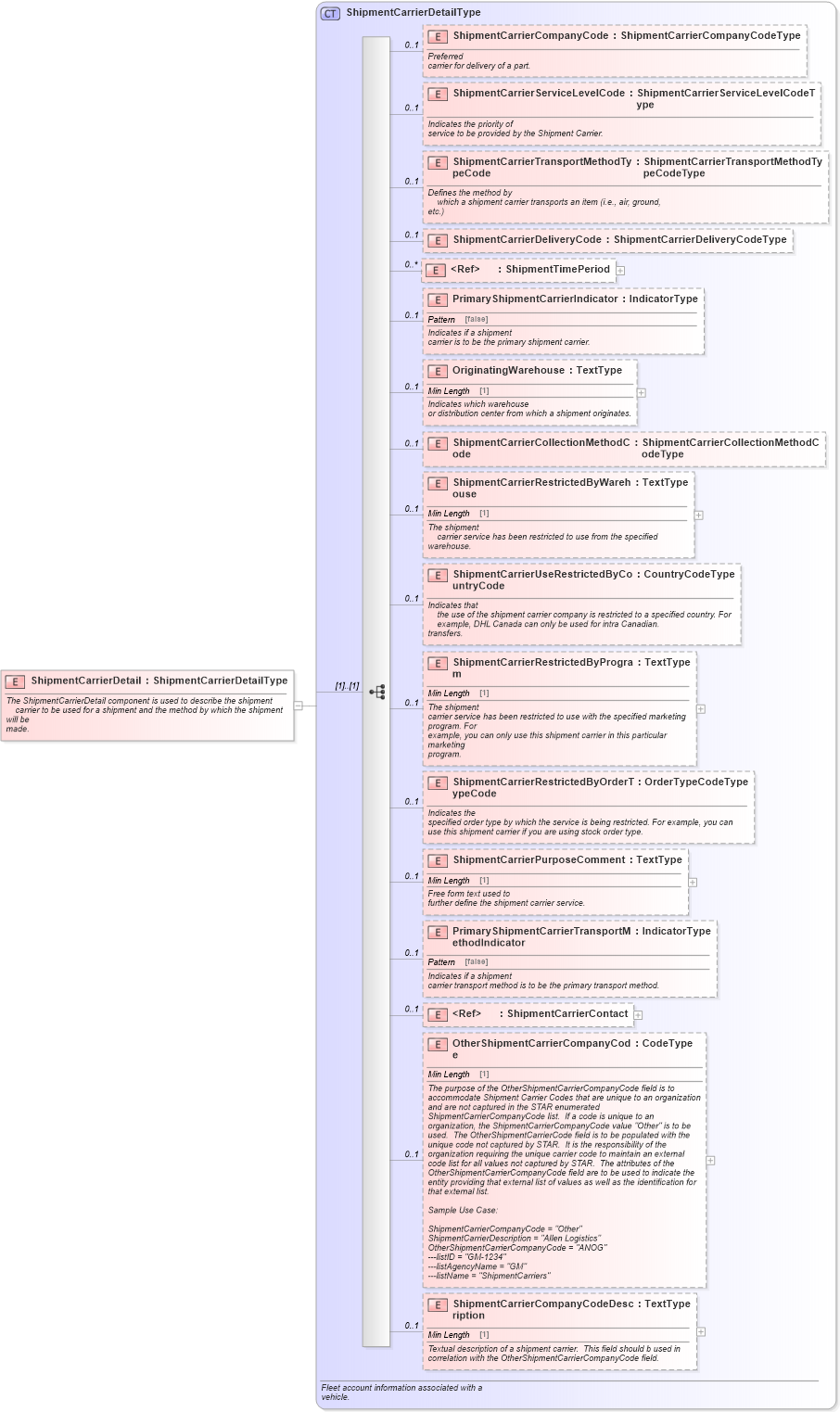

Collapse XSD Schema Diagram:
Drilldown into ShipmentCarrierCompanyCodeDescription in schema components_xsd Drilldown into OtherShipmentCarrierCompanyCode in schema components_xsd Drilldown into ShipmentCarrierContact in schema components_xsd Drilldown into PrimaryShipmentCarrierTransportMethodIndicator in schema components_xsd Drilldown into ShipmentCarrierPurposeComment in schema components_xsd Drilldown into ShipmentCarrierRestrictedByOrderTypeCode in schema components_xsd Drilldown into ShipmentCarrierRestrictedByProgram in schema components_xsd Drilldown into ShipmentCarrierUseRestrictedByCountryCode in schema components_xsd Drilldown into ShipmentCarrierRestrictedByWarehouse in schema components_xsd Drilldown into ShipmentCarrierCollectionMethodCode in schema components_xsd Drilldown into OriginatingWarehouse in schema components_xsd Drilldown into PrimaryShipmentCarrierIndicator in schema components_xsd Drilldown into ShipmentTimePeriod in schema components_xsd Drilldown into ShipmentCarrierDeliveryCode in schema components_xsd Drilldown into ShipmentCarrierTransportMethodTypeCode in schema components_xsd Drilldown into ShipmentCarrierServiceLevelCode in schema components_xsd Drilldown into ShipmentCarrierCompanyCode in schema components_xsd Drilldown into ShipmentCarrierDetailType in schema components_xsdXSD Diagram of ShipmentCarrierDetail in schema components_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:element name="ShipmentCarrierDetail" type="ShipmentCarrierDetailType">
    <xsd:annotation>
        <xsd:documentation>The ShipmentCarrierDetail component is used to describe the shipment
                carrier to be used for a shipment and the method by which the shipment will be
            made.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ShipmentCarrierCompanyCode star:ShipmentCarrierCompanyCode 0 1
ShipmentCarrierServiceLevelCode star:ShipmentCarrierServiceLevelCode 0 1
ShipmentCarrierTransportMethodTypeCode star:ShipmentCarrierTransportMethodTypeCode 0 1
ShipmentCarrierDeliveryCode star:ShipmentCarrierDeliveryCode 0 1
ShipmentTimePeriod star:ShipmentTimePeriod 0 unbounded
PrimaryShipmentCarrierIndicator star:PrimaryShipmentCarrierIndicator 0 1
OriginatingWarehouse star:OriginatingWarehouse 0 1
ShipmentCarrierCollectionMethodCode star:ShipmentCarrierCollectionMethodCode 0 1
ShipmentCarrierRestrictedByWarehouse star:ShipmentCarrierRestrictedByWarehouse 0 1
ShipmentCarrierUseRestrictedByCountryCode star:ShipmentCarrierUseRestrictedByCountryCode 0 1
ShipmentCarrierRestrictedByProgram star:ShipmentCarrierRestrictedByProgram 0 1
ShipmentCarrierRestrictedByOrderTypeCode star:ShipmentCarrierRestrictedByOrderTypeCode 0 1
ShipmentCarrierPurposeComment star:ShipmentCarrierPurposeComment 0 1
PrimaryShipmentCarrierTransportMethodIndicator star:PrimaryShipmentCarrierTransportMethodIndicator 0 1
ShipmentCarrierContact star:ShipmentCarrierContact 0 1
OtherShipmentCarrierCompanyCode star:OtherShipmentCarrierCompanyCode 0 1
ShipmentCarrierCompanyCodeDescription star:ShipmentCarrierCompanyCodeDescription 0 1
Collapse Derivation Tree:
