Documentation for Standards for Technology in Automotive Retail
Definition Type: ComplexType
Name: ShipPartType
Namespace: http://www.starstandard.org/STAR/5
Type: star:PartsBaseType
Containing Schema: DeprecatedComponents.xsd
Abstract
Documentation:
Deprecated. Use PartsProductItem

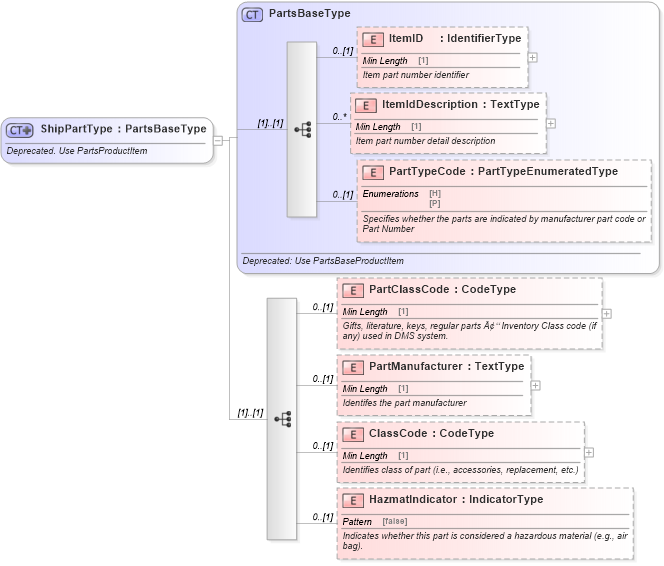

Collapse XSD Schema Diagram:
Drilldown into HazmatIndicator in schema deprecatedcomponents_xsd Drilldown into ClassCode in schema deprecatedcomponents_xsd Drilldown into PartManufacturer in schema deprecatedcomponents_xsd Drilldown into PartClassCode in schema deprecatedcomponents_xsd Drilldown into PartTypeCode in schema deprecatedcomponents_xsd Drilldown into ItemIdDescription in schema deprecatedcomponents_xsd Drilldown into ItemID in schema deprecatedcomponents_xsd Drilldown into PartsBaseType in schema deprecatedcomponents_xsdXSD Diagram of ShipPartType in schema deprecatedcomponents_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:complexType name="ShipPartType">
    <xsd:annotation>
        <xsd:documentation>Deprecated. Use PartsProductItem</xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="PartsBaseType">
            <xsd:sequence>
                <xsd:element minOccurs="0" name="PartClassCode" type="udt:CodeType">
                    <xsd:annotation>
                        <xsd:documentation>
                            <ccts:Definition xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Gifts, literature, keys, regular parts â?? Inventory Class code (if
                           any) used in DMS system.</ccts:Definition>
                        </xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element minOccurs="0" name="PartManufacturer" type="udt:TextType">
                    <xsd:annotation>
                        <xsd:documentation>
                            <ccts:Definition xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Identifes the part manufacturer</ccts:Definition>
                        </xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element minOccurs="0" name="ClassCode" type="udt:CodeType">
                    <xsd:annotation>
                        <xsd:documentation>
                            <ccts:Definition xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Identifies class of part (i.e., accessories, replacement, etc.)</ccts:Definition>
                        </xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element minOccurs="0" name="HazmatIndicator" type="udt:IndicatorType">
                    <xsd:annotation>
                        <xsd:documentation>
                            <ccts:Definition xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Indicates whether this part is considered a hazardous material (e.g., air bag).</ccts:Definition>
                        </xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ItemID star:ItemID 0 (1)
ItemIdDescription star:ItemIdDescription 0 unbounded
PartTypeCode star:PartTypeCode 0 (1)
PartClassCode star:PartClassCode 0 (1)
PartManufacturer star:PartManufacturer 0 (1)
ClassCode star:ClassCode 0 (1)
HazmatIndicator star:HazmatIndicator 0 (1)
Collapse Derivation Tree:
