Documentation for Standards for Technology in Automotive Retail
Definition Type: ComplexType
Name: ShipToPartyPermitType
Namespace: http://www.starstandard.org/STAR/5
Type: star:ShipToPartyType
Containing Schema: DeprecatedComponents.xsd
Abstract
Documentation:
Deprecated: Use PartyABIEType

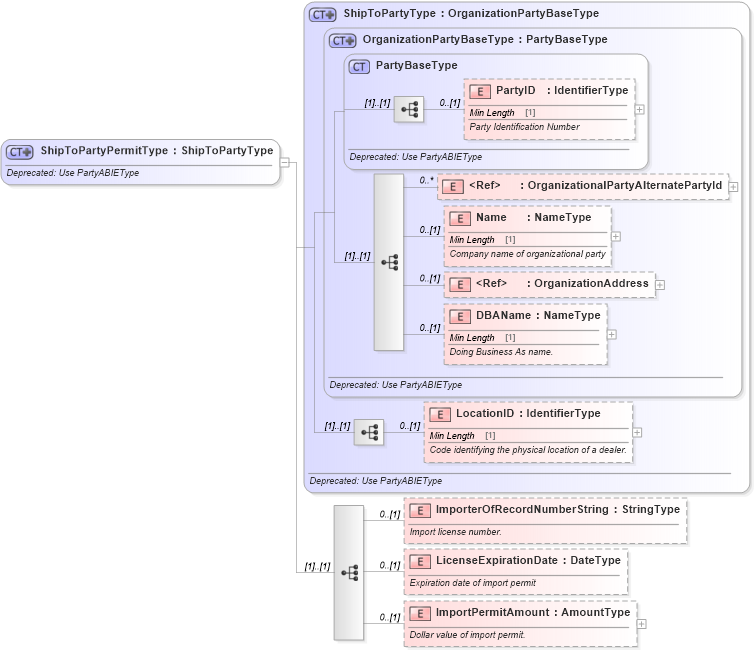

Collapse XSD Schema Diagram:
Drilldown into ImportPermitAmount in schema deprecatedcomponents_xsd Drilldown into LicenseExpirationDate in schema deprecatedcomponents_xsd Drilldown into ImporterOfRecordNumberString in schema deprecatedcomponents_xsd Drilldown into LocationID in schema deprecatedcomponents_xsd Drilldown into DBAName in schema deprecatedcomponents_xsd Drilldown into OrganizationAddress in schema deprecatedcomponents_xsd Drilldown into Name in schema deprecatedcomponents_xsd Drilldown into OrganizationalPartyAlternatePartyId in schema deprecatedcomponents_xsd Drilldown into PartyID in schema deprecatedcomponents_xsd Drilldown into PartyBaseType in schema deprecatedcomponents_xsd Drilldown into OrganizationPartyBaseType in schema deprecatedcomponents_xsd Drilldown into ShipToPartyType in schema deprecatedcomponents_xsdXSD Diagram of ShipToPartyPermitType in schema deprecatedcomponents_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:complexType name="ShipToPartyPermitType">
    <xsd:annotation>
        <xsd:documentation>Deprecated: Use PartyABIEType</xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="ShipToPartyType">
            <xsd:sequence>
                <xsd:element minOccurs="0" name="ImporterOfRecordNumberString" type="qdt:StringType">
                    <xsd:annotation>
                        <xsd:documentation>
                            <ccts:Definition xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Import license number.</ccts:Definition>
                        </xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element minOccurs="0" name="LicenseExpirationDate" type="udt:DateType">
                    <xsd:annotation>
                        <xsd:documentation>
                            <ccts:Definition xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Expiration date of import permit</ccts:Definition>
                        </xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element minOccurs="0" name="ImportPermitAmount" type="udt:AmountType">
                    <xsd:annotation>
                        <xsd:documentation>
                            <ccts:Definition xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Dollar value of import permit.</ccts:Definition>
                        </xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
PartyID star:PartyID 0 (1)
OrganizationalPartyAlternatePartyId star:OrganizationalPartyAlternatePartyId 0 unbounded
Name star:Name 0 (1)
OrganizationAddress star:OrganizationAddress 0 (1)
DBAName star:DBAName 0 (1)
LocationID star:LocationID 0 (1)
ImporterOfRecordNumberString star:ImporterOfRecordNumberString 0 (1)
LicenseExpirationDate star:LicenseExpirationDate 0 (1)
ImportPermitAmount star:ImportPermitAmount 0 (1)
Collapse Derivation Tree:
Collapse References:
star:ShipToPartyPermit
