<xsd:complexType name="ShipUnitReferenceOAGIType">
<xsd:annotation>
<xsd:documentation source="http://www.starstandard.org/STAR/5"> This is a STAR specific
version of the OAGIS 9.1 ShipUnitReferenceType.
</xsd:documentation>
</xsd:annotation>
<xsd:sequence>
<xsd:element maxOccurs="1" minOccurs="0" ref="oagis:ID">
<xsd:annotation>
<xsd:documentation source="http://www.openapplications.org/oagis/9">
Is the Identifiers of the given instance of an entity
within the scope of the integration. The providedBy attribute
identifies the party that provided or knows this party by the given
identifier.
</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element maxOccurs="1" minOccurs="0" ref="oagis:SealID">
<xsd:annotation>
<xsd:documentation source="http://www.openapplications.org/oagis/9">
Identifies the tamper-proof seal placed on a shipping container to
prevent pilfering of the contents.
</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element maxOccurs="1" minOccurs="0" ref="oagis:Type">
<xsd:annotation>
<xsd:documentation source="http://www.openapplications.org/oagis/9">
Indicates the type of the object in which assoicated.
</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element maxOccurs="1" minOccurs="0" ref="oagis:FreightItemID">
<xsd:annotation>
<xsd:documentation source="http://www.openapplications.org/oagis/9">
Identifies the item number assigned to the type of goods for the
purposes of freight classification and cost calculation.
</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element maxOccurs="1" minOccurs="0" ref="oagis:ShippingTrackingID">
<xsd:annotation>
<xsd:documentation source="http://www.openapplications.org/oagis/9">
Is a unique identifier for the purpose of tracking an individual package
or shipment.
</xsd:documentation>
</xsd:annotation>
</xsd:element>
</xsd:sequence>
</xsd:complexType>
|

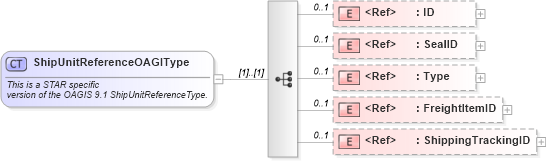

XSD Schema Diagram:
