Documentation for Standards for Technology in Automotive Retail
Definition Type: Element
Name: Signature
Namespace: http://www.openapplications.org/oagis/9
Type: oagis:SignatureType
Containing Schema: Meta.xsd
Abstract
Documentation:
If the BOD is to be signed the signature element is included, otherwise it is not. Signature supports any digital signature that maybe used by an implementation of OAGIS. The qualifyingAgency identifies the agency that provided the format for the signature. This element supports any digital signature specification that is available today and in the future. This is accomplished by not actually defining the content but by allowing the implementation to specify the digital signature to be used via an external XML Schema namespace declaration. The Signature element is defined to have any content from any other namespace. This allows the user to carry a digital signature in the xml instance of a BOD. The choice of which digital signature to use is left up to the user and their integration needs.

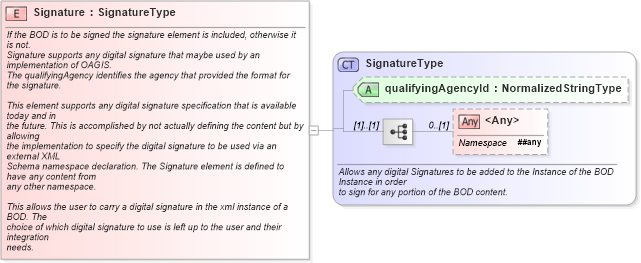

Collapse XSD Schema Diagram:
Drilldown into qualifyingAgencyId in schema meta_xsd1 Drilldown into SignatureType in schema meta_xsd1XSD Diagram of Signature in schema meta_xsd1 (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:element name="Signature" type="SignatureType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9">
            If the BOD is to be signed the signature element is included, otherwise it is not.
            Signature supports any digital signature that maybe used by an implementation of OAGIS.
            The qualifyingAgency identifies the agency that provided the format for the signature.

            This element supports any digital signature specification that is available today and in
            the future. This is accomplished by not actually defining the content but by allowing
            the implementation to specify the digital signature to be used via an external XML
            Schema namespace declaration. The Signature element is defined to have any content from
            any other namespace.

            This allows the user to carry a digital signature in the xml instance of a BOD. The
            choice of which digital signature to use is left up to the user and their integration
            needs.
         </xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
<xs:any> Allowed namespace: '##any' 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
qualifyingAgencyId oagis:qualifyingAgencyId Optional
Collapse Derivation Tree:
