Documentation for Standards for Technology in Automotive Retail
Definition Type: Element
Name: SubscriptionServiceDetail
Namespace: http://www.starstandard.org/STAR/5
Type: star:SubscriptionServiceDetailType
Containing Schema: SubscriptionService.xsd
Abstract
Documentation:
The SubscriptionServiceDetail component represents the vehicle(s) for which the service is being provided as well as other detail information.

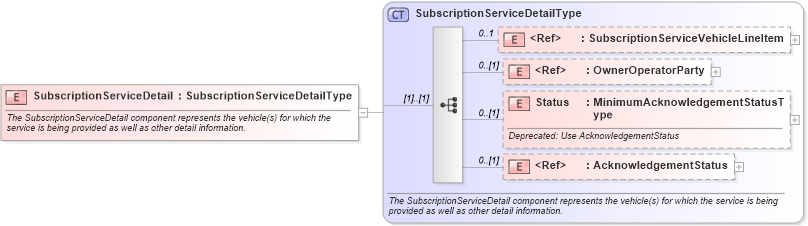

Collapse XSD Schema Diagram:
Drilldown into AcknowledgementStatus in schema components_xsd Drilldown into Status in schema subscriptionservice_xsd Drilldown into OwnerOperatorParty in schema components_xsd Drilldown into SubscriptionServiceVehicleLineItem in schema subscriptionservice_xsd Drilldown into SubscriptionServiceDetailType in schema subscriptionservice_xsdXSD Diagram of SubscriptionServiceDetail in schema subscriptionservice_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:element name="SubscriptionServiceDetail" type="SubscriptionServiceDetailType">
    <xsd:annotation>
        <xsd:documentation source="http://www.starstandard.org/STAR/5">The SubscriptionServiceDetail component represents the vehicle(s) for which the service is being provided as well as other detail information.
            </xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
SubscriptionServiceVehicleLineItem star:SubscriptionServiceVehicleLineItem 0 1
OwnerOperatorParty star:OwnerOperatorParty 0 (1)
Status star:Status 0 (1)
AcknowledgementStatus star:AcknowledgementStatus 0 (1)
Collapse Derivation Tree:
