Documentation for Standards for Technology in Automotive Retail
Definition Type: ComplexType
Name: SubscriptionServiceVehicleType
Namespace: http://www.starstandard.org/STAR/5
Containing Schema: DeprecatedComponents.xsd
Abstract
Documentation:
Deprecated: Use VehicleABIEType The Vehicle for which the subscription service is being provided.

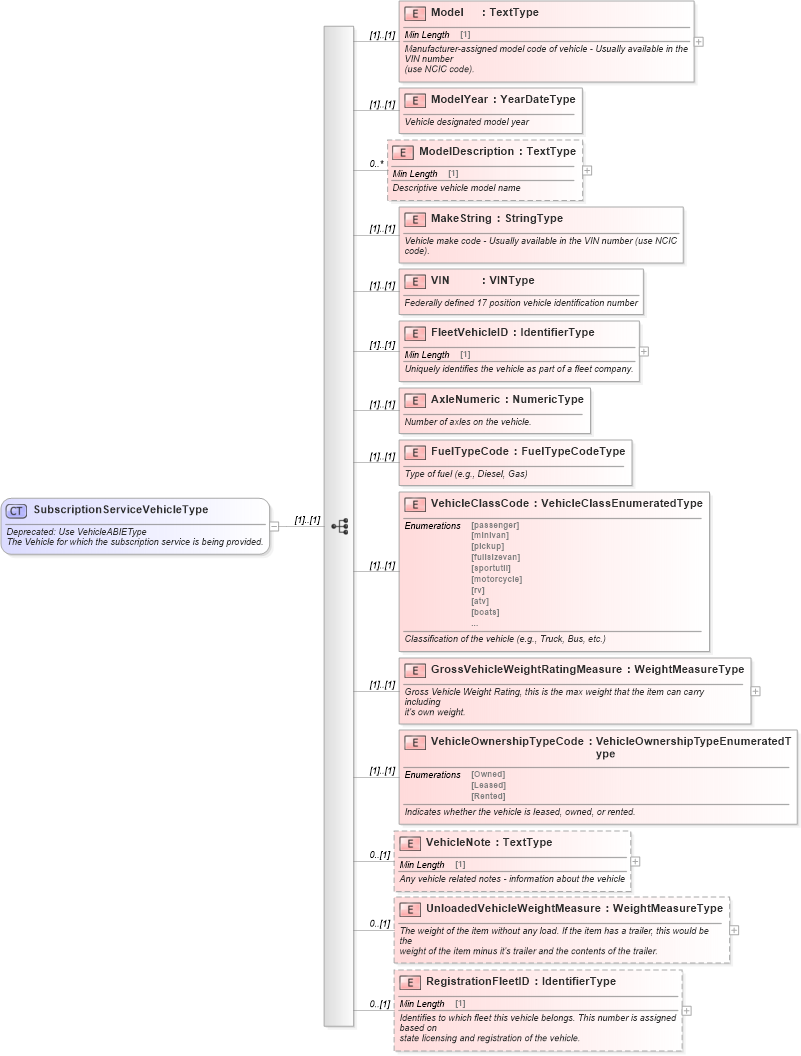

Collapse XSD Schema Diagram:
Drilldown into RegistrationFleetID in schema deprecatedcomponents_xsd Drilldown into UnloadedVehicleWeightMeasure in schema deprecatedcomponents_xsd Drilldown into VehicleNote in schema deprecatedcomponents_xsd Drilldown into VehicleOwnershipTypeCode in schema deprecatedcomponents_xsd Drilldown into GrossVehicleWeightRatingMeasure in schema deprecatedcomponents_xsd Drilldown into VehicleClassCode in schema deprecatedcomponents_xsd Drilldown into FuelTypeCode in schema deprecatedcomponents_xsd Drilldown into AxleNumeric in schema deprecatedcomponents_xsd Drilldown into FleetVehicleID in schema deprecatedcomponents_xsd Drilldown into VIN in schema deprecatedcomponents_xsd Drilldown into MakeString in schema deprecatedcomponents_xsd Drilldown into ModelDescription in schema deprecatedcomponents_xsd Drilldown into ModelYear in schema deprecatedcomponents_xsd Drilldown into Model in schema deprecatedcomponents_xsdXSD Diagram of SubscriptionServiceVehicleType in schema deprecatedcomponents_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:complexType name="SubscriptionServiceVehicleType">
    <xsd:annotation>
        <xsd:documentation>Deprecated: Use VehicleABIEType</xsd:documentation>
        <xsd:documentation source="http://www.starstandard.org/STAR/5">
            <ccts:Definition xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">The Vehicle for which the subscription service is being provided.</ccts:Definition>
        </xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element name="Model" type="udt:TextType">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org/STAR/5">
                    <ccts:Definition xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Manufacturer-assigned model code of vehicle - Usually available in the VIN number
                     (use NCIC code).</ccts:Definition>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="ModelYear" type="qdt:YearDateType">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org/STAR/5">
                    <ccts:Definition xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Vehicle designated model year</ccts:Definition>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="unbounded" minOccurs="0" name="ModelDescription" type="udt:TextType">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org/STAR/5">
                    <ccts:Definition xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Descriptive vehicle model name</ccts:Definition>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="MakeString" type="qdt:StringType">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org/STAR/5">
                    <ccts:Definition xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Vehicle make code - Usually available in the VIN number (use NCIC code).</ccts:Definition>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="VIN" type="sqdt:VINType">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org/STAR/5">
                    <ccts:Definition xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Federally defined 17 position vehicle identification number</ccts:Definition>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="FleetVehicleID" type="udt:IdentifierType">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org/STAR/5">
                    <ccts:Definition xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Uniquely identifies the vehicle as part of a fleet company.</ccts:Definition>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="AxleNumeric" type="udt:NumericType">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org/STAR/5">
                    <ccts:Definition xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Number of axles on the vehicle.</ccts:Definition>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="FuelTypeCode" type="sqdt:FuelTypeCodeType">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org/STAR/5">
                    <ccts:Definition xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Type of fuel (e.g., Diesel, Gas)</ccts:Definition>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="VehicleClassCode" type="scl:VehicleClassEnumeratedType">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org/STAR/5">
                    <ccts:Definition xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Classification of the vehicle (e.g., Truck, Bus, etc.)</ccts:Definition>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="GrossVehicleWeightRatingMeasure" type="sqdt:WeightMeasureType">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org/STAR/5">
                    <ccts:Definition xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Gross Vehicle Weight Rating, this is the max weight that the item can carry including
                     it's own weight.</ccts:Definition>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="VehicleOwnershipTypeCode" type="scl:VehicleOwnershipTypeEnumeratedType">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org/STAR/5">
                    <ccts:Definition xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Indicates whether the vehicle is leased, owned, or rented.</ccts:Definition>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="VehicleNote" type="udt:TextType">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org/STAR/5">
                    <ccts:Definition xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Any vehicle related notes - information about the vehicle</ccts:Definition>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="UnloadedVehicleWeightMeasure" type="sqdt:WeightMeasureType">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org/STAR/5">
                    <ccts:Definition xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">The weight of the item without any load. If the item has a trailer, this would be the
                     weight of the item minus it's trailer and the contents of the trailer.</ccts:Definition>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="RegistrationFleetID" type="udt:IdentifierType">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org/STAR/5">
                    <ccts:Definition xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Identifies to which fleet this vehicle belongs. This number is assigned based on
                     state licensing and registration of the vehicle.</ccts:Definition>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Model star:Model (1) (1)
ModelYear star:ModelYear (1) (1)
ModelDescription star:ModelDescription 0 unbounded
MakeString star:MakeString (1) (1)
VIN star:VIN (1) (1)
FleetVehicleID star:FleetVehicleID (1) (1)
AxleNumeric star:AxleNumeric (1) (1)
FuelTypeCode star:FuelTypeCode (1) (1)
VehicleClassCode star:VehicleClassCode (1) (1)
GrossVehicleWeightRatingMeasure star:GrossVehicleWeightRatingMeasure (1) (1)
VehicleOwnershipTypeCode star:VehicleOwnershipTypeCode (1) (1)
VehicleNote star:VehicleNote 0 (1)
UnloadedVehicleWeightMeasure star:UnloadedVehicleWeightMeasure 0 (1)
RegistrationFleetID star:RegistrationFleetID 0 (1)
Collapse Derivation Tree:
Collapse References:
star:SubscriptionServiceVehicle
