Definition Type: ComplexType
Name: SupplyingPartyLocationType
Namespace: http://www.starstandard.org/STAR/5
Containing Schema: Components.xsd
Abstract

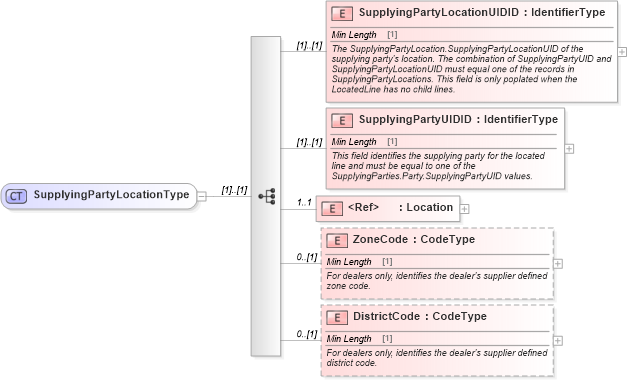

Collapse XSD Schema Diagram:
Drilldown into DistrictCode in schema components_xsd Drilldown into ZoneCode in schema components_xsd Drilldown into Location in schema components_xsd Drilldown into SupplyingPartyUIDID in schema components_xsd Drilldown into SupplyingPartyLocationUIDID in schema components_xsdXSD Diagram of SupplyingPartyLocationType in schema components_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:complexType name="SupplyingPartyLocationType">
    <xsd:sequence>
        <xsd:element name="SupplyingPartyLocationUIDID" type="udt:IdentifierType">
            <xsd:annotation>
                <xsd:documentation>
                        The SupplyingPartyLocation.SupplyingPartyLocationUID of the
                            supplying party's location. The combination of SupplyingPartyUID and
                            SupplyingPartyLocationUID must equal one of the records in
                            SupplyingPartyLocations. This field is only poplated when the
                            LocatedLine has no child lines.
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="SupplyingPartyUIDID" type="udt:IdentifierType">
            <xsd:annotation>
                <xsd:documentation>
                        This field identifies the supplying party for the located
                            line and must be equal to one of the
                            SupplyingParties.Party.SupplyingPartyUID values.
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="1" minOccurs="1" ref="Location" />
        <xsd:element minOccurs="0" name="ZoneCode" type="udt:CodeType">
            <xsd:annotation>
                <xsd:documentation>
                        For dealers only, identifies the dealer's supplier defined
                            zone code.
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="DistrictCode" type="udt:CodeType">
            <xsd:annotation>
                <xsd:documentation>
                        For dealers only, identifies the dealer's supplier defined
                            district code.
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
SupplyingPartyLocationUIDID star:SupplyingPartyLocationUIDID (1) (1)
SupplyingPartyUIDID star:SupplyingPartyUIDID (1) (1)
Location star:Location 1 1
ZoneCode star:ZoneCode 0 (1)
DistrictCode star:DistrictCode 0 (1)
Collapse Derivation Tree:
Collapse References:
star:SupplyingPartyLocation
