Documentation for Standards for Technology in Automotive Retail
Definition Type: Element
Name: Trailer
Namespace: http://www.starstandard.org/STAR/5
Type: star:TrailerType
Containing Schema: Components.xsd
Abstract
Documentation:
Information describing the components that are part of a trailer used in hauling a vehicle.

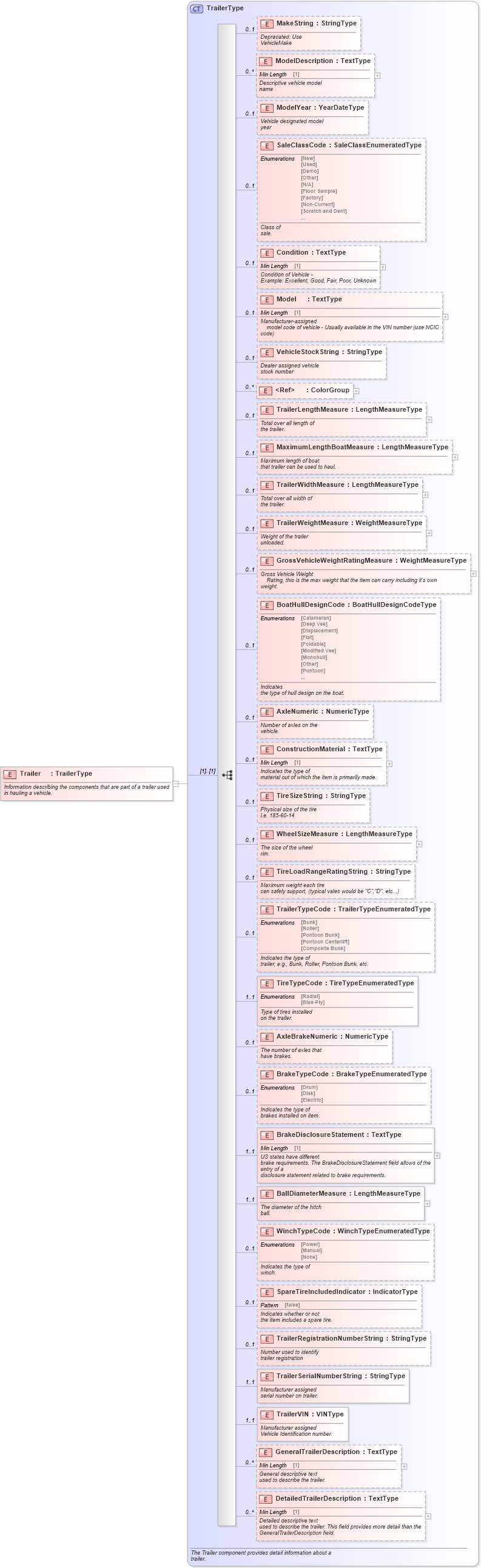

Collapse XSD Schema Diagram:
Drilldown into DetailedTrailerDescription in schema components_xsd Drilldown into GeneralTrailerDescription in schema components_xsd Drilldown into TrailerVIN in schema components_xsd Drilldown into TrailerSerialNumberString in schema components_xsd Drilldown into TrailerRegistrationNumberString in schema components_xsd Drilldown into SpareTireIncludedIndicator in schema components_xsd Drilldown into WinchTypeCode in schema components_xsd Drilldown into BallDiameterMeasure in schema components_xsd Drilldown into BrakeDisclosureStatement in schema components_xsd Drilldown into BrakeTypeCode in schema components_xsd Drilldown into AxleBrakeNumeric in schema components_xsd Drilldown into TireTypeCode in schema components_xsd Drilldown into TrailerTypeCode in schema components_xsd Drilldown into TireLoadRangeRatingString in schema components_xsd Drilldown into WheelSizeMeasure in schema components_xsd Drilldown into TireSizeString in schema components_xsd Drilldown into ConstructionMaterial in schema components_xsd Drilldown into AxleNumeric in schema components_xsd Drilldown into BoatHullDesignCode in schema components_xsd Drilldown into GrossVehicleWeightRatingMeasure in schema components_xsd Drilldown into TrailerWeightMeasure in schema components_xsd Drilldown into TrailerWidthMeasure in schema components_xsd Drilldown into MaximumLengthBoatMeasure in schema components_xsd Drilldown into TrailerLengthMeasure in schema components_xsd Drilldown into ColorGroup in schema components_xsd Drilldown into VehicleStockString in schema components_xsd Drilldown into Model in schema components_xsd Drilldown into Condition in schema components_xsd Drilldown into SaleClassCode in schema components_xsd Drilldown into ModelYear in schema components_xsd Drilldown into ModelDescription in schema components_xsd Drilldown into MakeString in schema components_xsd Drilldown into TrailerType in schema components_xsdXSD Diagram of Trailer in schema components_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:element name="Trailer" type="TrailerType">
    <xsd:annotation>
        <xsd:documentation>Information describing the components that are part of a trailer used
                in hauling a vehicle.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
MakeString star:MakeString 0 1
ModelDescription star:ModelDescription 0 unbounded
ModelYear star:ModelYear 0 1
SaleClassCode star:SaleClassCode 0 1
Condition star:Condition 0 1
Model star:Model 0 1
VehicleStockString star:VehicleStockString 0 1
ColorGroup star:ColorGroup 0 unbounded
TrailerLengthMeasure star:TrailerLengthMeasure 0 1
MaximumLengthBoatMeasure star:MaximumLengthBoatMeasure 0 1
TrailerWidthMeasure star:TrailerWidthMeasure 0 1
TrailerWeightMeasure star:TrailerWeightMeasure 0 1
GrossVehicleWeightRatingMeasure star:GrossVehicleWeightRatingMeasure 0 1
BoatHullDesignCode star:BoatHullDesignCode 0 1
AxleNumeric star:AxleNumeric 0 1
ConstructionMaterial star:ConstructionMaterial 0 1
TireSizeString star:TireSizeString 0 1
WheelSizeMeasure star:WheelSizeMeasure 0 1
TireLoadRangeRatingString star:TireLoadRangeRatingString 0 1
TrailerTypeCode star:TrailerTypeCode 0 1
TireTypeCode star:TireTypeCode 1 1
AxleBrakeNumeric star:AxleBrakeNumeric 0 1
BrakeTypeCode star:BrakeTypeCode 0 1
BrakeDisclosureStatement star:BrakeDisclosureStatement 1 1
BallDiameterMeasure star:BallDiameterMeasure 1 1
WinchTypeCode star:WinchTypeCode 0 1
SpareTireIncludedIndicator star:SpareTireIncludedIndicator 0 1
TrailerRegistrationNumberString star:TrailerRegistrationNumberString 0 1
TrailerSerialNumberString star:TrailerSerialNumberString 1 1
TrailerVIN star:TrailerVIN 1 1
GeneralTrailerDescription star:GeneralTrailerDescription 0 unbounded
DetailedTrailerDescription star:DetailedTrailerDescription 0 unbounded
Collapse Derivation Tree:
