Documentation for Standards for Technology in Automotive Retail
Definition Type: ComplexType
Name: TransportationType
Namespace: http://www.starstandard.org/STAR/5
Containing Schema: Components.xsd
Abstract

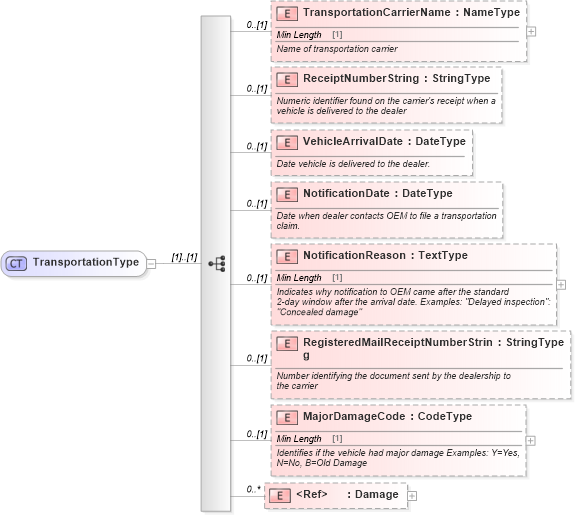

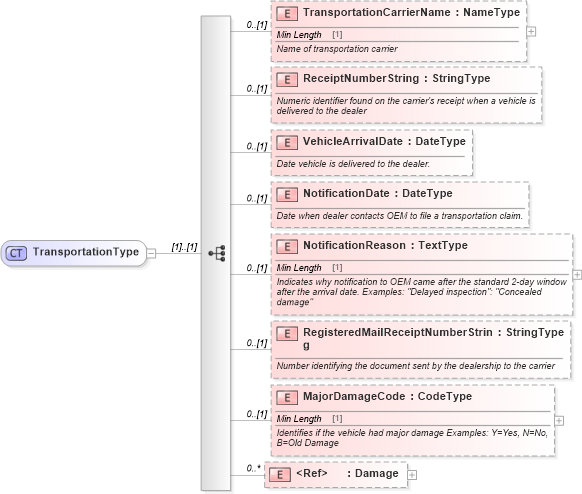

Collapse XSD Schema Diagram:
Drilldown into Damage in schema components_xsd Drilldown into MajorDamageCode in schema components_xsd Drilldown into RegisteredMailReceiptNumberString in schema components_xsd Drilldown into NotificationReason in schema components_xsd Drilldown into NotificationDate in schema components_xsd Drilldown into VehicleArrivalDate in schema components_xsd Drilldown into ReceiptNumberString in schema components_xsd Drilldown into TransportationCarrierName in schema components_xsdXSD Diagram of TransportationType in schema components_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:complexType name="TransportationType">
    <xsd:sequence>
        <xsd:element minOccurs="0" name="TransportationCarrierName" type="udt:NameType">
            <xsd:annotation>
                <xsd:documentation>
                        Name of transportation carrier
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="ReceiptNumberString" type="qdt:StringType">
            <xsd:annotation>
                <xsd:documentation>
                        Numeric identifier found on the carrier's receipt when a
                            vehicle is delivered to the dealer
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="VehicleArrivalDate" type="udt:DateType">
            <xsd:annotation>
                <xsd:documentation>
                        Date vehicle is delivered to the dealer.
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="NotificationDate" type="udt:DateType">
            <xsd:annotation>
                <xsd:documentation>
                        Date when dealer contacts OEM to file a transportation
                            claim.
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="NotificationReason" type="udt:TextType">
            <xsd:annotation>
                <xsd:documentation>
                        Indicates why notification to OEM came after the standard
                            2-day window after the arrival date. Examples: "Delayed inspection":
                            "Concealed damage"
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="RegisteredMailReceiptNumberString" type="qdt:StringType">
            <xsd:annotation>
                <xsd:documentation>
                        Number identifying the document sent by the dealership to
                            the carrier
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="MajorDamageCode" type="udt:CodeType">
            <xsd:annotation>
                <xsd:documentation>
                        Identifies if the vehicle had major damage Examples: Y=Yes,
                            N=No, B=Old Damage
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="unbounded" minOccurs="0" ref="Damage">
            <xsd:annotation>
                <xsd:documentation>
                        represents information about damage related to the
                        vehicle
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
TransportationCarrierName star:TransportationCarrierName 0 (1)
ReceiptNumberString star:ReceiptNumberString 0 (1)
VehicleArrivalDate star:VehicleArrivalDate 0 (1)
NotificationDate star:NotificationDate 0 (1)
NotificationReason star:NotificationReason 0 (1)
RegisteredMailReceiptNumberString star:RegisteredMailReceiptNumberString 0 (1)
MajorDamageCode star:MajorDamageCode 0 (1)
Damage star:Damage 0 unbounded
Collapse Derivation Tree:
Collapse References:
star:Transportation
