Documentation for Standards for Technology in Automotive Retail
Definition Type: Element
Name: UnitPackaging
Namespace: http://www.openapplications.org/oagis/9
Type: oagis:PackagingType
Containing Schema: Components.xsd
Abstract
Documentation:
Identifies the packaging that the company generally references the Item in.

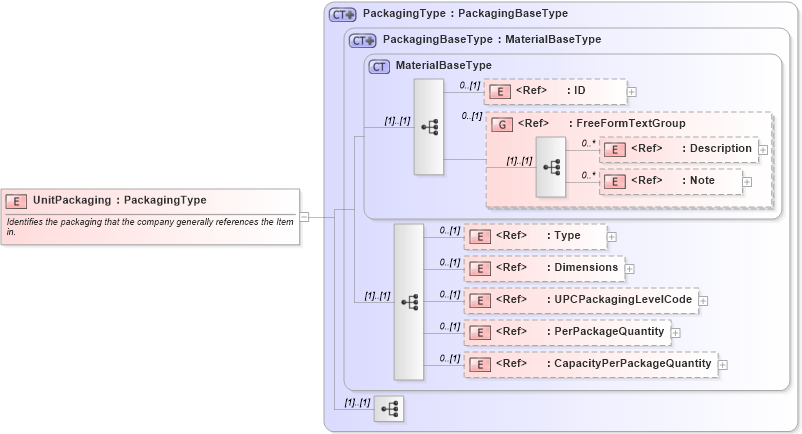

Collapse XSD Schema Diagram:
Drilldown into CapacityPerPackageQuantity in schema fields_xsd1 Drilldown into PerPackageQuantity in schema fields_xsd1 Drilldown into UPCPackagingLevelCode in schema fields_xsd1 Drilldown into Dimensions in schema components_xsd1 Drilldown into Type in schema fields_xsd1 Drilldown into Note in schema fields_xsd1 Drilldown into Description in schema fields_xsd1 Drilldown into FreeFormTextGroup in schema meta_xsd1 Drilldown into ID in schema fields_xsd1 Drilldown into MaterialBaseType in schema components_xsd1 Drilldown into PackagingBaseType in schema components_xsd1 Drilldown into PackagingType in schema components_xsd1XSD Diagram of UnitPackaging in schema components_xsd1 (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:element name="UnitPackaging" type="PackagingType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9">
            Identifies the packaging that the company generally references the Item in.
         </xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ID oagis:ID 0 (1)
Description oagis:Description 0 unbounded
Note oagis:Note 0 unbounded
Type oagis:Type 0 (1)
Dimensions oagis:Dimensions 0 (1)
UPCPackagingLevelCode oagis:UPCPackagingLevelCode 0 (1)
PerPackageQuantity oagis:PerPackageQuantity 0 (1)
CapacityPerPackageQuantity oagis:CapacityPerPackageQuantity 0 (1)
<xs:group> oagis:FreeFormTextGroup 0 (1)
Collapse Derivation Tree:
