Documentation for Standards for Technology in Automotive Retail
Definition Type: Element
Name: Update
Namespace: http://www.starstandard.org/STAR/5
Type: oagis:UpdateType
Containing Schema: Meta.xsd
Abstract
Documentation:
The Update verb is used to describe specific processing in a more fine-grained manner beyond add, change or delete processing. An example is the update of inspection information from one business application to another. The event is not adding a document, or changing fields per se, it is communicating the occurrence of an event as well as the corresponding data that accompanies the event. The OAGIS Meta Data documentation has more information in regards to this verbs usage and structure.

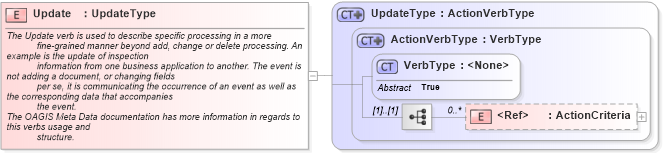

Collapse XSD Schema Diagram:
Drilldown into ActionCriteria in schema meta_xsd1 Drilldown into VerbType in schema meta_xsd1 Drilldown into ActionVerbType in schema meta_xsd1 Drilldown into UpdateType in schema meta_xsd1XSD Diagram of Update in schema meta_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:element name="Update" type="oagis:UpdateType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9.0">The Update verb is used to describe specific processing in a more
            fine-grained manner beyond add, change or delete processing. An example is the update of inspection
            information from one business application to another. The event is not adding a document, or changing fields
            per se, it is communicating the occurrence of an event as well as the corresponding data that accompanies
            the event.</xsd:documentation>
        <xsd:documentation>The OAGIS Meta Data documentation has more information in regards to this verbs usage and
            structure.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ActionCriteria oagis:ActionCriteria 0 unbounded
Collapse Derivation Tree:
