Documentation for Standards for Technology in Automotive Retail
Definition Type: ComplexType
Name: VehicleInventoryInvoiceType
Namespace: http://www.starstandard.org/STAR/5
Containing Schema: VehicleInventory.xsd
Abstract
Documentation:
.
Collapse XSD Schema Diagram:

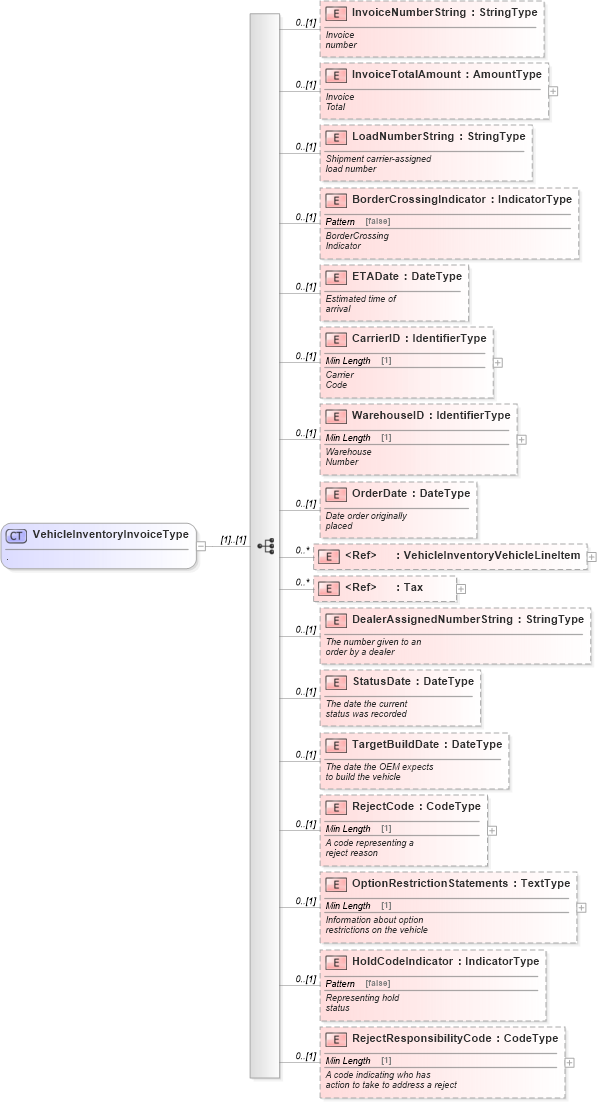

Drilldown into RejectResponsibilityCode in schema vehicleinventory_xsd Drilldown into HoldCodeIndicator in schema vehicleinventory_xsd Drilldown into OptionRestrictionStatements in schema vehicleinventory_xsd Drilldown into RejectCode in schema vehicleinventory_xsd Drilldown into TargetBuildDate in schema vehicleinventory_xsd Drilldown into StatusDate in schema vehicleinventory_xsd Drilldown into DealerAssignedNumberString in schema vehicleinventory_xsd Drilldown into Tax in schema components_xsd Drilldown into VehicleInventoryVehicleLineItem in schema vehicleinventory_xsd Drilldown into OrderDate in schema vehicleinventory_xsd Drilldown into WarehouseID in schema vehicleinventory_xsd Drilldown into CarrierID in schema vehicleinventory_xsd Drilldown into ETADate in schema vehicleinventory_xsd Drilldown into BorderCrossingIndicator in schema vehicleinventory_xsd Drilldown into LoadNumberString in schema vehicleinventory_xsd Drilldown into InvoiceTotalAmount in schema vehicleinventory_xsd Drilldown into InvoiceNumberString in schema vehicleinventory_xsdXSD Diagram of VehicleInventoryInvoiceType in schema vehicleinventory_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:complexType name="VehicleInventoryInvoiceType">
    <xsd:annotation xmlns="http://www.starstandards.org/STAR">
        <xsd:documentation source="http://www.starstandard.org/STAR/5">.</xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element name="InvoiceNumberString" type="qdt:StringType" minOccurs="0">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Invoice
            number</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="InvoiceTotalAmount" type="udt:AmountType" minOccurs="0">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Invoice
            Total</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="LoadNumberString" type="qdt:StringType" minOccurs="0">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Shipment carrier-assigned
                load number</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="BorderCrossingIndicator" type="udt:IndicatorType" minOccurs="0">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">BorderCrossing
            Indicator</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="ETADate" type="udt:DateType" minOccurs="0">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Estimated time of
            arrival</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="CarrierID" type="udt:IdentifierType" minOccurs="0">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Carrier
            Code</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="WarehouseID" type="udt:IdentifierType" minOccurs="0">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Warehouse
            Number</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="OrderDate" type="udt:DateType" minOccurs="0">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Date order originally
                placed</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="VehicleInventoryVehicleLineItem" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="Tax" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element name="DealerAssignedNumberString" type="qdt:StringType" minOccurs="0">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">The number given to an
                order by a dealer</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="StatusDate" type="udt:DateType" minOccurs="0">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">The date the current
                status was recorded</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="TargetBuildDate" type="udt:DateType" minOccurs="0">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">The date the OEM expects
                to build the vehicle</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="RejectCode" type="udt:CodeType" minOccurs="0">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">A code representing a
                reject reason</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="OptionRestrictionStatements" type="udt:TextType" minOccurs="0">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Information about option
                restrictions on the vehicle</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="HoldCodeIndicator" type="udt:IndicatorType" minOccurs="0">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Representing hold
            status</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="RejectResponsibilityCode" type="udt:CodeType" minOccurs="0">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">A code indicating who has
                action to take to address a reject</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
InvoiceNumberString star:InvoiceNumberString 0 (1)
InvoiceTotalAmount star:InvoiceTotalAmount 0 (1)
LoadNumberString star:LoadNumberString 0 (1)
BorderCrossingIndicator star:BorderCrossingIndicator 0 (1)
ETADate star:ETADate 0 (1)
CarrierID star:CarrierID 0 (1)
WarehouseID star:WarehouseID 0 (1)
OrderDate star:OrderDate 0 (1)
VehicleInventoryVehicleLineItem star:VehicleInventoryVehicleLineItem 0 unbounded
Tax star:Tax 0 unbounded
DealerAssignedNumberString star:DealerAssignedNumberString 0 (1)
StatusDate star:StatusDate 0 (1)
TargetBuildDate star:TargetBuildDate 0 (1)
RejectCode star:RejectCode 0 (1)
OptionRestrictionStatements star:OptionRestrictionStatements 0 (1)
HoldCodeIndicator star:HoldCodeIndicator 0 (1)
RejectResponsibilityCode star:RejectResponsibilityCode 0 (1)
Collapse Derivation Tree:
Collapse References:
star:Invoice, star:VehicleInventoryInvoice
