Documentation for Standards for Technology in Automotive Retail
Definition Type: Element
Name: VehicleOrderHeader
Namespace: http://www.starstandard.org/STAR/5
Type: star:VehicleOrderHeaderType
Containing Schema: VehicleOrder.xsd
Abstract
Documentation:
Vehicle Order Header

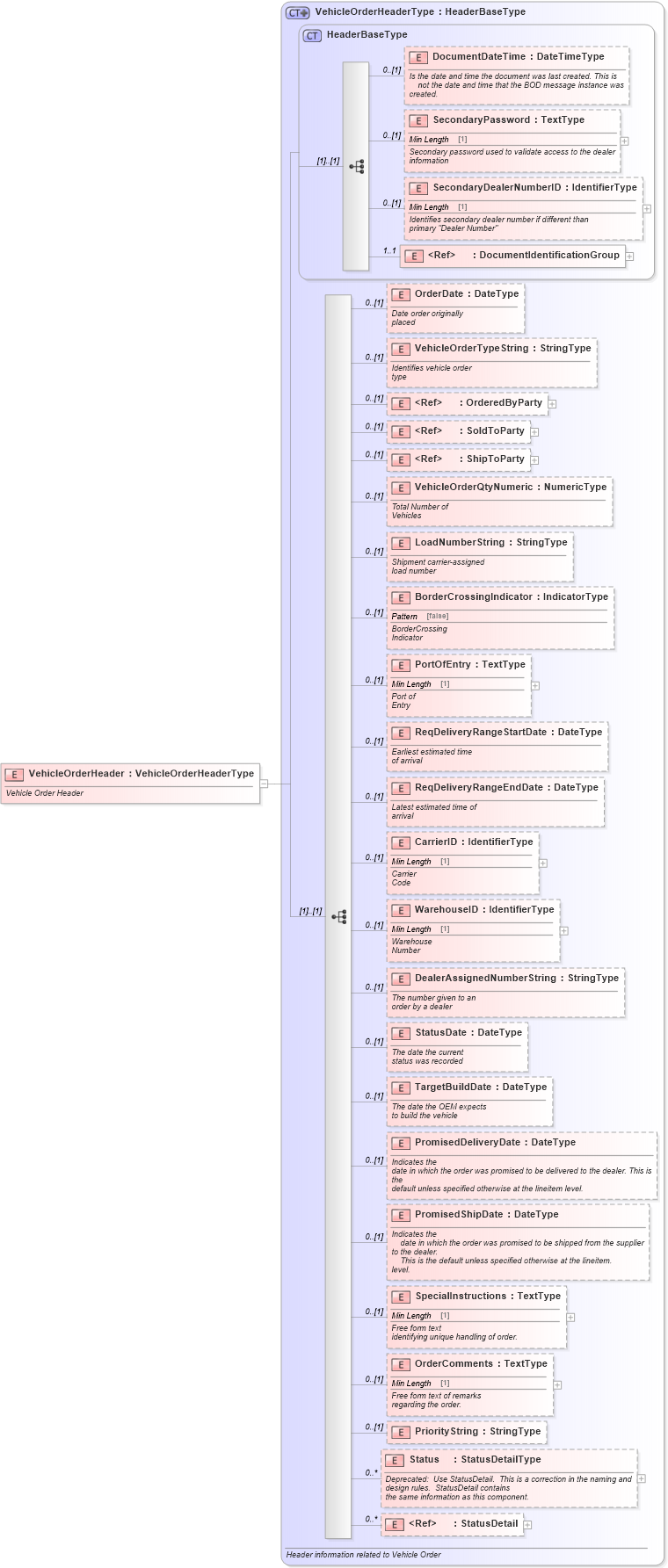

Collapse XSD Schema Diagram:
Drilldown into StatusDetail in schema components_xsd Drilldown into Status in schema vehicleorder_xsd Drilldown into PriorityString in schema vehicleorder_xsd Drilldown into OrderComments in schema vehicleorder_xsd Drilldown into SpecialInstructions in schema vehicleorder_xsd Drilldown into PromisedShipDate in schema vehicleorder_xsd Drilldown into PromisedDeliveryDate in schema vehicleorder_xsd Drilldown into TargetBuildDate in schema vehicleorder_xsd Drilldown into StatusDate in schema vehicleorder_xsd Drilldown into DealerAssignedNumberString in schema vehicleorder_xsd Drilldown into WarehouseID in schema vehicleorder_xsd Drilldown into CarrierID in schema vehicleorder_xsd Drilldown into ReqDeliveryRangeEndDate in schema vehicleorder_xsd Drilldown into ReqDeliveryRangeStartDate in schema vehicleorder_xsd Drilldown into PortOfEntry in schema vehicleorder_xsd Drilldown into BorderCrossingIndicator in schema vehicleorder_xsd Drilldown into LoadNumberString in schema vehicleorder_xsd Drilldown into VehicleOrderQtyNumeric in schema vehicleorder_xsd Drilldown into ShipToParty in schema components_xsd Drilldown into SoldToParty in schema components_xsd Drilldown into OrderedByParty in schema components_xsd Drilldown into VehicleOrderTypeString in schema vehicleorder_xsd Drilldown into OrderDate in schema vehicleorder_xsd Drilldown into DocumentIdentificationGroup in schema components_xsd Drilldown into SecondaryDealerNumberID in schema components_xsd Drilldown into SecondaryPassword in schema components_xsd Drilldown into DocumentDateTime in schema components_xsd Drilldown into HeaderBaseType in schema components_xsd Drilldown into VehicleOrderHeaderType in schema vehicleorder_xsdXSD Diagram of VehicleOrderHeader in schema vehicleorder_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:element name="VehicleOrderHeader" type="VehicleOrderHeaderType">
    <xsd:annotation>
        <xsd:documentation source="http://www.starstandard.org/STAR/5">
                Vehicle Order Header
            </xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DocumentDateTime star:DocumentDateTime 0 (1)
SecondaryPassword star:SecondaryPassword 0 (1)
SecondaryDealerNumberID star:SecondaryDealerNumberID 0 (1)
DocumentIdentificationGroup star:DocumentIdentificationGroup 1 1
OrderDate star:OrderDate 0 (1)
VehicleOrderTypeString star:VehicleOrderTypeString 0 (1)
OrderedByParty star:OrderedByParty 0 (1)
SoldToParty star:SoldToParty 0 (1)
ShipToParty star:ShipToParty 0 (1)
VehicleOrderQtyNumeric star:VehicleOrderQtyNumeric 0 (1)
LoadNumberString star:LoadNumberString 0 (1)
BorderCrossingIndicator star:BorderCrossingIndicator 0 (1)
PortOfEntry star:PortOfEntry 0 (1)
ReqDeliveryRangeStartDate star:ReqDeliveryRangeStartDate 0 (1)
ReqDeliveryRangeEndDate star:ReqDeliveryRangeEndDate 0 (1)
CarrierID star:CarrierID 0 (1)
WarehouseID star:WarehouseID 0 (1)
DealerAssignedNumberString star:DealerAssignedNumberString 0 (1)
StatusDate star:StatusDate 0 (1)
TargetBuildDate star:TargetBuildDate 0 (1)
PromisedDeliveryDate star:PromisedDeliveryDate 0 (1)
PromisedShipDate star:PromisedShipDate 0 (1)
SpecialInstructions star:SpecialInstructions 0 (1)
OrderComments star:OrderComments 0 (1)
PriorityString star:PriorityString 0 (1)
Status star:Status 0 unbounded
StatusDetail star:StatusDetail 0 unbounded
Collapse Derivation Tree:
