Documentation for Standards for Technology in Automotive Retail
Definition Type: ComplexType
Name: VehicleRemarketingType
Namespace: http://www.starstandard.org/STAR/5
Containing Schema: VehicleRemarketing.xsd
Abstract
Documentation:
STAR Version 2.0 - Draft STAR Version 1.0, STAR approved 04/20/2005; OAGI approved 03/03/2005; effective date 07/04/2005

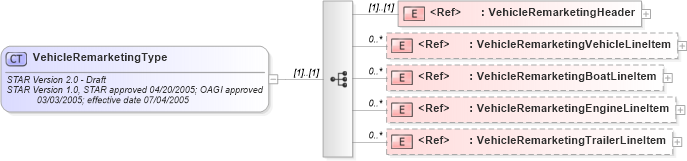

Collapse XSD Schema Diagram:
Drilldown into VehicleRemarketingTrailerLineItem in schema vehicleremarketing_xsd Drilldown into VehicleRemarketingEngineLineItem in schema vehicleremarketing_xsd Drilldown into VehicleRemarketingBoatLineItem in schema vehicleremarketing_xsd Drilldown into VehicleRemarketingVehicleLineItem in schema vehicleremarketing_xsd Drilldown into VehicleRemarketingHeader in schema vehicleremarketing_xsdXSD Diagram of VehicleRemarketingType in schema vehicleremarketing_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:complexType name="VehicleRemarketingType">
    <xsd:annotation xmlns="http://www.starstandards.org/STAR">
        <xsd:documentation source="http://www.starstandard.org/STAR/5">STAR Version 2.0 - Draft</xsd:documentation>
        <xsd:documentation source="http://www.starstandard.org/STAR/5">STAR Version 1.0, STAR approved 04/20/2005; OAGI approved
            03/03/2005; effective date 07/04/2005</xsd:documentation>
        <xsd:appinfo>STAR unique Noun - Created Rev 2.1 PS 09/30/2004</xsd:appinfo>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element ref="VehicleRemarketingHeader" />
        <xsd:element ref="VehicleRemarketingVehicleLineItem" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="VehicleRemarketingBoatLineItem" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="VehicleRemarketingEngineLineItem" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="VehicleRemarketingTrailerLineItem" minOccurs="0" maxOccurs="unbounded" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
VehicleRemarketingHeader star:VehicleRemarketingHeader (1) (1)
VehicleRemarketingVehicleLineItem star:VehicleRemarketingVehicleLineItem 0 unbounded
VehicleRemarketingBoatLineItem star:VehicleRemarketingBoatLineItem 0 unbounded
VehicleRemarketingEngineLineItem star:VehicleRemarketingEngineLineItem 0 unbounded
VehicleRemarketingTrailerLineItem star:VehicleRemarketingTrailerLineItem 0 unbounded
Collapse Derivation Tree:
Collapse References:
star:VehicleRemarketing
