Documentation for Standards for Technology in Automotive Retail
Definition Type: Element
Name: VehicleSegmentCode
Namespace: http://www.starstandard.org/STAR/5
Type: udt:CodeType
Containing Schema: SalesLead.xsd
MinOccurs 0
MaxOccurs 1
Abstract
Documentation:
The industry clasification of the vehicle such as Small, Luxury, Midsize Vehicle, etc. This is a level of detail above Vehicle Class which would further differentiate types of Small Vehicles, Luxury Vehicles, etc.

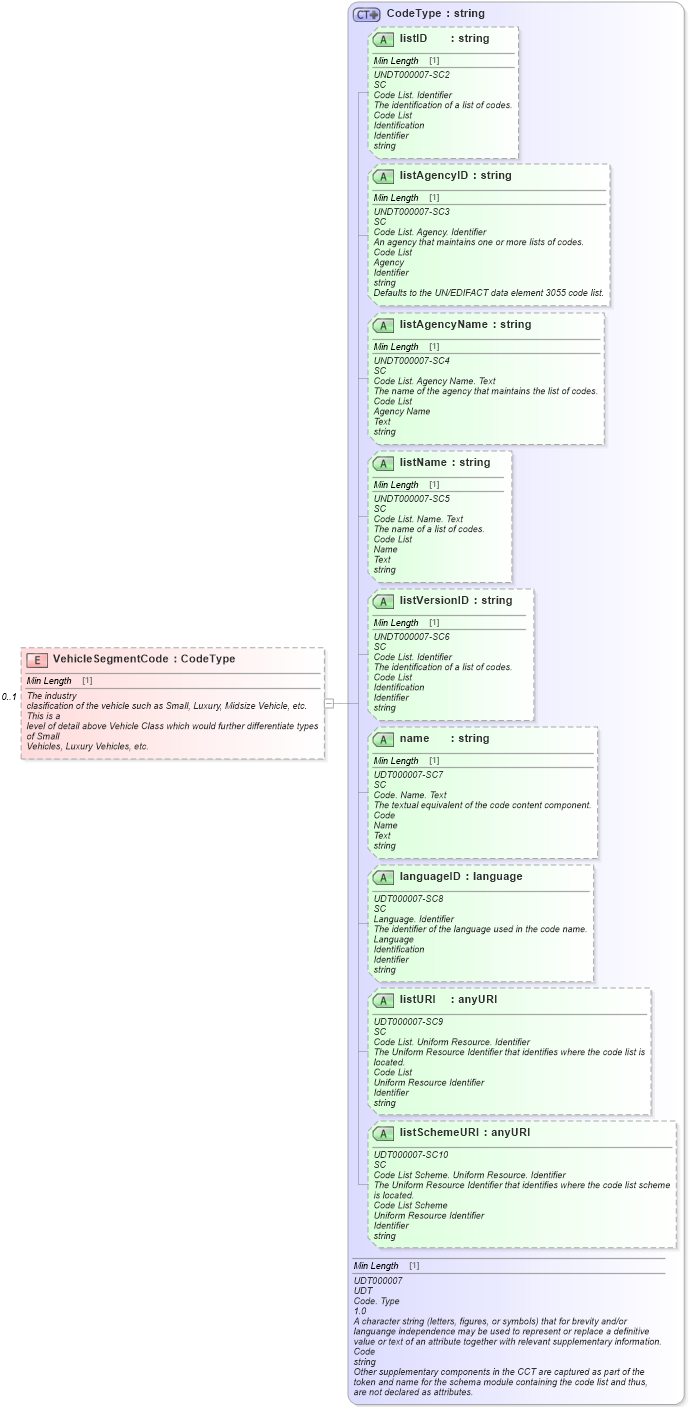

Collapse XSD Schema Diagram:
Drilldown into listSchemeURI in schema unqualifieddatatypes_xsd Drilldown into listURI in schema unqualifieddatatypes_xsd Drilldown into languageID in schema unqualifieddatatypes_xsd Drilldown into name in schema unqualifieddatatypes_xsd Drilldown into listVersionID in schema unqualifieddatatypes_xsd Drilldown into listName in schema unqualifieddatatypes_xsd Drilldown into listAgencyName in schema unqualifieddatatypes_xsd Drilldown into listAgencyID in schema unqualifieddatatypes_xsd Drilldown into listID in schema unqualifieddatatypes_xsd Drilldown into CodeType in schema unqualifieddatatypes_xsdXSD Diagram of VehicleSegmentCode in schema saleslead_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:element name="VehicleSegmentCode" type="udt:CodeType" minOccurs="0" maxOccurs="1">
    <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
        <xsd:documentation source="http://www.starstandard.org/STAR/5">The industry
                clasification of the vehicle such as Small, Luxury, Midsize Vehicle, etc. This is a
                level of detail above Vehicle Class which would further differentiate types of Small
                Vehicles, Luxury Vehicles, etc.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Attributes:
Name Type Default Value Use
listID udt:listID Optional
listAgencyID udt:listAgencyID Optional
listAgencyName udt:listAgencyName Optional
listName udt:listName Optional
listVersionID udt:listVersionID Optional
name udt:name Optional
languageID udt:languageID Optional
listURI udt:listURI Optional
listSchemeURI udt:listSchemeURI Optional
Collapse Derivation Tree:
