Documentation for Standards for Technology in Automotive Retail
Definition Type: ComplexType
Name: VehicleSpecificationsHeaderType
Namespace: http://www.starstandard.org/STAR/5
Type: star:HeaderBaseType
Containing Schema: VehicleSpecifications.xsd
Abstract
Documentation:
Header information related to Vehicle Specifications

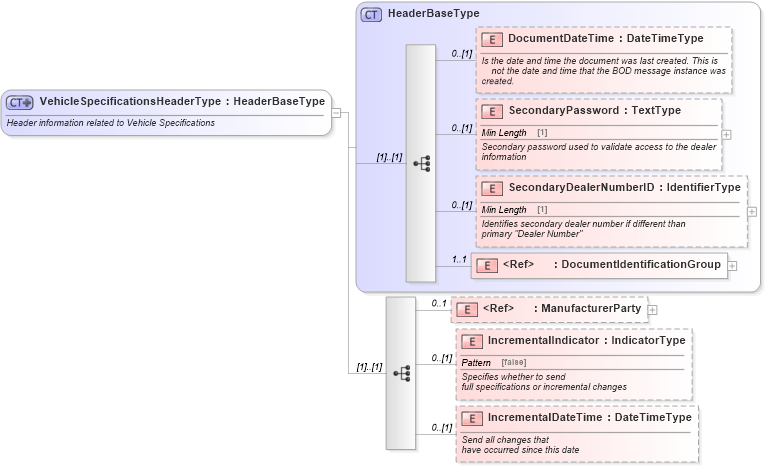

Collapse XSD Schema Diagram:
Drilldown into IncrementalDateTime in schema vehiclespecifications_xsd Drilldown into IncrementalIndicator in schema vehiclespecifications_xsd Drilldown into ManufacturerParty in schema components_xsd Drilldown into DocumentIdentificationGroup in schema components_xsd Drilldown into SecondaryDealerNumberID in schema components_xsd Drilldown into SecondaryPassword in schema components_xsd Drilldown into DocumentDateTime in schema components_xsd Drilldown into HeaderBaseType in schema components_xsdXSD Diagram of VehicleSpecificationsHeaderType in schema vehiclespecifications_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:complexType name="VehicleSpecificationsHeaderType">
    <xsd:annotation xmlns="http://www.starstandards.org/STAR">
        <xsd:documentation source="http://www.starstandard.org/STAR/5">Header information related to Vehicle Specifications</xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="HeaderBaseType">
            <xsd:sequence>
                <xsd:element ref="ManufacturerParty" minOccurs="0" maxOccurs="1" />
                <xsd:element name="IncrementalIndicator" type="udt:IndicatorType" minOccurs="0">
                    <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">Specifies whether to send
                full specifications or incremental changes</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="IncrementalDateTime" type="udt:DateTimeType" minOccurs="0">
                    <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">Send all changes that
                have occurred since this date</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DocumentDateTime star:DocumentDateTime 0 (1)
SecondaryPassword star:SecondaryPassword 0 (1)
SecondaryDealerNumberID star:SecondaryDealerNumberID 0 (1)
DocumentIdentificationGroup star:DocumentIdentificationGroup 1 1
ManufacturerParty star:ManufacturerParty 0 1
IncrementalIndicator star:IncrementalIndicator 0 (1)
IncrementalDateTime star:IncrementalDateTime 0 (1)
Collapse Derivation Tree:
Collapse References:
star:VehicleSpecificationsHeader
